Kramer VP-551X Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VP-551X 4K Presentation Matrix Switcher/Scaler
IR remote control transmitter with batteries
Step 2: Get to know your VP-551X
# Feature
1 IR Receiver
2 IR LED
3 Input Selector HDMI™
Buttons
4 PC
5 CV
6 FREEZE Button
7 MUTE Button
8 MENU Button
9 Navigation

Buttons



ENTER
10 RESET TO XGA/1080p
Button
11 PANEL LOCK Button
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VP-551X Quick Start

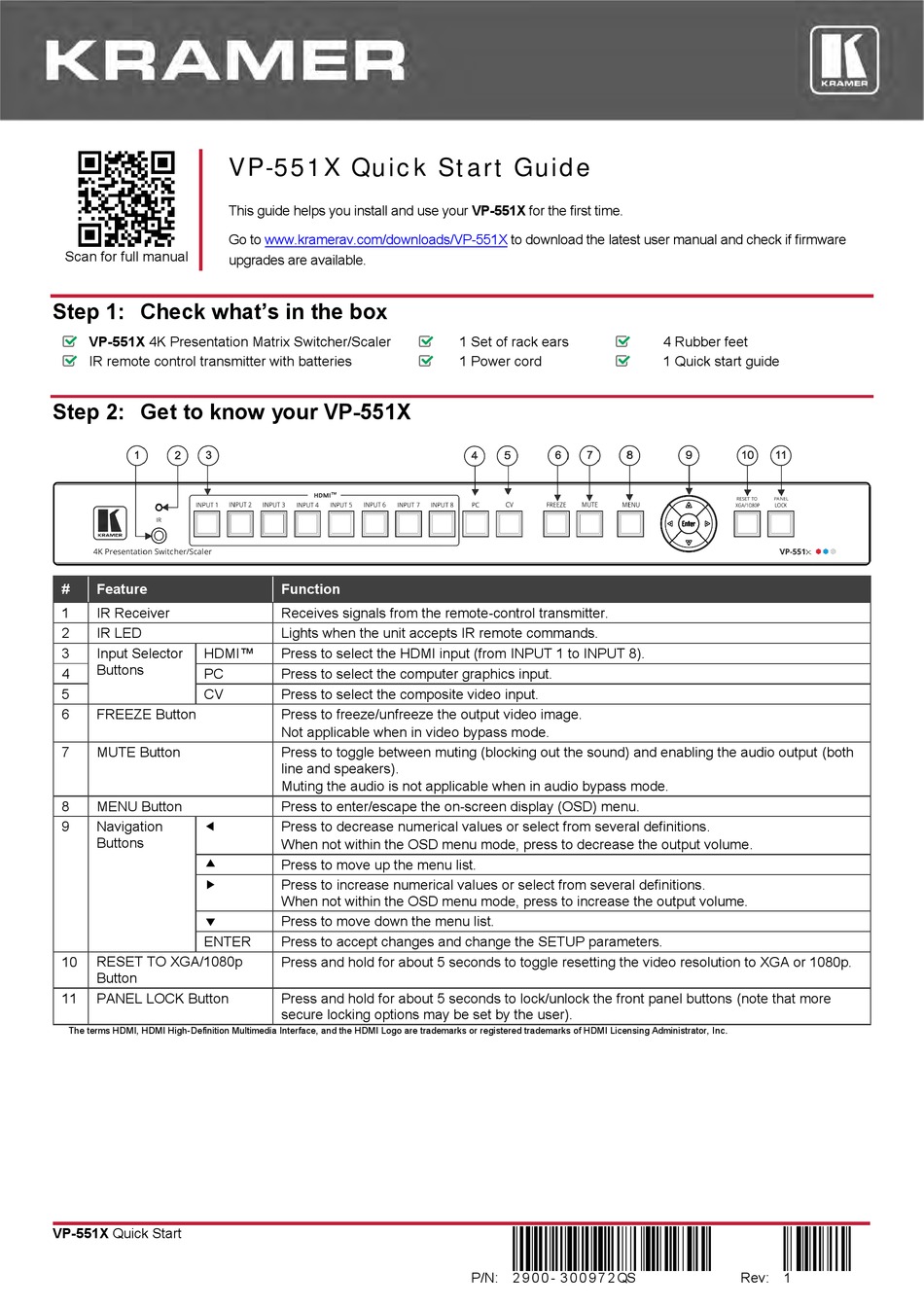

VP-551X Quick Start Guide
This guide helps you install and use your VP-551X for the first time.
Go to www.kramerav.com/downloads/VP-551X
upgrades are available.
Function
Receives signals from the remote-control transmitter.
Lights when the unit accepts IR remote commands.
Press to select the HDMI input (from INPUT 1 to INPUT 8).
Press to select the computer graphics input.
Press to select the composite video input.
Press to freeze/unfreeze the output video image.
Not applicable when in video bypass mode.
Press to toggle between muting (blocking out the sound) and enabling the audio output (both
line and speakers).
Muting the audio is not applicable when in audio bypass mode.
Press to enter/escape the on-screen display (OSD) menu.
Press to decrease numerical values or select from several definitions.
When not within the OSD menu mode, press to decrease the output volume.
Press to move up the menu list.
Press to increase numerical values or select from several definitions.
When not within the OSD menu mode, press to increase the output volume.
Press to move down the menu list.
Press to accept changes and change the SETUP parameters.
Press and hold for about 5 seconds to toggle resetting the video resolution to XGA or 1080p.
Press and hold for about 5 seconds to lock/unlock the front panel buttons (note that more
secure locking options may be set by the user).
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N: 2 9 0 0 - 3 0 0 9 7 2 QS
4 Rubber feet
1 Quick start guide
Rev: 1
