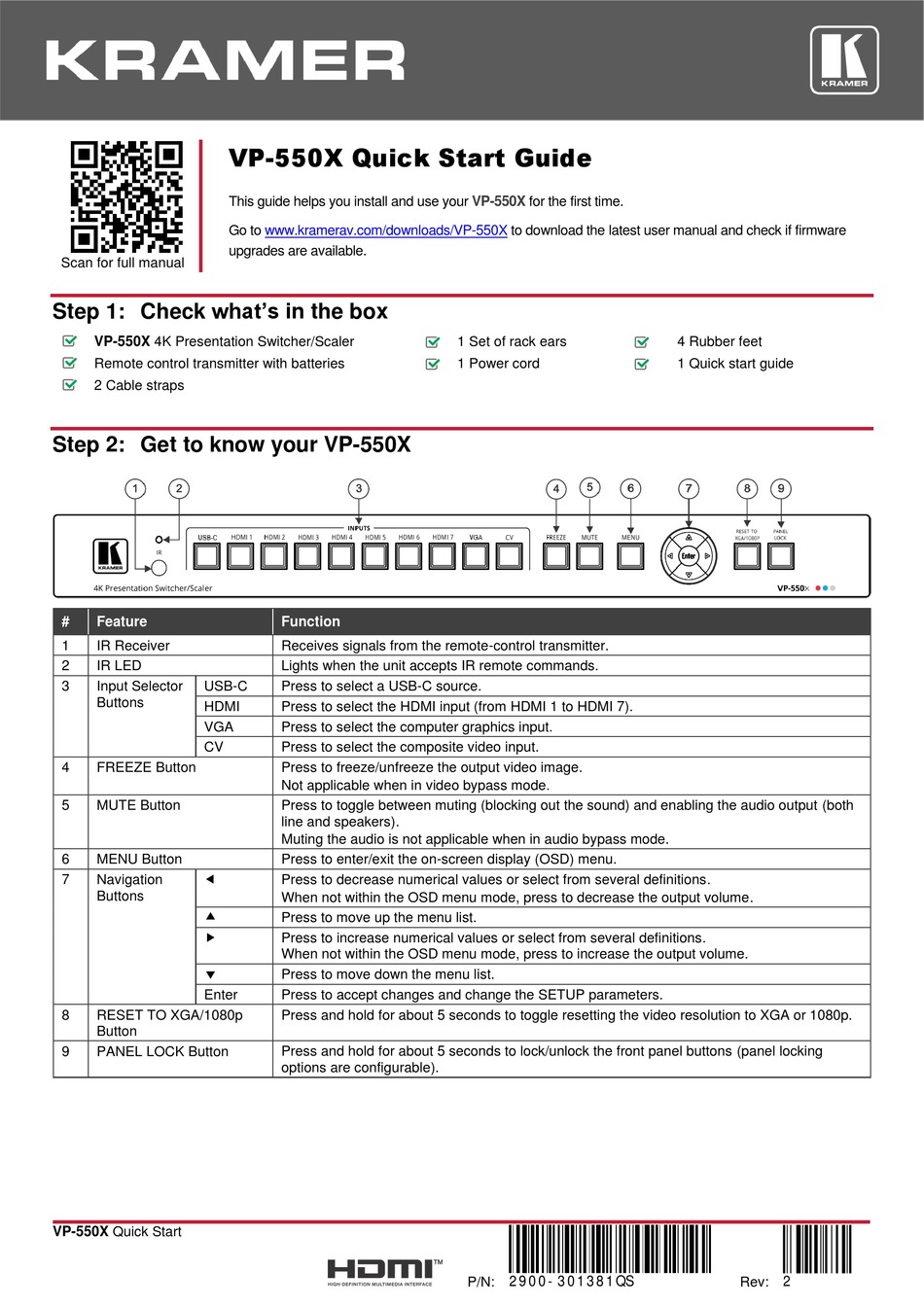

Kramer VP-550X Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VP-550X 4K Presentation Switcher/Scaler
Remote control transmitter with batteries
2 Cable straps

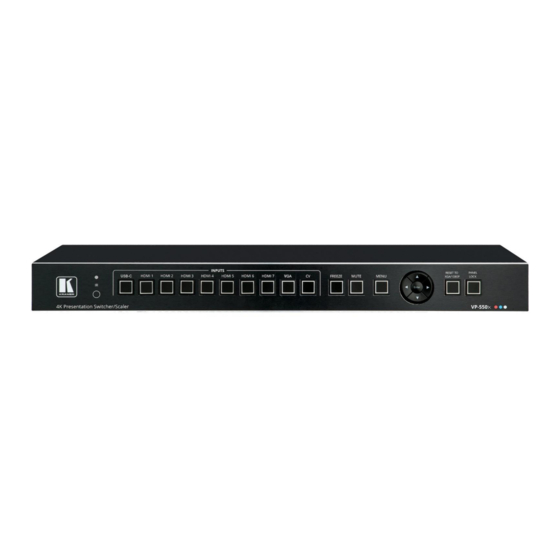

Step 2: Get to know your VP-550X
# Feature
1 IR Receiver
2 IR LED
3 Input Selector USB-C
Buttons
HDMI
VGA
CV
4 FREEZE Button
5 MUTE Button
6 MENU Button

7 Navigation
Buttons



Enter
8 RESET TO XGA/1080p
Button
9 PANEL LOCK Button
VP-550X Quick Start
VP-550X Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VP-550X
upgrades are available.
Function
Receives signals from the remote-control transmitter.
Lights when the unit accepts IR remote commands.
Press to select a USB-C source.
Press to select the HDMI input (from HDMI 1 to HDMI 7).
Press to select the computer graphics input.
Press to select the composite video input.
Press to freeze/unfreeze the output video image.
Not applicable when in video bypass mode.
Press to toggle between muting (blocking out the sound) and enabling the audio output (both
line and speakers).
Muting the audio is not applicable when in audio bypass mode.
Press to enter/exit the on-screen display (OSD) menu.
Press to decrease numerical values or select from several definitions.
When not within the OSD menu mode, press to decrease the output volume.
Press to move up the menu list.
Press to increase numerical values or select from several definitions.
When not within the OSD menu mode, press to increase the output volume.
Press to move down the menu list.
Press to accept changes and change the SETUP parameters.
Press and hold for about 5 seconds to toggle resetting the video resolution to XGA or 1080p.
Press and hold for about 5 seconds to lock/unlock the front panel buttons (panel locking
options are configurable).
VP-550X for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N: 2 9 0 0 - 3 0 1 3 8 1 QS
4 Rubber feet
1 Quick start guide
Rev: 2
