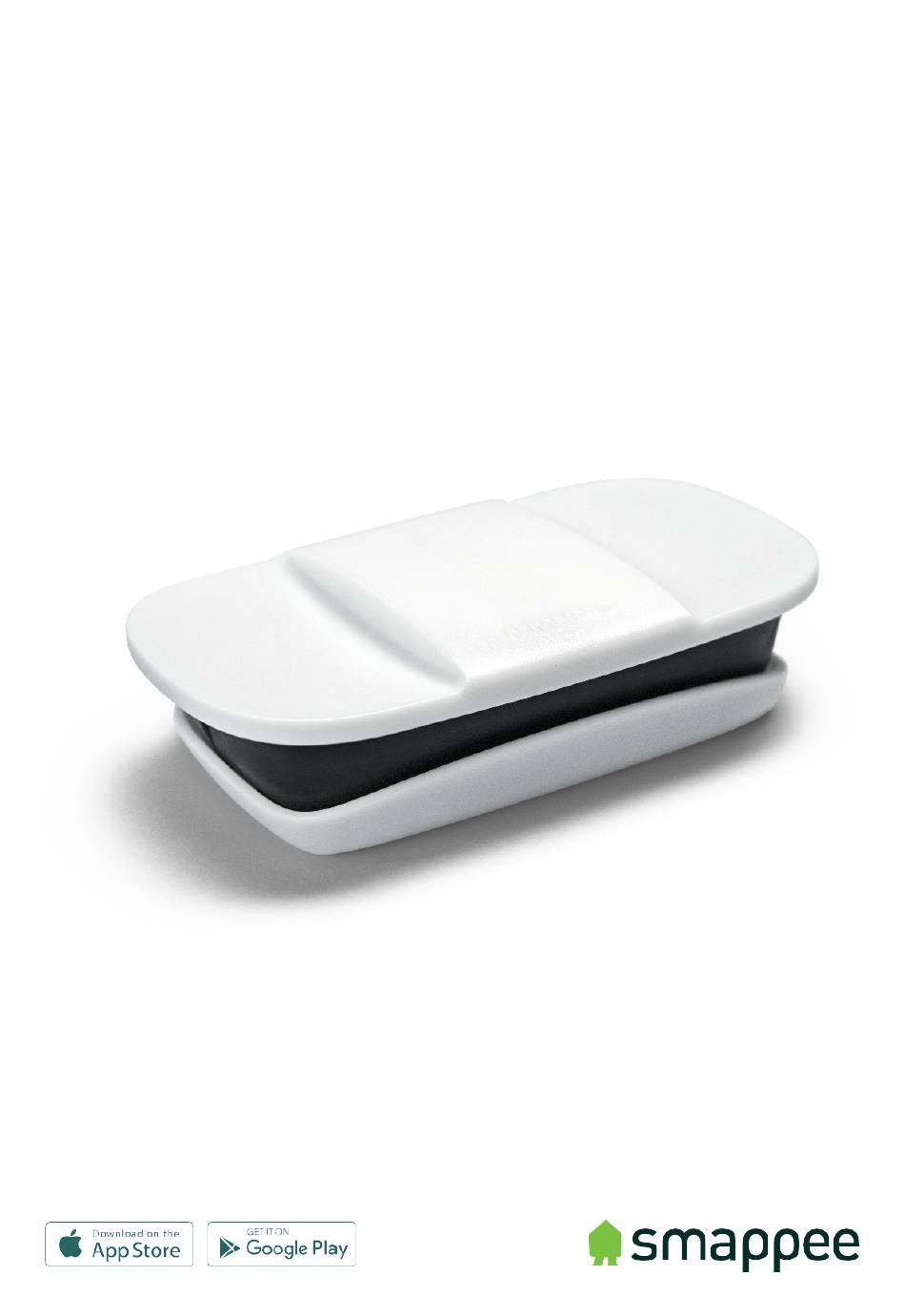

- Page 1 Smappee Energy Installation manual English – Version 1.0 – April 2020...
-
Page 2: Table Of Contents
3. Physical installation 4. Cloud connection and setup 5. Validation of the installation 6. Three-phase voltage and current mapping Addendum 1 – Colour code explanation Addendum 2 – Wi-Fi connection properties and firewall rules Smappee Energy – Installation manual - English... -
Page 3: Safety Instructions
Do not expose the product to heat, flame, or extreme cold. • Do not connect the product to voltages higher than 240 V. • Power off the electrical installation before proceeding with the physical installation. Smappee Energy – Installation manual - English... - Page 4 Explanation of the safety symbols Class II equipment does not require an earth connection. Support If you have any questions, please contact your local distributor. Smappee Energy – Installation manual - English...
-
Page 5: How To Install
Cloud connection and setup: The creation of a location, its properties, and the loads to be measured. Validation of the installation: Checking the accuracy of live power values. This procedure is done with the Smappee Energy Monitor mobile app. Smappee Energy – Installation manual - English... -
Page 6: Physical Installation
Connect the supplied power cord to the monitor and plug the power cord in the nearby wall socket to power on the Smappee monitor. Proceed in the Smappee Energy Monitor mobile app and follow the steps as shown. Smappee Energy – Installation manual - English... - Page 7 Make sure there’s a stable Wi-Fi connection at the location of installation. Smappee Energy is only compatible with 2.4 GHz Wi-Fi networks. Make sure the Wi-Fi network is online when powering on the Smappee monitor. The arrow indicated on the CT (K > L) must point in the...
- Page 8 Connection diagram – 1P (1 * 230 V) Brown – L1 Blue – Neutral Connect the CTs to the Smappee Energy: Input 1: Consumption • Input 2: Solar • Input 3: Do not use • Use a digital multimeter to determine the phase wire of the solar inverter.
- Page 9 WARNING: For a three-phase installation it is mandatory to setup the voltage and current mapping in the Expert Portal (see next pages). Incorrect line voltage and current mapping may result in incorrect reporting of the power values and monitored data. Smappee Energy – Installation manual - English...
- Page 10 WARNING: For a three-phase installation it is mandatory to setup the voltage and current mapping in the Expert Portal (see next pages). Incorrect line voltage and current mapping may result in incorrect reporting of the power values and monitored data. Smappee Energy – Installation manual - English...
-
Page 11: Cloud Connection And Setup
4. Cloud connection and setup This procedure is done with the Smappee Energy Monitor mobile app. The first step is creating a location and defining the measured loads and their properties. • Log in to the Smappee App with the corresponding Smappee username or create a new account. -
Page 12: Validation Of The Installation
You should check that all CTs are operational and measuring the correct power values. To check the correct operation of the Smappee Energy, Smappee provides real-time values of the measured loads. You can access these real-time values with the mobile app. -
Page 13: Three-Phase Voltage And Current Mapping
This procedure describes how to validate and adjust phase mapping for three-phase installations. This procedure is mandatory for three-phase installations. Open the Smappee App, go to Settings > Your Smappee Monitors > Expert Portal and type the website link (http://<IP-address>/Smappee.html) in your internet browser on your laptop or pc. - Page 14 E.g. This phase mapping Three active power values are positive. • seems to be correct. All three Cos Fi are higher than 80 % • This is the best E.g. possible configuration. Smappee Energy – Installation manual - English...
- Page 15 Activate a high consuming appliance of which you know the power • consumption. E.g. vacuum cleaner or coffee machine. Verify the power increase in the yellow bubble in the Smappee App. If this is not • correct, the phase mapping is incorrect.
-
Page 16: Addendum 1 - Colour Code Explanation
Monitor to reconfigure the Wi-Fi settings. The monitor is trying to open a Wi-Fi hotspot access point. Yellow Flashing Please wait a few seconds. The light will turn to a steady yellow in a few moments. Smappee Energy – Installation manual - English... -
Page 17: Addendum 2 - Wi-Fi Connection Properties And Firewall Rules
• Allowed special characters for the Wi-Fi password: #$%@?/ \ • MAC filtering must not be active on the router • Your firewall should allow Smappee to create outbound secure HTTP connections • The maximum number of characters for the WPA2/PSK is 20.
