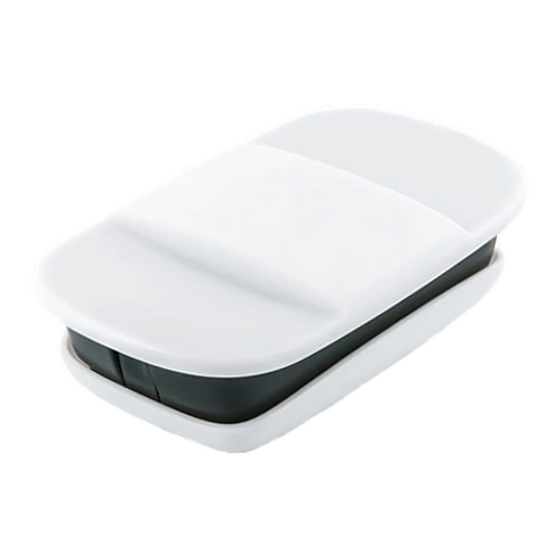

Smappee (Solar) Energy Monitor
Installation Manual
English
Version: 2.2, as of 20/2/2017
© 2013-2017 Smappee NV. All rights reserved.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Energy Monitor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Smappee Energy Monitor

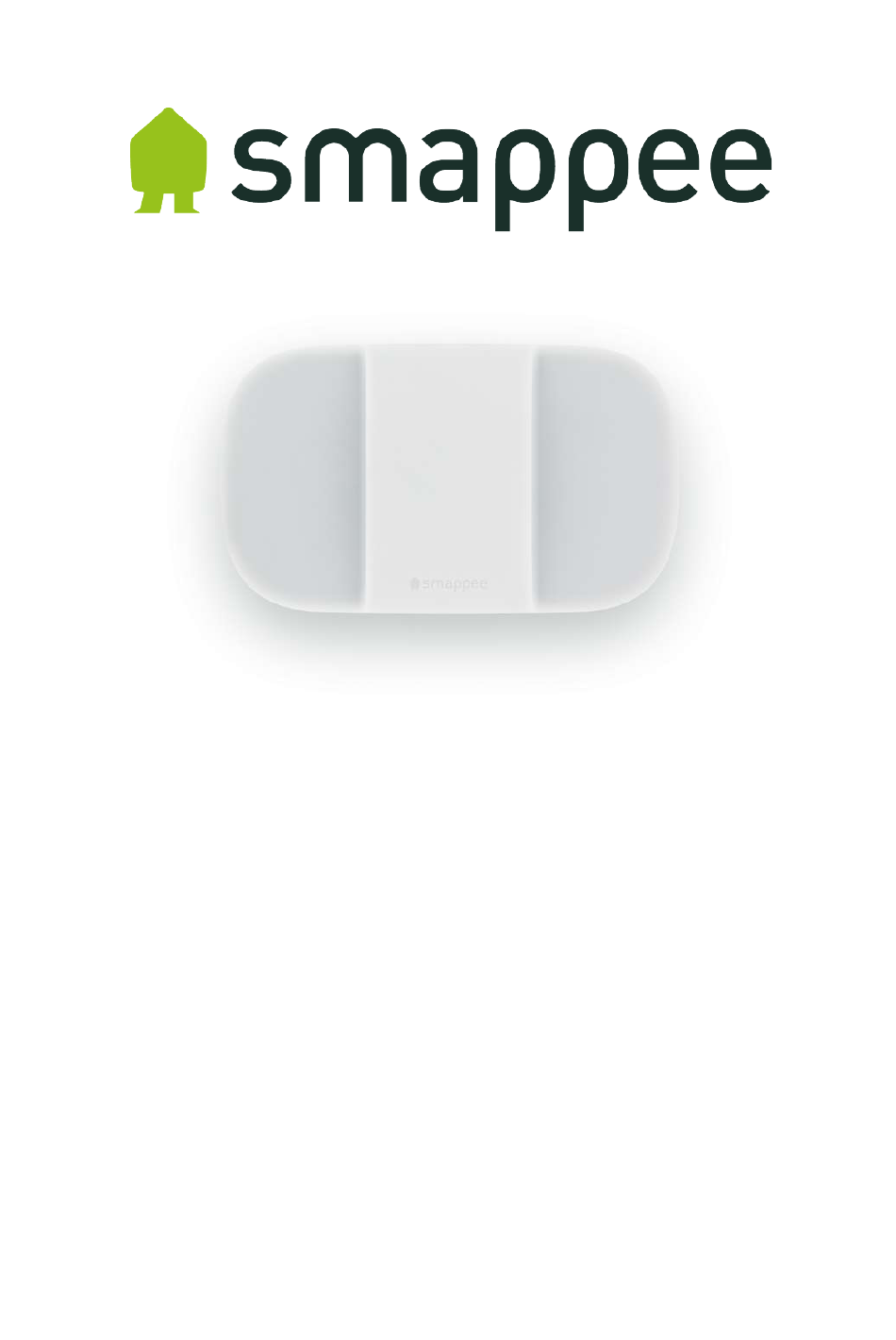

  • Page 1 Smappee (Solar) Energy Monitor Installation Manual English Version: 2.2, as of 20/2/2017 © 2013-2017 Smappee NV. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
  • Page 2: Table Of Contents

    Safety instructions ........................5 Connect Smappee to your Wi-Fi ....................6 Understand the Electrical Network of your Home ..............7 Connect Smappee to your Fuse Box ................... 9 Single Phase Installation Without Solar ................11 Single Phase Installation With Solar ..................14 Three Phase Installation Without Solar ................
  • Page 3: A Word From Our Ceo

    Smappee will soon become part of your life. You will automatically become more conscious of how you use energy, which will contribute to a better environment for us all. Not only for us, but also for the following generations! And that might just be the biggest benefit of all.
  • Page 4: Before You Start

    Smappee cloud and the App. Then, the Smappee monitor is installed near to the fuse box. The sensors (current clamps) are connected to particular wires in or near the fuse box, so that Smappee can measure the energy consumption of your home.
  • Page 5: Safety Instructions

    Relative humidity: 0-80% 5°C to 40°C • Sealing IP 20. • Work altitude: 0 to 2.000 meters • EMC: EN 55022 (Class B) • Overvoltage category: 300 V/CAT II • ~110-240V 50/60Hz Max 5W • (Solar) Energy Monitor Installation Manual Page 5 of 36...
  • Page 6: Connect Smappee To Your Wi-Fi

    This section shows how to connect the Smappee to your Wi-Fi network. Keep your Wi-Fi password secure Security is important for Smappee. Therefore, the Smappee app securely transfers the password of your Wi-Fi network to the Smappee Energy monitor, so that it can connect to your Wi-Fi network How it works A new Smappee Energy monitor opens a temporary ad-hoc Wi-Fi network.
  • Page 7: Understand The Electrical Network Of Your Home

    Occasionally found in Denmark and Belgium only Split phase US Most common type in the US and Canada. If you are still unsure, please see the additional information on the next page. (Solar) Energy Monitor Installation Manual Page 7 of 36...
  • Page 8 (1 phase + 1 neutral) 3 phase 4 cables ("STAR") (3 phase cables + 1 neutral) 3 phase delta 3 cables (3 phase cables, NO neutral) Split Phase 2 cables (2 phase cables) (Solar) Energy Monitor Installation Manual Page 8 of 36...
  • Page 9: Connect Smappee To Your Fuse Box

    This chapter describes how to connect the Smappee monitor to your fuse box. Remember! Before you can connect the Smappee monitor to the fuse box you must first connect it to your Wi-Fi network as described in the previous chapters.
  • Page 10 With or without Solar Split phase (US, Canada) No Solar Split phase (US, Canada) With Solar If you are not sure of the installation type of your home, please refer to page 7. (Solar) Energy Monitor Installation Manual Page 10 of 36...
  • Page 11: Single Phase Installation Without Solar

    L ß K in the clamp. The arrow shows the direction of the energy flow. Make sure that L points in the direction of the appliances (energy users) and K in the direction of the electricity meter. (Solar) Energy Monitor Installation Manual Page 11 of 36...
  • Page 12 Important! Plug the ends of the current clamp cable into input 1 of the Smappee monitor Now close the fusebox (be carefull not to jam the cable) and turn the power back on.
  • Page 13 Plug the power cord for the monitor into the wall socket and wait until the monitor shows a green heartbeat. You can now get started with the Smappee app. (Solar) Energy Monitor Installation Manual Page 13 of 36...
  • Page 14: Single Phase Installation With Solar

    L ß K in the clamp. The arrow shows the direction of the energy flow. Make sure that L points in the direction of the appliances (energy users) and K in the direction of the electricity meter. (Solar) Energy Monitor Installation Manual Page 14 of 36...
  • Page 15 V-cable and plug the other end of the V- cable in input 1 of the Smappee. Please respect the polarity of the plug! Now locate the solar inverter and check the wires running to your fuse box. You’ll see 1 phase wire which is usually black, brown or grey.
  • Page 16 Now, plug the cable of the current clamp in to the leg marked “solar” of the V-cable already connected to input 1 of the Smappee. Again, please respect the polarity of the plug! Now close the fusebox (be carefull not to jam the cable) and turn the power back on.
  • Page 17 Plug the power cord for the monitor into the wall socket and wait until the monitor shows a green heartbeat. You can now get started with the Smappee app. (Solar) Energy Monitor Installation Manual Page 17 of 36...
  • Page 18: Three Phase Installation Without Solar

    (neutral wire) and any green/yellow wires (Grounding). The remaining wires are called the phase wires. They’re usually grey, brown or black. In some installations other colours can be used for the phase wire. (Solar) Energy Monitor Installation Manual Page 18 of 36...
  • Page 19 Important! Plug the ends of the current clamp cables into input 1, 2 and 3 of the Smappee monitor. Now close the fusebox (be carefull not to jam the cable) and turn the power back...
  • Page 20 Plug the power cord for the monitor into the wall socket and wait until the monitor shows a green heartbeat. You can now get started with the Smappee app. (Solar) Energy Monitor Installation Manual Page 20 of 36...
  • Page 21: Three Phase Installation With Solar

    (neutral wire) and any green/yellow wires (Grounding). The 3 wires are called phase wires. They’re usually grey, brown or black. In some installations other colours can be used for the phase wire. (Solar) Energy Monitor Installation Manual Page 21 of 36...
  • Page 22 Important! Now locate the solar inverter and check the wires running to your fuse box. In most cases you’ll see 3 phase wire which are usually black, brown or grey. (Solar) Energy Monitor Installation Manual Page 22 of 36...
  • Page 23 Make sure that you properly close the clamp by pressing your thumb on the side until you hear a click. Important! (Solar) Energy Monitor Installation Manual Page 23 of 36...
  • Page 24 If there are only 1 or 2 phase wires running from your solar inverter to your fuse box then you only need to install 1 or 2 current clamps. In that case you will have some CT clamps left over. (Solar) Energy Monitor Installation Manual Page 24 of 36...
  • Page 25 Plug the cable marked C1 into the unmarked leg of a V-cable and the cable marked S1 into the leg marked solar. Please respect the polarity of the plugs! Plug the other end of the V-cable into input 1 of the Smappee. (Solar) Energy Monitor Installation Manual...
  • Page 26 S3. Remember to make sure that the cables on 1 V-cable belong to the same phase. Now plug the V-cables into input 2 and 3 of the Smappee. Now close the fusebox (be carefull not to jam the cable) and turn the power back on.
  • Page 27: Special Instructions: Three Phase Delta Installation

    Special instructions: Installation with solar You can follow the installation instructions in the manual on page 21 up to step 10. Then, please follow the installation instructions below for the solar panels: (Solar) Energy Monitor Installation Manual Page 27 of 36...
  • Page 28 (Solar) Energy Monitor Installation Manual Page 28 of 36...
  • Page 29: Split Phase Installation Without Solar

    L ß K in the clamp. The arrow shows the direction of the energy flow. Make sure that L points in the direction of the appliances (energy users) and K in the direction of the electricity meter. (Solar) Energy Monitor Installation Manual Page 29 of 36...
  • Page 30 Please pay close attention to the direction of the arrow! Plug the ends of the current clamp cables into input 1 and 3 of the Smappee monitor.
  • Page 31 Plug the power cord for the monitor into the wall socket and wait until the monitor shows a green heartbeat. You can now get started with the Smappee app. (Solar) Energy Monitor Installation Manual Page 31 of 36...
  • Page 32: Split Phase Installation With Solar

    L ß K in the clamp. The arrow shows the direction of the energy flow. Make sure that L points in the direction of the appliances (energy users) and K in the direction of the electricity meter. (Solar) Energy Monitor Installation Manual Page 32 of 36...
  • Page 33 Make sure that you properly close the clamp by pressing your thumb on the side until you hear a click. Connect the V-cables to input 1 and input 3 of your monitor (Solar) Energy Monitor Installation Manual Page 33 of 36...
  • Page 34 Plug the cables of the clamps that are connected to your solar installation in the legs of the V-cables marked solar. Please respect the polarity of the plugs! Now close the fusebox (be carefull not to jam the cable) and turn the power back (Solar) Energy Monitor Installation Manual Page 34 of 36...
  • Page 35 Plug the power cord for the monitor into the wall socket and wait until the monitor shows a green heartbeat. You can now get started with the Smappee app. (Solar) Energy Monitor Installation Manual Page 35 of 36...
  • Page 36: Declaration Of Conformity

    EN 61000-3-3 * Immunity: EN 55024 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-1 * Safety: EN61010-1 Ed 3.0 (2010-06), Authorized signatory Hans Delabie Chief Operating Officer (Solar) Energy Monitor Installation Manual Page 36 of 36...
