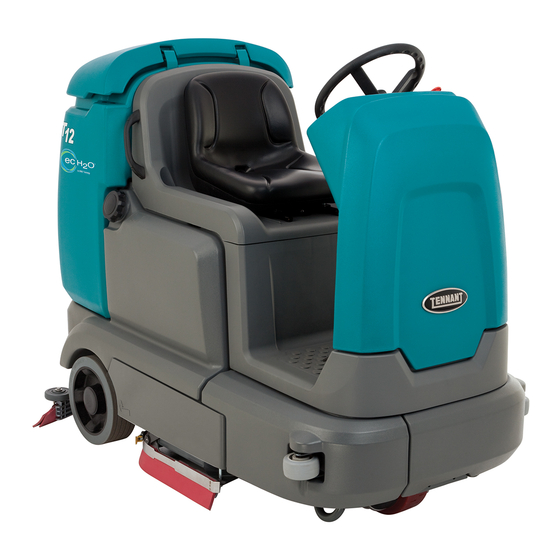

Tennant T12 Instruction Bulletin
  1. Manuals
  2. Brands
  3. Tennant Manuals
  4. Scrubber
  5. T12
  6. Instruction bulletin

Tennant T12 Instruction Bulletin

Hide thumbs Also See for T12:
1
2
3
4
5
6

Advertisement

Table of Contents

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9009811

SYNOPSIS:

This kit contains the parts needed to install a disk scrub head onto a T12 scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 4 hours)

PREPARATION:

1. Park the machine on a clean level surface,
completely lower the scrub head, turn off the
machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
2. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
IB 9010945 (07- 2014)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, old machine components,
and hazardous fluids in an environmentally safe manner according
to local waste disposal regulations.
Always remember to recycle.
No. 9010945
Machine: T12
Published: 07- 2014
Rev. 00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T12 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant T12

Summary of Contents for Tennant T12

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9009811 SYNOPSIS: This kit contains the parts needed to install a disk scrub head onto a T12 scrubber. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: NONE...
  • Page 2 INSTALLATION: Remove and save M8 hex screw, washer, and sleeve Remove and save M8 hex screw, washer, and sleeve Scrub head pivot arm (connected to frame of machine) Scrub head actuator (connected to pivot bracket) Remove and Remove and save discard M8 hex clevis pin and screw, washers,...
  • Page 3 Solution supply hose Water solenoid valve Hose clamp Connect main wire harness to rear brush motor Connect main wire harness to front brush motor FRONT FIG. 2 7. Position two jack stands at the designated 10. Slide the new scrub head under the machine locations under the front of the machine and and position the scrub head so all lower the machine onto the jack stands.
  • Page 4 14. Use the previously removed clevis pin and 16. Use saved hardware to connect the scrub cotter pin to connect the scrub head head pivot arm to the scrub head. Torque actuator to the scrub head. both M8 hex screws to 20 Nm (15 ft. lb.). (Fig.
  • Page 5 17. Raise the machine off the jack stands, 19. Use a M5 hex screw (6) to secure the cotter remove the jack stands from under the pins (5) to the scrub head assembly. (Fig. 4) machine, and lower the machine to the floor. 20.
  • Page 6 Check the brush pattern and adjustment and make adjustments. Refer to the Service Manual for instructions how to check the brush pattern and make adjustments. Bill Of Materials For Head Kit, Disk, DI [T12] - 9009811 Tennant Part No. Ref. Description Qty.
