DataMan
Quick Reference Guide
4/24/2015
Version 5.5.0
®
150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataMan 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cognex DataMan 150

Summary of Contents for Cognex DataMan 150

  • Page 1 ® DataMan Quick Reference Guide 4/24/2015 Version 5.5.0...

  • Page 2: Legal Notices

    Portions of the hardware and software provided by Cognex may be covered Cognex Corporation. All Rights Reserved. by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: http://www.cognex.com/patents.

  • Page 3: Table Of Contents

    Symbols Getting Started About DataMan 150 DataMan 150 Accessories DataMan 150 Systems Communication Modules DataMan 150 Cable Pinouts Reader Layout Dimensions Installing an Optical Filter Installing a Liquid Lens Changing from a 6.2 mm Lens to a 16 mm Lens...

  • Page 4: Symbols

    Symbols Symbols The following symbols indicate safety precautions and supplemental information. WARNING: This symbol indicates the presence of a hazard that could result in death, serious personal injury or electrical shock. CAUTION: This symbol indicates the presence of a hazard that could result in property damage. Note: Notes provide supplemental information about a subject.

  • Page 5: Getting Started

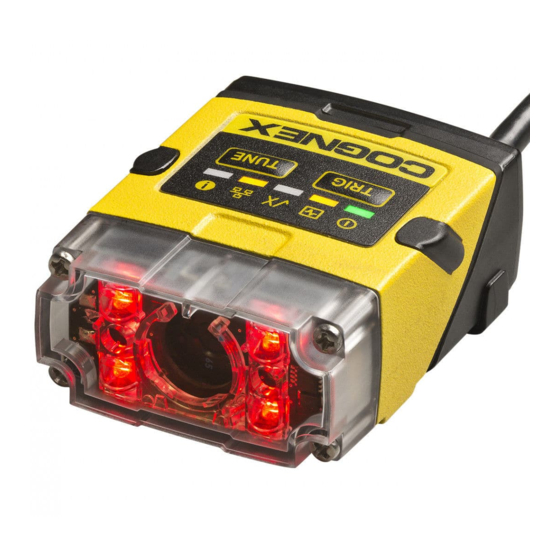

    About DataMan 150 The DataMan 150 readers are best in class ID readers, offering superior performance with the latest ID tools, flexibility to configure the reader in terms of lighting and optics to optimize the application, and an ease-of-use giving the user the ability to setup and deploy an application quickly and efficiently all without the need for PC: Superior performance, 1-D and 2-D code reading, including HotBars2™...

  • Page 6: Dataman 150 Accessories

    Getting Started DataMan 150 Accessories LENS OPTIONS 6.2 mm lens (DM150-LENS-62 ) 16 mm lens with extended optics mount (requires the use of extended front cover) (DM260-LENS-16) Extended lens cover, used with 16mm lens (DM260-LENS- 16CVR) Extended lens cover, used with 16mm lens, polarized (DM260- LENS-16CVR-P) Liquid Lens used with 6.2 mm lens (DM150-LENS-62LL)

  • Page 7: Dataman 150 Systems

    2. Serial connection is shorter than 15m. POWER SUPPLIES Power supply, 6V (DM100-PWR-000) MOUNTING BRACKETS Mounting bracket (DM100-UBRK-000) Pivot mounting bracket (DM100-PIVOTM-00) IO MODULES DataMan Basic I/O Module (DM100-IOBOX-000) DataMan 150 Systems Omni- 1DMax+™ — IDQuick™ — 2DMax+™ — for Resolution directional 1-D Best-In-Class 1-...
  • Page 8 Getting Started Omni- 1DMax+™ — IDQuick™ — 2DMax+™ — for Resolution directional 1-D Best-In-Class 1- High-Speed 2-D hard to read Code Reading D Reading Reading DPM and damaged 2-D codes DataMan 152S* √ √ √ 1280x960 Global shutter (DMR-152S-00) DataMan 152QL √...

  • Page 9: Communication Modules

    Getting Started Communication Modules The DataMan 150 is available with the following communication options: USB/RS-232 DataMan 150 Cable Pinouts The I/O module with USB has all signals on a SUB-D 15 connector with the following pinouts: Color Signal Brown Reserved...

  • Page 10: Reader Layout

    Getting Started Reader Layout The following images show the built-in lighting system and other features of the DataMan 150 reader. Illumination LEDs LED aimers 3-4* Mounting holes (M3 x 3.5mm) Trigger button Power Train status/Trigger status Good/bad read Communication Error...
  • Page 11 Note: Switching between straight and right angle configuration is recommended only up to 10 times in the lifetime of the reader. Note: Disconnect the DataMan 150 reader from power before changing the orientation. WARNING: Make sure that no electrostatic charges are applied to the PCB. (E.g. wear ESD shoes.) If the main module is separated from the I/O module, take care to assemble them correctly.
  • Page 12 Getting Started 6. Loosely fasten the modules together with the two T10 cap nut screws until they attach to the housing surface, but do not torque. 7. After each cap nut has been fastened, torque them to 0.12 Nm and place back the screw covers.

  • Page 13: Dimensions

    Getting Started Dimensions The DataMan 150 consists of three main parts: 1. Optics module (lens including lens mount, illumination and front cover including filter mounting option for a Diameter (Ø): 12.3mm<Ø<12.7mm, Thickness (t): 1.6mm<t<2mm filter) 2. Main module, including sensor and CPU...
  • Page 14 Getting Started The size of the DataMan 150 in the straight configuration is shown in the following figure: The size of the DataMan 150 in the angled configuration is shown in the following figure:...

  • Page 15: Installing An Optical Filter

    Getting Started Installing an Optical Filter Perform the following steps to install an optical filter in the optics module of the DataMan 150 reader. Note: Disconnect the DataMan 150 reader from power before installing an optical filter. 1. First, remove the front cover: unscrew the four screws and take off the LED cover.
  • Page 16 Getting Started 4. Attach the front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a torque wrench. 5. Note: The rib in the front cover must be oriented to the top side.

  • Page 17: Installing A Liquid Lens

    Getting Started Installing a Liquid Lens Perform the following steps to install a liquid lens on your DataMan 150 reader. Note: Disconnect the DataMan 150 reader from power before installing the liquid lens. 1. Remove the front cover: unscrew the four screws and take off the LED cover.
  • Page 18 Getting Started 5. Attach the liquid lens accessory by aligning the 2x2 connectors of the liquid lens with the 2x2 sockets on the optics mount. 6. Press the liquid lens onto the imager lens until you reach the stop. 7. Reattach the illumination. 8.

  • Page 19: Changing From A 6.2 Mm Lens To A 16 Mm Lens

    Changing from a 6.2 mm Lens to a 16 mm Lens Perform the following steps to change a 6.2 mm lens to a 16 mm lens on your DataMan 150 reader. Note: Disconnect the DataMan 150 reader from power before changing lenses.
  • Page 20 Getting Started 4. Attach the 16 mm lens mount. 5. Fasten the two Phillips head screws to 0.06 Nm using a torque wrench. 6. In the case of a manual focus lens, press the 16 mm lens cap onto the lens. The lens has 12 cutouts so it can be locked in steps of 30 degrees.
  • Page 21 Getting Started 8. Attach the extended front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a torque wrench. Note: The rib in the front cover must be oriented to the top side.

  • Page 22: Changing To An Illumination With A Different Color

    Changing to an Illumination with a Different Color Perform the following steps to change the illumination. Note: Disconnect the DataMan 150 reader from power before changing to an illumination with a different color. 1. Remove the front cover: unscrew the four screws and take off the LED cover.
  • Page 23 Getting Started 4. Attach the front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a torque wrench. Note: The rib in the front cover must be oriented to the top side.

  • Page 24: Setting Up Your Dataman

    Setting Up Your DataMan Setting Up Your DataMan Mounting Mounting the DataMan 150 at a slight angle (15°) can reduce reflections and improve reader performance.

  • Page 25: I/O Cable

    Setting Up Your DataMan I/O Cable You can connect a cable with USB & flying leads (DM-USBIO-00) to the cable that is attached to the device. The following table shows the pinout and color description of the flying leads. Note: GND (Pin 4) is connected to the reader housing, cable shield, and DB15 shell. Color Signal Black...

  • Page 26: Flying Leads Cable

    Setting Up Your DataMan Flying Leads Cable You can connect a cable with flying leads (DM50-PWRIO-05) to the cable that is attached to the device. The following table shows the pinout and color description of the flying leads. Color Signal Green Green/Black Brown/White...

  • Page 27: Usb Connections

    Setting Up Your DataMan USB Connections When connected to a PC over USB, the DataMan 150 appears as a COM port. You can connect your device to the computer in the following ways: 1. Connect directly to the PC: 2. Connect to the PC through a basic I/O module: If the reader is configured as an HID device and you want to return to USB serial, scan the USB serial connection code:...

  • Page 28: Rs-232 Connections

    Setting Up Your DataMan RS-232 Connections You can connect the DataMan 150 reader to a PC or other device over a standard RS-232 serial connection. Note: You must supply external power to use this connection type. You can make a connection in the following ways: 1.

  • Page 29: Wiring The Basic I/O Module

    Setting Up Your DataMan Wiring the Basic I/O Module 1. Power: 5-24 VDC, 2.5W peak. Connect either ground pin to chassis ground. 2. Discrete output: Opto-isolated, current source or sink, depending on wiring; must connect logical ground to common. Outputs are opto-isolated and protected against reverse polarity. Max current 50 mA @ 24 VDC. Output 1 used for external illumination control by default.

  • Page 30: Digital Input Wiring Diagrams

    Setting Up Your DataMan Input Wiring Example Digital Input Wiring Diagrams Current Sink Configuration Current Source Configuration...
  • Page 31 Setting Up Your DataMan Load to a TTL Buffer PNP Configuration NPN Configutation...

  • Page 32: Digital Output Wiring Diagrams

    Setting Up Your DataMan Digital Output Wiring Diagrams The digital outputs can be used as either NPN (pull-down) or PNP (pull-up) lines. For NPN lines, the external load should be connected between the output and the positive supply voltage (<26V). The outputs pull down to less than 3V when ON, which causes current to flow through the load.
  • Page 33 Setting Up Your DataMan...

  • Page 34: Installing The Dataman Software

    3. Connect the DataMan 150 to your PC. 4. Choose Start->Programs->Cognex->DataMan Software vx.x.x->Setup Tool to launch Setup Tool. Detected readers will appear under COM ports. 5. Click Refresh to update the list of connected devices. 6. Select a COM port that lists DataMan 150 and click Connect.

  • Page 35: Setting The Focus Position

    Setting Up Your DataMan Setting the Focus Position DataMan 150 can operate in one of three distance ranges. Follow the steps below to set the focus position. 1. Remove the screws and the front cover. 2. Using a flathead screwdriver, set the focus position from the front. Always turn clockwise to focus to a larger distance and counterclockwise to focus to a shorter distance.
  • Page 36 Setting Up Your DataMan 3. Remount the front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a torque wrench. 4. Note: If you use an optical filter and the illumination was removed, remount the illumination module first and then remount the front cover.

  • Page 37: Field Of View And Reading Distances

    Field of View and Reading Distances The following chart shows the horizontal field of view for DataMan 150 at a range of working distances. The horizontal and vertical field of view is shown for working distances of 40 mm, 65 mm and 105 mm.

  • Page 38: External Triggering And Trigger Modes

    Setting Up Your DataMan External Triggering and Trigger Modes If you are using external triggering, you can use any of the following methods to trigger your DataMan 150 reader: 1. Press the Trigger button ( ) on the reader. 2. Send a pulse on Input-0 line.

  • Page 39: Incremental Training For Multiple Symbologies

    DataMan 150 reports the status of the training and brightness optimization operations using its signaling LEDs. The second LED from left on the reader flashes green to indicate that the reader is currently trained, or yellow to indicate that it is not trained.

  • Page 40: Tuning

    Multi-port Connections You can connect multiple DataMan 150 readers to a single PC (or other device equipped with a serial port) using a multi-port connection. A multi-port connection creates a daisy-chain of readers. Each reader receives serial data from the previous reader and transmits it to the next reader.
  • Page 41 Setting Up Your DataMan The cable must provide a DB-15 connector for each DataMan 150 and a DB-9 connector for the PC serial port. Each DB- 15 connector must provide Tx Data, Rx Data, Trigger (Input 0), ground, and DC power. The Tx Data and Rx Data pins on adjacent connectors must be connected to provide the multi-port connection.
  • Page 42 If a DataMan 150 is transmitting its own read result, it will buffer any data received from another reader until it has finished its own data transmission. If a DataMan 150 is transmitting another reader’s data, it will buffer its own data if it receives a trigger signal while it is processing the other reader’s data.

  • Page 43: Dataman 150 Specifications

    Setting Up Your DataMan DataMan 150 Specifications Weight 128 g Operating 0ºC — 40ºC (32ºF — 104ºF) Temperature Storage -10ºC — 60ºC (-14ºF — 140ºF) Temperature Maximum <95% (non-condensing) Humidity Environmental IP65 • IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11g, 10ms Shock and •...

  • Page 44: Precautions

    Note: For product support, contact http://support.cognex.com Observe these precautions when installing the Cognex product, to reduce the risk of injury or equipment damage: To reduce the risk of damage or malfunction due to over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply, route all cables and wires away from high-voltage power sources.

  • Page 45: Regulations/Conformity

    Regulations/Conformity Regulations/Conformity The DataMan 150 meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your device.
  • Page 46 Regulations/Conformity The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration.

Table of Contents
