- Page 1 ® DataMan 380 Series Reference Manual 2023 November 16 Revision: 23.3.1.3...
-
Page 2: Legal Notices
Copyright © 2023. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents. -
Page 3: Precautions
Precautions Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Connectivity is possible through the following options: 24 VDC (+/- 10%) output connection using a UL or NTRL listed power supply Any other voltage creates a risk of fire or shock and can damage the components. -
Page 4: Symbols
Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent. -
Page 5: Table Of Contents
Table of Contents Table of Contents Legal Notices Precautions Symbols Table of Contents Getting Started About the DataMan 380 Series Supporting Documentation Accessories Lenses Lens Covers Mounting Brackets Cables Integrated Lights Illumination Options DataMan 380 Series Systems Setting Up Your DataMan Reader... - Page 6 Using Your DataMan Reader Installing the DataMan Setup Tool Trigger Types External Triggers Industrial Protocols Specifications DataMan 380 Series Reader DataMan 380 Series Reader Image Sensor LED Wavelengths Acquisition Trigger Input High-Speed Outputs Ethernet Cable Breakout Cable External Light Connector...
-
Page 7: Getting Started

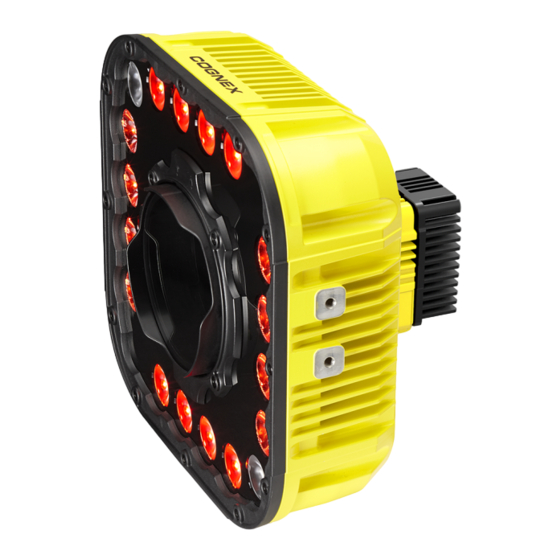

Getting Started Getting Started This section provides general information about the DataMan 380 series reader and the accessories and systems. About the DataMan 380 Series The DataMan 380 series readers are high-performance readers that offer: Flexible Industry 4.0 connectivity options... -
Page 8: Supporting Documentation
Getting Started Supporting Documentation This document provides basic information about the DataMan 380 series readers. Additional information is available through the Windows Start menu or the DataMan Setup Tool Help menu after you install the DataMan software on your PC. -
Page 9: Accessories
Getting Started Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. Lenses Accessory Product Number Illustration 16 mm f6.5 Cognex High-res CLN-C16F06-UR 25 mm f6.5 Cognex High-res CLN-C25F06-UR 35 mm f6.5 Cognex High-res... -
Page 10: Cables
Accessory Illustration High-Powered Integrated Torch (HPIT), red and white variants Please contact Cognex sales for more details. WARNING: High-Powered Integrated Torch devices equipped with a Time-of-Flight sensor, the device has been tested to be under the limits of a Class 1 Laser device. -
Page 11: Illumination Options
Getting Started CAUTION: High-Powered Integrated Torch devices equipped with a target aimer have been tested in accordance with IEC 60825-1. 3rd ed. 2014, and have been certified to be under the limits of a Class 2 Laser device. Illumination Options LED Type Power Maximum Exposure... -
Page 12: Dataman 380 Series Systems
Getting Started DataMan 380 Series Systems Omnidirectional 1D Codes Omnidirectional 1D/2D Codes Multi-Reader Sync Resolution DM3808QL 2840 × 2840 DM3808X DM3812QL 4096 × 3000 DM3812X DM3816QL 5320 × 3032 DM3816X... -
Page 13: Setting Up Your Dataman Reader
Read this section to learn how the reader connects to its standard components and accessories. Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader. - Page 14 Setting Up Your DataMan Reader Trigger button Power LED indicator Train status LED indicator Ethernet 0 status LED Ethernet 1 status LED Error LED indicator Coglink/USB-C status LED Tune button Power I/O Breakout cable connector Ethernet connector 1 Micro-HDMI connector Coglink/USB-C connector Ethernet connector 0 Light connector Indicator lights...
-
Page 15: Dimensions
Setting Up Your DataMan Reader Dimensions The following sections list dimensions of the reader. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice. DataMan 380 Reader Only... -
Page 16: Dataman 380 With 45 Mm Lens Cover
Setting Up Your DataMan Reader DataMan 380 with 45 mm Lens Cover... -
Page 17: Dataman 380 With 60 Mm Lens Cover
Setting Up Your DataMan Reader DataMan 380 with 60 mm Lens Cover... -
Page 18: Dataman 380 With 75 Mm Lens Cover
Setting Up Your DataMan Reader DataMan 380 with 75 mm Lens Cover... -
Page 19: Dataman 380 With Hpit
Setting Up Your DataMan Reader DataMan 380 with HPIT... -
Page 20: Field Of View And Distance
Setting Up Your DataMan Reader Field of View and Distance This section provides the Field of View (FoV) values for 16 mm and 25 mm lenses. DataMan 3808 Field of View 16 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700... -
Page 21: 25 Mm Focal Length
Setting Up Your DataMan Reader 25 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700 2200... -
Page 22: Dataman 3812 Field Of View
Setting Up Your DataMan Reader DataMan 3812 Field of View 16 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700 1180... -
Page 23: 25 Mm Focal Length
Setting Up Your DataMan Reader 25 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700 2200... -
Page 24: Dataman 3816 Field Of View
Setting Up Your DataMan Reader DataMan 3816 Field of View 16 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1080 1700 1535... -
Page 25: 25 Mm Focal Length
Setting Up Your DataMan Reader 25 mm Focal Length Working Distance in mm Horizontal Values in mm Vertical Values in mm 1200 1700 2200 1270... -
Page 26: Mounting The Vision System
Setting Up Your DataMan Reader Mounting the Vision System The reader provides mounting holes for attachment to a mounting surface. CAUTION: The reader has to be grounded, either by mounting the reader to a fixture that is electrically grounded or by attaching a wire from the mounting fixture of the reader to frame ground or Earth ground. - Page 27 Setting Up Your DataMan Reader 2. Insert the screws into the mounting pilot holes and tighten them. Note: Apply a maximum of 0.4 Nm torque when tightening the screws. 3. Place the reader on a mounting surface and tighten the screws.
-
Page 28: Mounting With U-Shaped Bracket For Hpit
Setting Up Your DataMan Reader Mounting with U-shaped Bracket for HPIT 1. Attach the pivot bracket to the frame. 2. Insert the rotation axis screws without fully tightening them. - Page 29 Setting Up Your DataMan Reader 3. Slide the reader into the mounting bracket through the central slot.
- Page 30 Setting Up Your DataMan Reader 4. Apply the chosen rotation angle by inserting a screw into one of the preset holes or to the sliding slot on the mounting bracket. 5. Tighten the mounting screws. Note: Apply a maximum of 5 Nm torque when tightening the screws.
-
Page 31: Connection Options
Setting Up Your DataMan Reader Connection Options This section summarizes connection options. For more information on how to connect your DataMan reader to your network, see the DataMan Communications and Programming Guide. Connecting the Ethernet Cable CAUTION: The Ethernet cable shield has to be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. -
Page 32: Using Your Device Through Usb
Setting Up Your DataMan Reader Using your Device through USB You can utilize the USB connector of the DataMan 380 for emulating serial (USB-COM) functionality. Emulating Serial Functionality If you connect a USB-C cable, you can see a COM port in the Windows Device Manager, as a generic USB-COM port. To emulate serial functionality: 1. -
Page 33: Using Your Dataman Reader
Follow the steps below to install and connect your reader to the DataMan Setup Tool. 1. Check the DataMan Release Notes for a full list of system requirements. 2. Download the latest version of the DataMan Setup Tool from support.cognex.com/downloads/dataman/software- firmware and follow the on-screen steps. -
Page 34: External Triggers
Using Your DataMan Reader External Triggers If you are using external triggering, you can use any of the following methods to trigger your reader. Press the trigger button on the reader. Send a pulse on the I/O cable. Trigger + Trigger - Send a trigger command over any serial connection . -
Page 35: Specifications
The following sections list general specifications for the reader. DataMan 380 Series Reader Specification DataMan 380 Lens Type C-Mount lens or Cognex High Speed Liquid Lens Trigger 1 opto-isolated, acquisition trigger input. Discrete Inputs 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. -
Page 36: Dataman 380 Series Reader Image Sensor
Storage) 100 m/s / 15 mm) with cables or cable plugs and a 150 gram or lighter lens attached. Regulations/Conformity CE, FCC, KCC, TÜV SÜD NRTL, EU RoHS, China RoHS DataMan 380 Series Reader Image Sensor Specification DM3808 DM3812 DM3816 Sensor Type 1/1.1-inch CMOS... -
Page 37: Acquisition Trigger Input
Specifications Acquisition Trigger Input The reader features one acquisition trigger input, which is optically isolated. You can configure the acquisition trigger input to trigger from an NPN (current sinking) or PNP (current sourcing) device. To trigger from an NPN type photoelectric sensor or PLC output, connect COMMON IN to +24 VDC and connect IN 0 to the output of the photoelectric sensor. - Page 38 Specifications Number Output NPN OUT COMMON OUT For PNP lines, the external load should be connected between the output and the negative supply voltage (0 VDC). When connected to a 24 VDC power supply, the output pulls up greater than 21 VDC when ON, and current flows through the load. When the output is OFF, no current flows through the load.
-
Page 39: Ethernet Cable
Specifications Ethernet Cable The Ethernet cable provides Ethernet connectivity to the reader. The Ethernet cable is used to connect the reader to other network devices. P1 Pin Number Wire Color Signal Name P2 Pin Number White/Orange TxRx A + Orange TxRx A - White/Green TxRx B +... -
Page 40: Breakout Cable
Specifications Breakout Cable The Breakout cable provides connections to an external power supply, the acquisition trigger input, encoder inputs (9902L only), general-purpose inputs, high-speed outputs, and RS-232 serial communications. The Breakout cable is not terminated. The Breakout cable can be connected to devices, such as a trigger sensor or strobe light. The Breakout cable is not terminated. -
Page 41: External Light Connector
Specifications External Light Connector The LIGHT connector of the reader is used to connect the External Light cable to an external lighting device, providing power and strobe control. You can connect the External Light cable to either a continuous or strobed lighting device. Before using an external lighting device, you must configure the light settings within DataMan Setup Tool. -
Page 42: Ccb-M12X12Fy-Xx
Specifications CCB-M12x12Fy-xx The Power and I/O Breakout cable provides access to trigger and high-speed outputs. For RS-232, use the Power Supply return path for ground. The figure on the left shows the plug on the device. Pin# Signal Names Wire Color Out 2/In 2 White Green... -
Page 43: Ccbl-05-01
Specifications CCBL-05-01 The Power and I/O Breakout cable provides access to trigger and high-speed outputs. For RS-232, use the Power Supply return path for ground. The figure on the left shows the plug on the device. Pin# Signal Names Wire Color Out 2/In 2 Yellow White/Yellow... -
Page 44: Ccb-Pwrio-05
Specifications CCB-PWRIO-05 The Power and I/O Breakout cable provides access to trigger and high-speed outputs. For RS-232, use the Power Supply return path for ground. The figure on the left shows the plug on the device. Pin# Signal Names Wire Color Out 2/In 2 Yellow White/Yellow... -
Page 45: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Clean the Housing To clean the outside of the reader housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a cleaning cloth. Do not pour the cleaner on the reader housing. CAUTION: Do not attempt to clean any DataMan product with harsh or corrosive solvents, including lye, methyl ethyl ketone (MEK) or gasoline. -
Page 46: Regulations And Conformity
Regulations and Conformity Regulations and Conformity Note: For the most current CE and UKCA declarations and regulatory conformity information, see the Cognex support site: cognex.com/support. DataMan 380 readers have Regulatory Model number 50103 and meet or exceed the requirements of all applicable standards organizations for safe operation. -
Page 47: 中 国 大陆 Rohs (Information For China Rohs Compliance)
表 示用于本 部件的至 少一种 均 质 材料中所 含的危害 物 质超 过GB / T26572 - 2011 的限 制 要求 。 For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). - Page 48 Copyright © 2023 Cognex Corporation. All Rights Reserved.
