Summary of Contents for Antari DNG-250

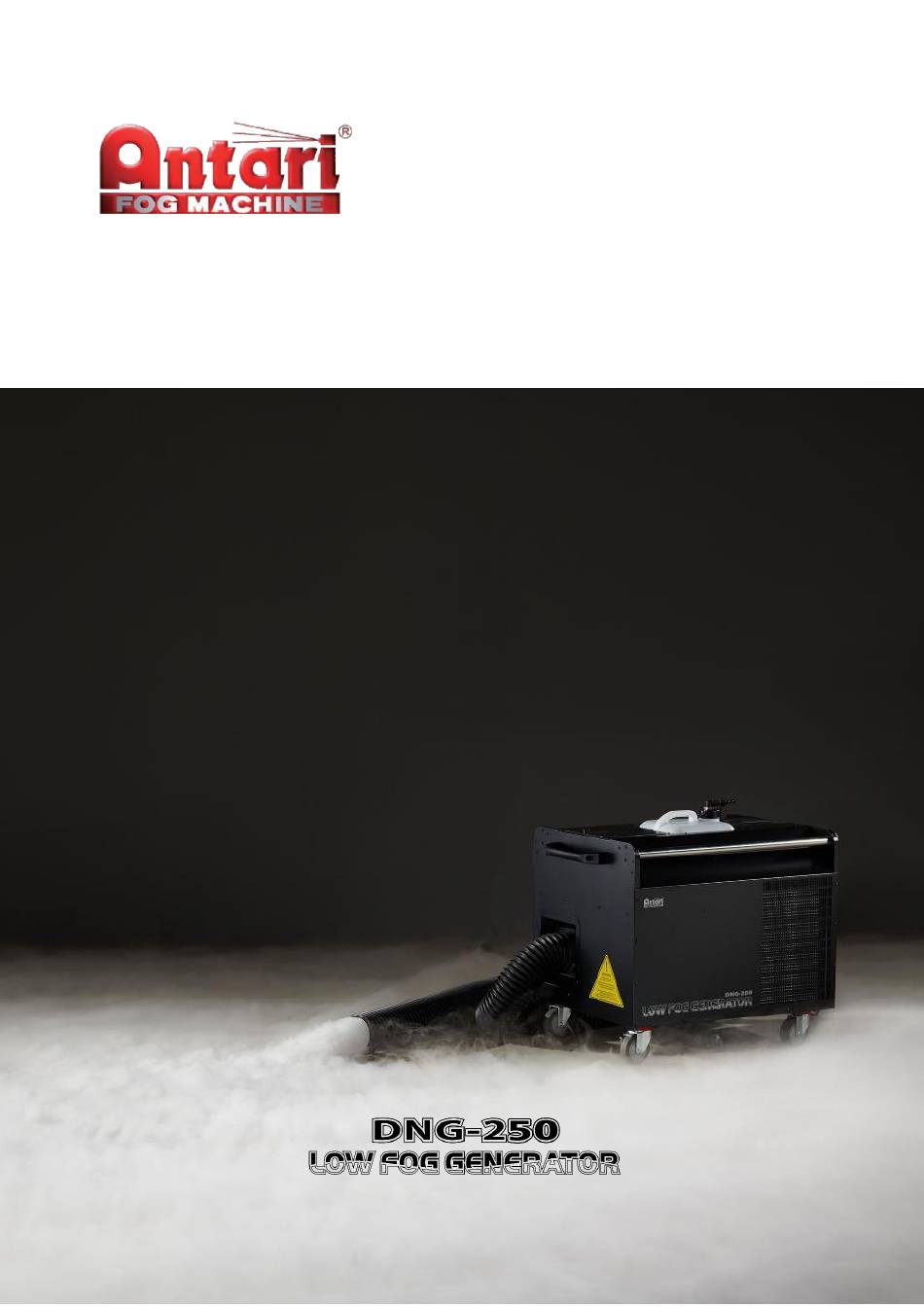

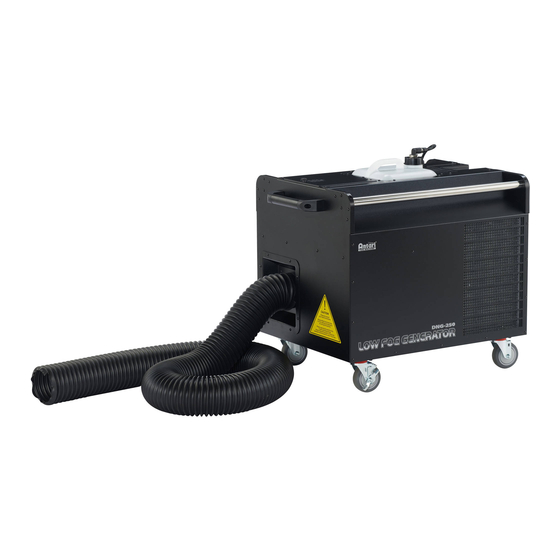

  • Page 1 DNG-250 Low Fog Generator User Manual - ENGLISH 中文 © 2019 Antari Lighting and Effects Ltd. © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 2 10. Tank & tank cap 4. Resetable Fuse 11. Fog Conducting Hose 5. Rocker Switch 12. Power Cord & Plug 6. P.C Board DMX 5Pin 13. Pu Tube 7. P.C Board DMX 3Pin © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 3 No CO is needed for DNG-250 Low Fog Generator; therefore, there’s no risk to human body nor environment. DNG-250 is a real green effect machine. Please follow these operation, safety and maintenance instructions to ensure a longer and safe life of your DNG-250 Low Fog Generator.
  • Page 4 Setup  The wheels at the bottom of the DNG-250 help to move the machine; wheel fixing mechanisms are located at the diagonal line. Position the machine at a spot, press down the fixing mechanism to prevent it from moving. To move the machine, press the opposite side of the fixing mechanism to release it.
  • Page 5: Operation

    Connect the machine with the black fog conducting hose; it is a three-meter pipe. The length of the pipe can be adjusted to fit the actual need. (refer to figure 4)  Fill Antari FLL Low Fog Effects Fluid to the tank, tighten the tank cap. (refer to figure Figure4 Figure5 Operation 1.
  • Page 6: Manual Mode Setting

    Current setting of output volume Current setting of fan speed Start / Stop Manual mode setting Return Return 2-2-1 Manual mode setting: Continuous mode ON / OFF Output volume 20% - 100% © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 7: Timer Mode

    Interval 5 secs – 200 secs Duration 5 secs – 200 secs Continuous mode ON / OFF Output volume 20% - 100% DMX: Heater temperature status DMX status DMX address: DMX setting Return © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 8: Dmx Setting

    When the tank is refilled with fog fluid, use this to draw the fluid. Press “Pause” once the output is back to avoid damp in fog. Default duration of the fluid drawing is 1 min. Countdown Return Return Start Pause © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 9: Basic Information

    *LCD light will shut down in 1 min when “Auto” is selected. Action before shut down will be automatically proceeded after warming up is finished. Restore default setting. Chinese/English Software update (for Antari’s distributors’ use only) © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 10 Data + 3-2 DNG-250 DMX instruction DNG-250 low fog generator has built-in DMX 512 function with 3 Pin and 5 Pin sockets to choose from. After connecting to DMX, TFT touch panel can’t be used, and all actions are controlled by DMX. Only DMX address can be entered with TFT touch panel.
  • Page 11 4-2 RDM Directory Other important notes A water collection tray is equipped at the rear of DNG-250. When the compressor is running for condensed fog, some water drops will flow into the tray. Please check the water level of the tray routinely and drain it on time to prevent overflow.
  • Page 12 Antari dealer or a designated service center. Do not disassemble the machine by yourself. After using the DNG-250 for a long time, there may be residue on the floor which could be a possible cause of danger. Please note the material of the floor and pay special attention to the safety of persons walking on it.
  • Page 13 - DMX Channels 1 channel - Optional Accessories FDNG-250 Flight Case - Dimensions L 780 W 608 H 715 mm - Weight 130 kgs (286.60 lbs) Please save this user manual carefully © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 14 恭喜您擁有了這部全新的 Antari DNG-250 低煙機 感謝您選擇了 Antari DNG-250 低煙機,這部機器除了以往 Antari DNG-200 基本的煙霧冷卻功能外,我 們增加了全新的功能,使用 3.5 吋觸碰式全彩 TFT-LCD,讓使用者在操控上更簡單方便,機器大小體積跟 Antari DNG-200 一樣,但是煙霧的輸出量及持續能力都有全面性的提高,效果相較過去的 Antari DNG- 200 有顯著的提升,讓舞台空間的動線運用及表演的效果都可以更加完美。Antari DNG-250 低煙機不使用 二氧化碳,所以不會對環境及人體造成負擔,同時具有完美低霧特效及兼具環保,是一款真正的綠色特效機 器。 為確保您機器的使用及輸出效果的完美,在操作機器前,請詳細閱讀這份使用說明書,請按照說明書內的內 容操作以及維護,並注意安全說明事項,以確保 DNG-250 低煙機使用壽命可以更加延長以及操作人員能 更加安全的使用機器。 請注意印在 ANTARI 機器外部的所有警告標籤和說明。 注意事項 請保持機器乾燥。  機器設計在室內使用,請勿在戶外使用本機器。  理想的機器操作溫度,在室溫攝氏 5 度 ~ 40 度之間 。...
  • Page 15 1 個 集水盤(已安裝在機器上) 1 條 6 mm PU 管 3 公尺 安裝機器的步驟 步驟 1: DNG-250 底部的輪子可以協助移動,對角線上的輪子置有固定器,將機器放置在定點,壓下固定 器 以固定機器避免滑動(參考圖ㄧ),需要移動機器時,只要在反方向壓下將固定器鬆開即可移動器。 (機器週圍至少保持 1 公尺以上的空間) 注意!由於機器體積龐大,請勿將機器固定於斜坡上。 圖一 步驟 2: 將電源線帶有 Powercon 的一端連結機器(請確認電源開關在關閉/ OFF 的情況下),請將卡榫對準 機器連接座凹槽,插入後順時針旋轉約 10 度(參考圖二),將電源線完全固定為止。兩條電源線都 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 16 需要照此步驟安裝好,上方的電源線是供應煙霧機的電源,下方的電源是供應壓縮機的電源。(參考 圖二、三) ● 將機器連接電源之前,請確認機器上技術銘版上標示所需的電壓及功率,是否與電源相符。 圖三 圖二 步驟 3: 結合機器與黑色煙霧導管,此煙霧導管長度為三米,可依照實際需要長度伸縮使用。(參考圖四) 步驟 4: 倒入 Antari FLL 低煙機煙霧水至機器上的油桶中,並旋緊油桶蓋。(參考圖五) 圖四 圖五 操作說明 1. 確認電壓後,將機器電源線連接至有接地的插座上,機器背後有兩組紅色的電源開關,請先啟動下方的 壓縮器電源,再啟動上方煙霧機電源,開始溫機。此時 TFT-LCD 上方會先顯示 目前電熱管溫度百分比,到達 100%為加熱完成。 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 17 2-1 主畫面介紹 電熱管目前溫度狀態 自訂義 2 自訂義 1 定時模式 DMX 設定/狀態 手動噴煙 執行/設定 加熱裝置開關 主選單 強制抽油 手動:手動噴煙功能鍵 設定煙霧量出量 設定風量 開始 / 暫停 手動模式配置選單 返回鍵 2-2-1 手動噴煙配置選單 持續噴煙模式 ON / OFF 輸出量 20% - 100% © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 18 間隔時間 5 秒 ~ 200 秒 啟動時間 5 秒 ~ 200 秒 持續噴煙模式 ON / OFF 輸出量 20% - 100% DMX:DMX 功能鍵為目前 DMX 狀態及設定選項 電熱管目前溫度狀態 DMX 目前狀態 DMX 目前地址 返回鍵 DMX 配置選單 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 19 2-4-1 DMX 模式配置選單 DMX 地址設定,直接輸入要的地址數字,按下右下方確認即可。 目前 DMX 地址數值 取消 確認 強制抽油:當油幫浦空油時不易抽到煙霧油時,可使用此一功能抽油,當煙霧從機器出來 時請按下暫停鍵以防止煙霧過於潮溼。(預設時間為 1 分鐘) 時間 返回 開始 暫停 返回 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 20 返回 暫停鍵 返回 開始鍵 主選單:DNG-250 功能選單 2-7-1 DMX 設定選單 DMX 地址設定,請參考 DMX 設定頁面說明 2-7-2 機器基本資訊選項 目前機器軟體版本 目前機器溫度單位 目前工作電壓設定 本次機器開機時間 2-7-3 LCD 亮度有 低 / 中 / 高 /自動關閉 四種模式,自動關閉為 分鐘後無任何操作時,螢幕會自動關閉 此模式為開機加熱完成後,自動執行關機前動作 恢復出廠時設定 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 21 本機器提共 3 PIN 及 5PIN XLR 的 DMX 連接,下方為 Pin 接點說明: 功 能 接地 數據 - 數據 + 3-2 DNG-250 DMX 說明 DNG-250 低煙機已有內建 DMX 512 功能,並設有 3PIN 及 5PIN 二組公母頭連接座可供選擇使 用,連接 DMX 之後 DNG-250 最多只使用一個控制頻道,此時 DNG-250 的動作控制都將由 DMX 控台所控制,TFT-LCD 在 DMX 模式下無法控制機台動作,只能設定 DMX 相關數值。 3-3 DMX 數值說明 功能 數值...
  • Page 22 4-2 RDM 指令表 其它重要注意事項 DNG-250 後方設有集水盤,當壓縮機運轉冷凝煙霧時,會有些許水滴流入集水盤,請注意集水盤的 水量是否滿溢,並適時傾到。(參考圖六)如需要長時間使用機器或無法隨時注意集水盤狀況時,可以 取下集水盤,將一條 6mm 的 PU 管,連結機器集水槽上方的排水孔(參考圖七)由水管直接將水導流 出,用完後只需將上方紅色按鈕往上推,即可退出排水管。 圖六 圖七 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 23 定額模式 與 定時模式 DMX 512 - DMX 512 頻道 占用 1 頻道 - 選擇性配件 FDNG-250 飛行箱 - 尺寸 長 780 寬 608 高 715 mm - 重量 130 公斤 (286.60 磅) 請妥善保存本使用說明書 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 24 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 25 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 26 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 27 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
  • Page 28 For current product information visit Antari at: www.antari.com / www.antari.com.tw For information requests please contact us at: sales@antari.com C08DNG251 © 2019 Antari Lighting and Effects Ltd. www.antari.com...
