598111-01,PW1300 manual

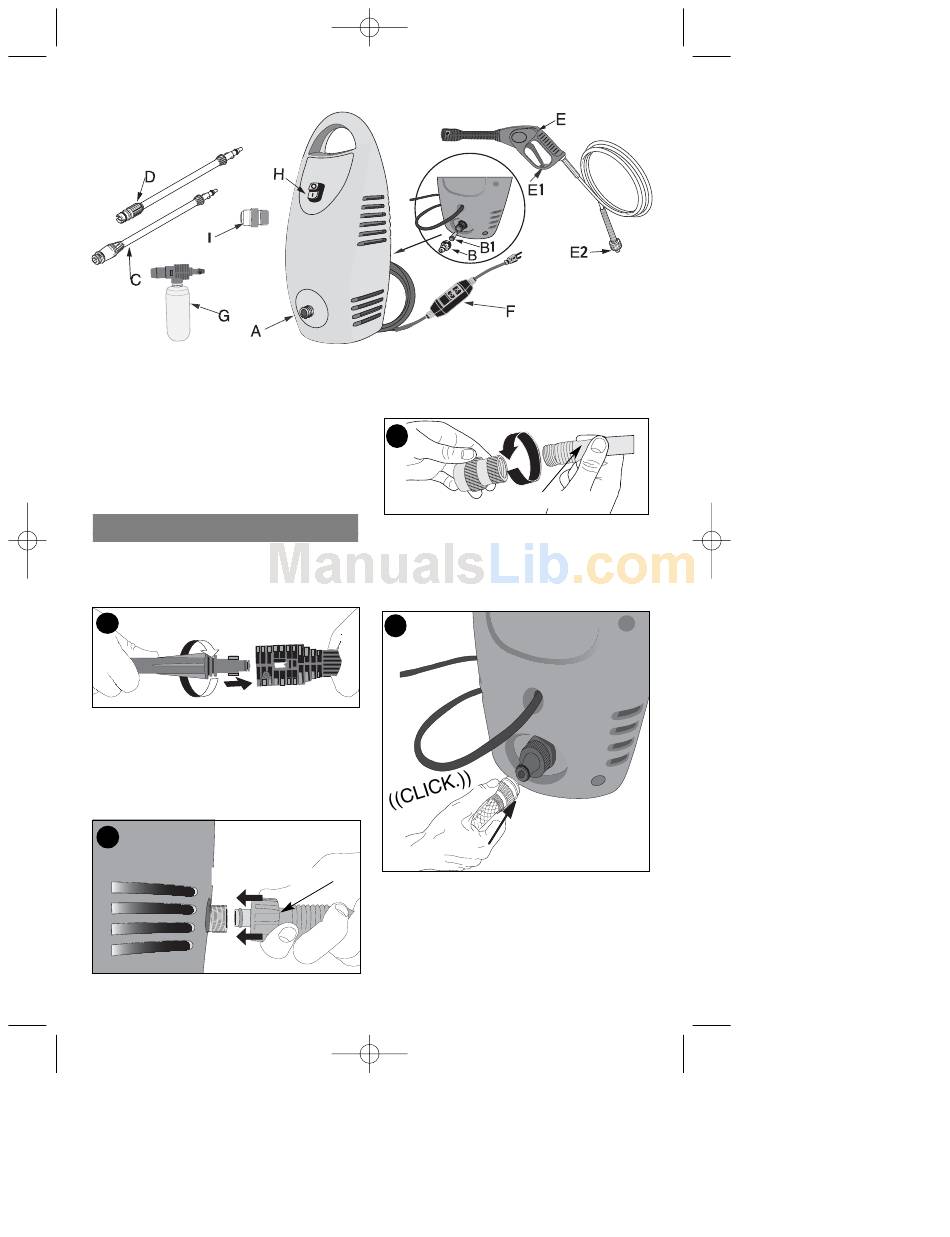

A. Water outlet
B/B1. Water inlet connector with filter
C. High pressure turbo wand
D. Adjustable fan wand
E/E1/E2 Gun with safety catch/hose
assembly
F. Power supply cord with GFCI
G. Detergent applicator
H. On/off switch
I.
Garden hose Quick Connect
SET-UP / ADJUSTMENT
Figure 1 - Insert the fan wand (D) into
the gun wand (E) by pushing and rotating
until the two parts are locked as shown in
Figure 1.
1
Figure 2 - Connect the high pressure
hose (E2) to the water outlet (A) on the
cleaner by first inserting the brass end of
the hose into the threaded brass outlet,
then snugly threading on the coupling.
2
High pressure hose
1/31/05
1:51 PM
Page 4
Figure 3 - Connect the threaded end of
the Quick Connect adapter (I) to your
garden hose as shown in Fig. 3.
3
Figure 4 - With the quick connect
adapter (I) attached to your garden hose,
pull back on the top section and push
onto the water inlet connector (B) of the
pressure washer, then release.
4
Figure 5 - Connect garden hose to the
cold water source and turn water on full.
The intake water temperature must NOT
exceed 50°C (122°F). The water supply
pressure must NOT exceed 10 bar
(145psi).
4
Garden hose
