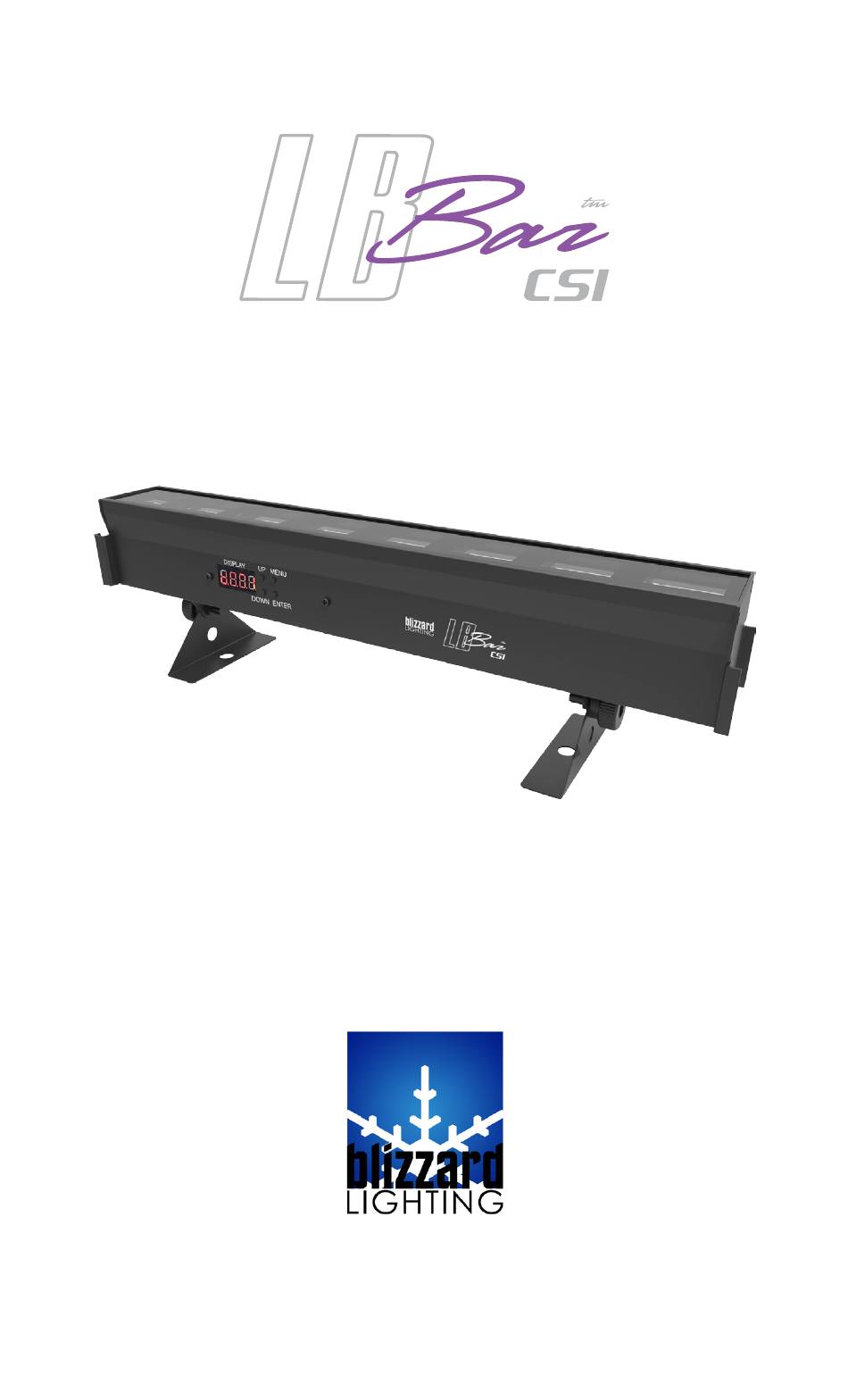

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2017...
-
Page 2: Table Of Contents
DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your LB™ Bar CSI As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 3: Lb Bar™ Csi
We’ll be happy to help, honest. Disclaimer: The information and specifications contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/support. Page 4 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 5: Meet The Lb™ Bar Csi
What It Does UV Intensity (0% <-> 100%) DMX Quick Reference (3-Channel Mode) Channel What It Does UV Intensity (0% <-> 100%) Strobe (slow <-> fast) Dimming Curves Page 5 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -

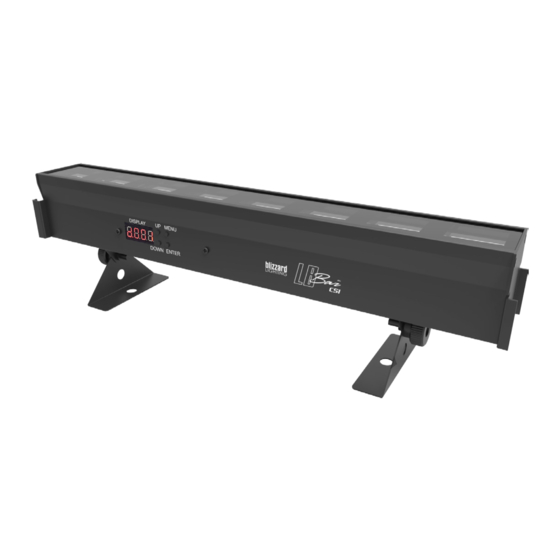

Page 6: The Lb™ Bar Csi Pin-Up Picture
Control Panel 9* High Output 3W UV LEDs Mounting Brackets Figure 2: The Rear Connections Slotted End Fasteners Power In DMX In DMX Out Power Out Page 6 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to select the menu function currently dis- played, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Ramp Effect Menu Tup(ms) Tdown(ms) Standard dr-0 Curve 1 dr-1 1010 Curve 2 dr-2 1210 1320 Curve 3 dr-3 1600 1710 Curve 4 dr-4 1850 1980 Page 11 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
1.) Navigate the main menu until you reach dr--, and press <ENTER>. 2.) Use the <UP/DOWN> buttons to highlight dr-0 to dr-04. 3.) Press the <ENTER> button to confirm. Page 12 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Values In-Depth
Use Only DMX Cables and/or check cables for defects Install a Terminator. Reset fixture(s). If your problem persists or isn’t listed, please open a support ticket online at: www.blizzardlighting.com/support. Page 13 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 14: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... -
Page 15: Tech Specs
2-year limited warranty, does not cover malfunction caused by Warranty damage to LEDs. Dimensional Drawings 16.4 in (415.6 mm) 15.9 in (402.0 mm) 15.9 in (402.0 mm) Page 15 LB™ Bar CSI User Manual Rev. A © 2017 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
