Canvas Vista Suspended Storage
Installation and Disassembly for
Recycling Instructions

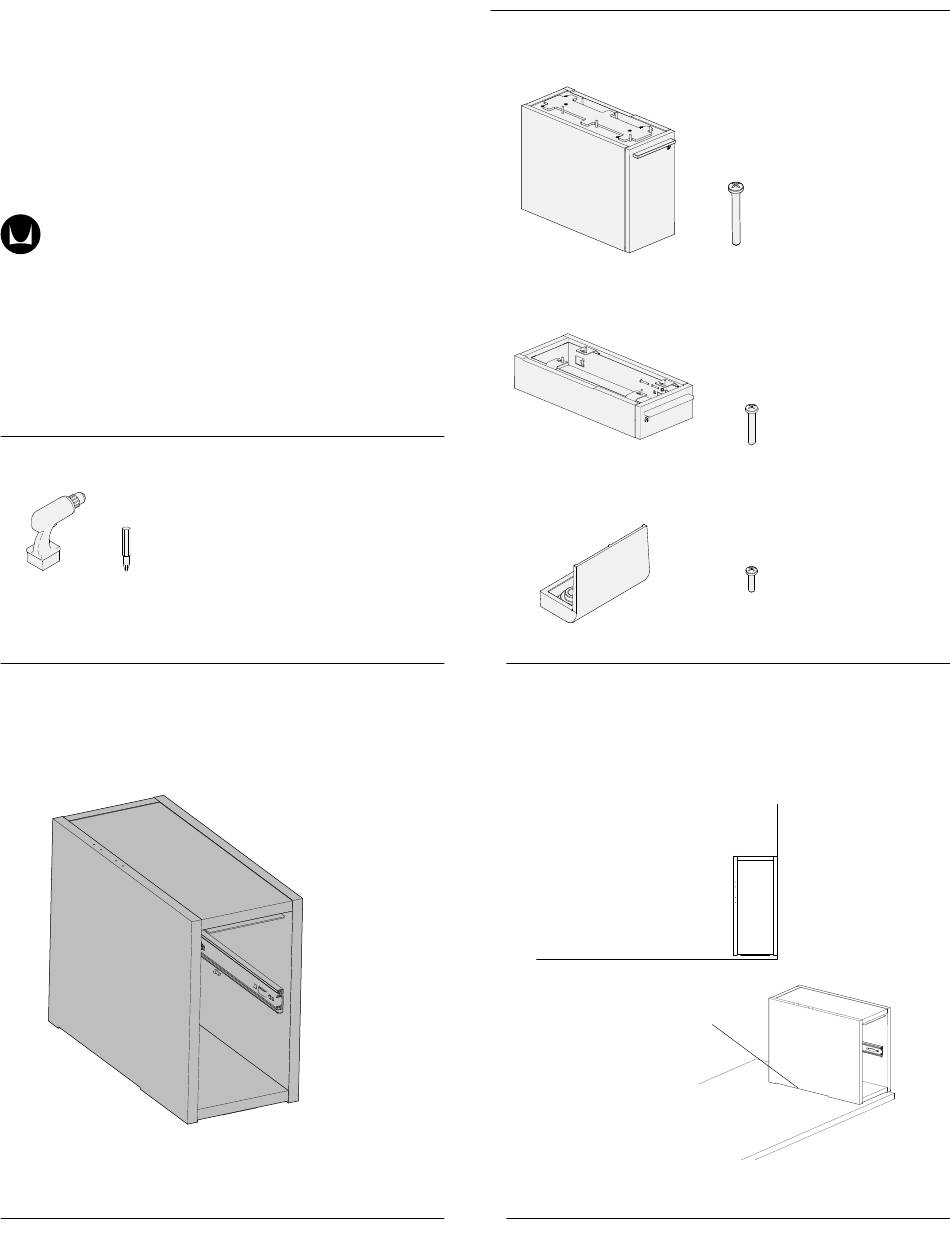

How to assemble Vista Suspended Storage
Tools Required
#2 Phillips
Power Driver
Extended Bit
L2SCF – Suspended Cubby
Step 1
1.1 Remove the drawer body from the cubby storage.
HermanMiller
Parts Included
L2SCF – Suspended Cubby
L2SDF – Suspended Drawer
Storage Guide
Step 2
2.1 With the table upside down, align cubby storage to either the front
left or right corner of the table and align the holes in the top of the
storage unit with the 4 locating holes in the work surface. Make sure
the cabinet is flush with the worksurface edge.
Wall with the notch faces
to the inside
This is a LH cubby - it installs on the LH side of the desk
(in the in use position)
1 1BNPF3 rev A
Tapping Screw
Pan Head (6)
Tapping Screw
Pan Head (4)
Tapping Screw
Pan Head (2)
Installation Instructions
