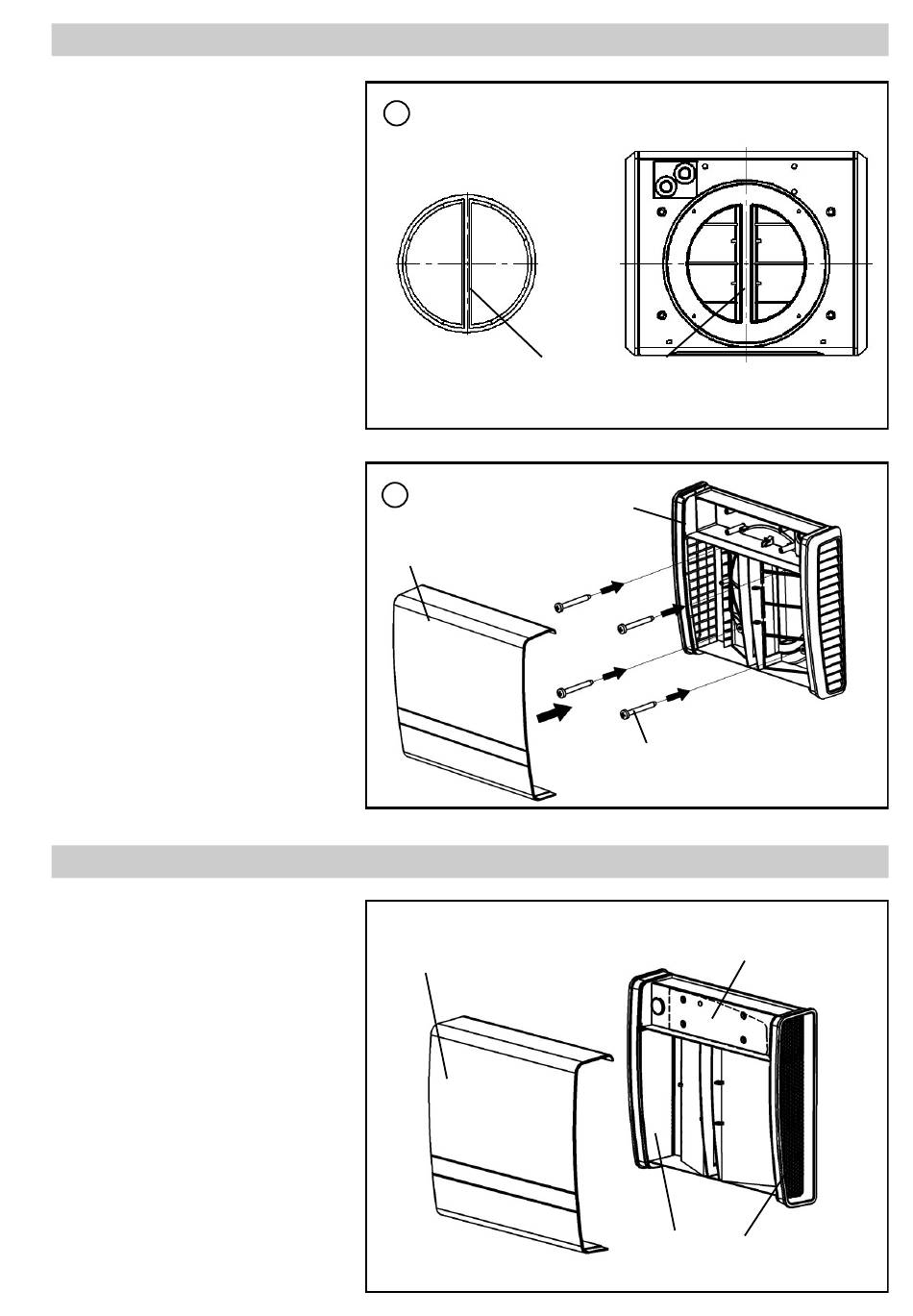

Assembly: Outer screen 1/EGA
Using the drilling template, drill
the fastening drill holes and in-
sert dowels (in accordance with
the surface) provided on-site
(refer to "Assembly: Inside room
screen", Image 1).
Place the outer screen sub-part
on the EPP adapter located in
the tube!
Fasten the outer screen sub-part
using the screws enclosed!
Place the cover on top!!
Closing the inner screen
The inner screen can be closed,
if required, using the magnetic
closing elements:
Place the closing elements with
the red side outwards from the
inside in front of the fan grille!
Apply the cover!
7
EPP Adapter
(in the tube)
Only vertical position of center bar is ad-
Outer screen
8
sub-partl
Cover
Cover
Rear side outer screen sub-part
Insert here!
missible
Screw (4x)
Location of closing
elements
Closing elements inserted in
closed status
