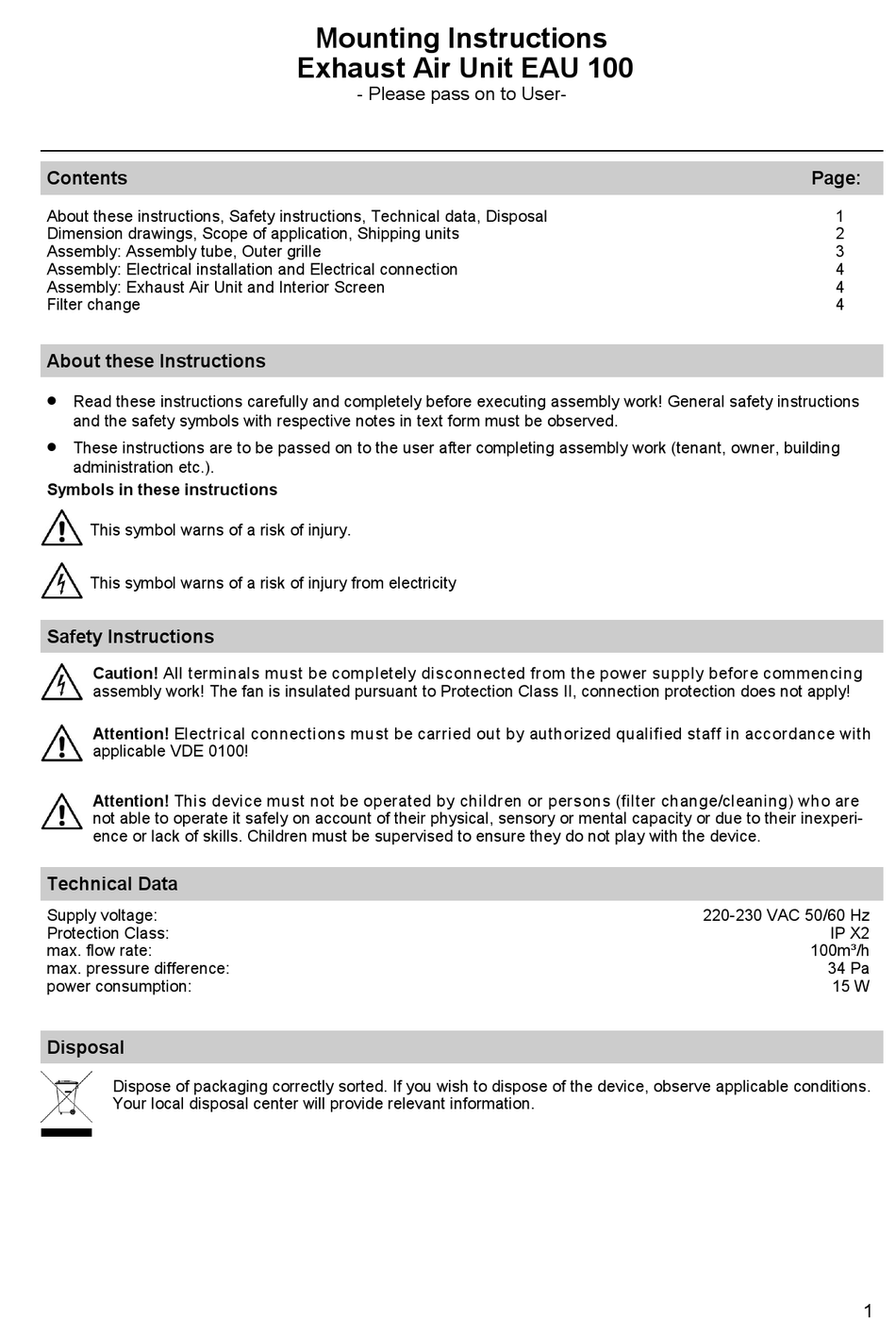

Lunos EAU 100 Mounting Instructions

Contents
About these instructions, Safety instructions, Technical data, Disposal
Dimension drawings, Scope of application, Shipping units
Assembly: Assembly tube, Outer grille
Assembly: Electrical installation and Electrical connection
Assembly: Exhaust Air Unit and Interior Screen
Filter change
About these Instructions

Read these instructions carefully and completely before executing assembly work! General safety instructions
and the safety symbols with respective notes in text form must be observed.

These instructions are to be passed on to the user after completing assembly work (tenant, owner, building
administration etc.).
Symbols in these instructions
This symbol warns of a risk of injury.
This symbol warns of a risk of injury from electricity
Safety Instructions
Caution! All terminals must be completely disconnected from the power supply before commencing
assembly work! The fan is insulated pursuant to Protection Class II, connection protection does not apply!
Attention! Electrical connections must be carried out by authorized qualified staff in accordance with
applicable VDE 0100!
Attention! This device must not be operated by children or persons (filter change/cleaning) who are
not able to operate it safely on account of their physical, sensory or mental capacity or due to their inexperi-
ence or lack of skills. Children must be supervised to ensure they do not play with the device.
Technical Data
Supply voltage:
Protection Class:
max. flow rate:
max. pressure difference:
power consumption:
Disposal
Dispose of packaging correctly sorted. If you wish to dispose of the device, observe applicable conditions.
Your local disposal center will provide relevant information.
Mounting Instructions
Exhaust Air Unit EAU 100
- Please pass on to User-
Page:
1
2
3
4
4
4
220-230 VAC 50/60 Hz
IP X2
100m³/h
34 Pa
15 W
1
