Installation Instructions

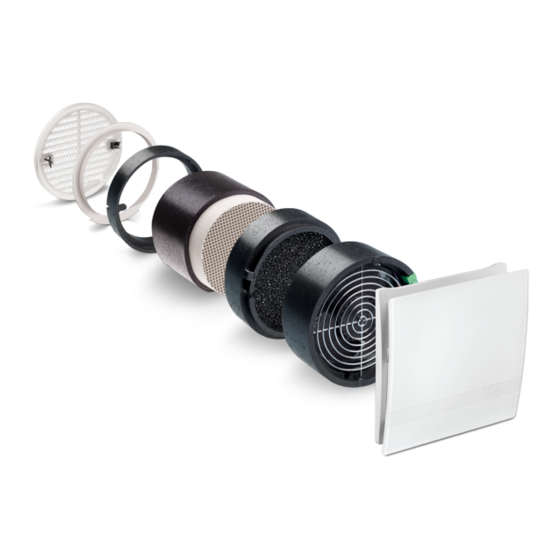

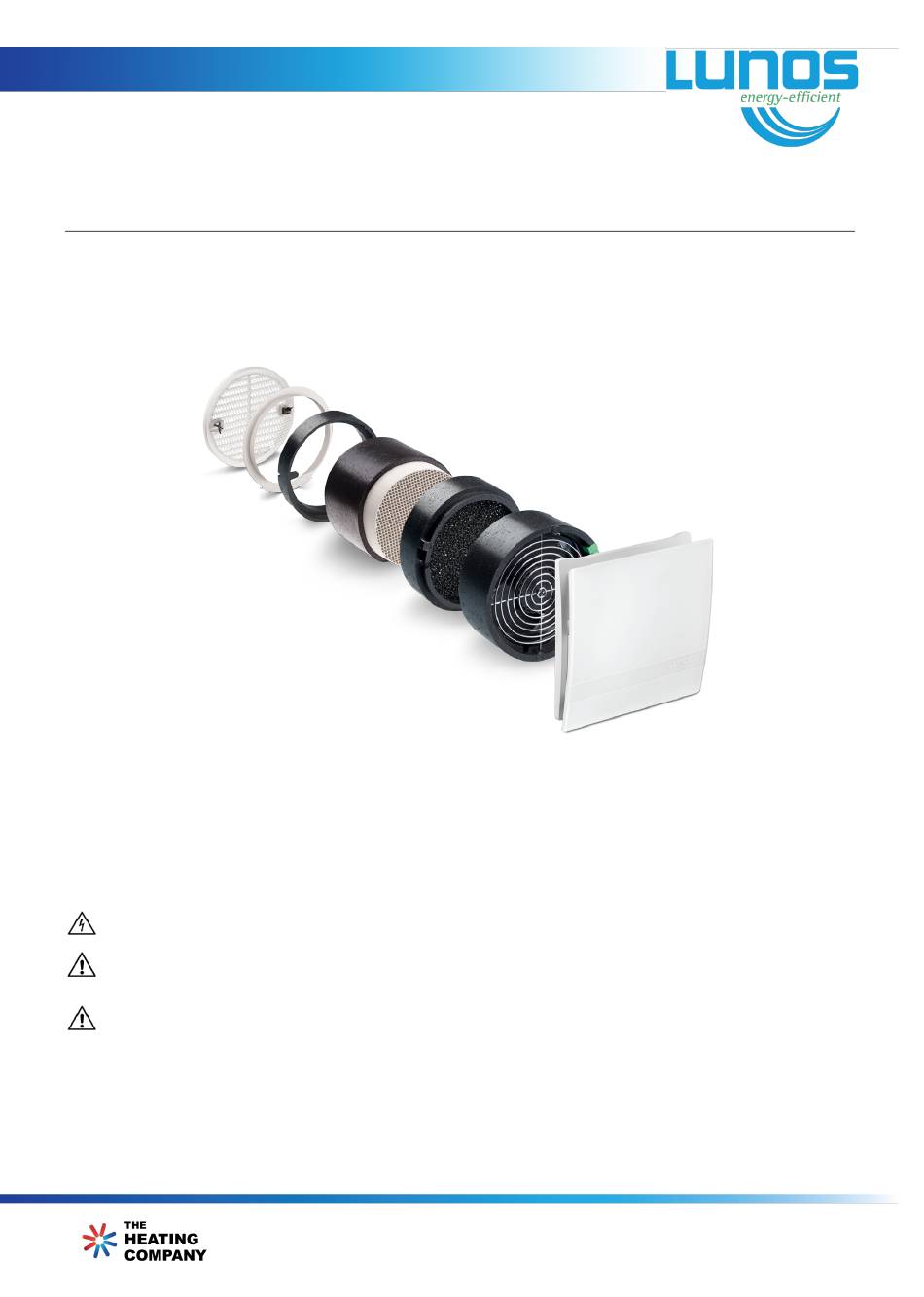

e² 60 Decentralized Ventilation System with Heat Recovery
Safety instructions
Beware: Any assembly work to the ventilation device may only be carried out after disconnecting all phases of supply voltage. The
ventilation device is fitted with protective insulation according to Protection Class II.
Attention: The electric connection may only be made by authorised qualified personnel and according to the applicable version of
VDE 0100.
Attention: This device may not be operated by children and persons (filter replacement/ cleaning) who are not able to operate the
device safely due to their psychical, sensory or mental abilities or their inexperience or lack of knowledge. Children should be supervised
to ensure that they do not play with the device.
Supply Voltage:
230VAC 50Hz
Device Voltage:
12V DC SELV
Protection Rating:
IP22
Volume Flow:
min. 5m³/h – max. 60m³/h
Sound Power Level:
10 dB - 48 dB
Wiring:
KAT6, KAT5e or KNX cables (For SIPS panel house – KAT 6 ISZH, CAT5e ISZH or KNX ISZH)
Installation Instructions
2/65 Ellice Road, Wairau Valley, Auckland 0629
Ph. 09-443 6996
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lunos e2 Neo
Summary of Contents for Lunos e2 Neo
- Page 1 Installation Instructions Installation Instructions e² 60 Decentralized Ventilation System with Heat Recovery Safety instructions Beware: Any assembly work to the ventilation device may only be carried out after disconnecting all phases of supply voltage. The ventilation device is fitted with protective insulation according to Protection Class II. Attention: The electric connection may only be made by authorised qualified personnel and according to the applicable version of VDE 0100.
- Page 2 THE HEATING COMPANY 24 mm Transformer 48 mm deep 50 mm 48 mm Diameter - 70 mm Flush Box 18 W Transformer 85 mm 90 mm 85 mm Smart Comfort Controller 60 W Transformer *** Please check for any visual damages for prior installing.
- Page 3 Installation Position: Lunos e² only functions in pairs in bi-directional operation. The device operates 50 seconds in supply air operation, the other 50 seconds in exhaust air operation at the set air flow volume. This ensures that the total of the supply air volume is equal to the exhaust air volume.
- Page 4 THE HEATING COMPANY Assembly: Step 1 - Make the wall openings for the assembly tubes (Ø160 mm) by using hole saw bit Ø162 mm. When installing in timber frame, fix to timber and seal with Proclima grommet (which is supplied) to building wrap or like. Tube to have slight 3 mm fall to outside.
- Page 5 THE HEATING COMPANY Step 3 - connection For CAT6 cable entry to e device the slit, as per image below, to be minimum 26mm long and 4mm wide. This can be anywhere on the front face as e unit can rotate in tube. Front face flush with GIB Cut out 4 mm...
- Page 6 THE HEATING COMPANY Step 4 Interior grilles 9/IBE – Standard interior grille 9/IBS – Sound absorbing interior grille Rotate inner grill 180 ° to snap into position. Fit round filter. Interior grille Press fit into PVC tube...
- Page 7 THE HEATING COMPANY Filter Replacement/Cleaning: Indication by the Event LED illuminating permanently when the filter requires replacing/cleaning. Remove internal grille, remove filter, insert new or cleaned filter (the filter can be cleaned with dishwashing detergent) re-attach internal grille. To reset the filter replacement LED, press and hold the Event button for 3 seconds. Event LED/ button NOTES:...
- Page 8 Ventilation Under Tile Heating In-Concrete Heating Infrared Ceiling Heating Panel Heaters Mirror Demisters Controllers Self Levelling Compound Insulate Mat www.theheatingcompany.co.nz 0800HEATING (432 846) 2/65 Ellice Road, Wairau Valley, Auckland 0629 Ph. 09-443 6996...
