Assembly: Assembly Tube - Lunos ego Installation Manual

Assembly: Assembly Tube

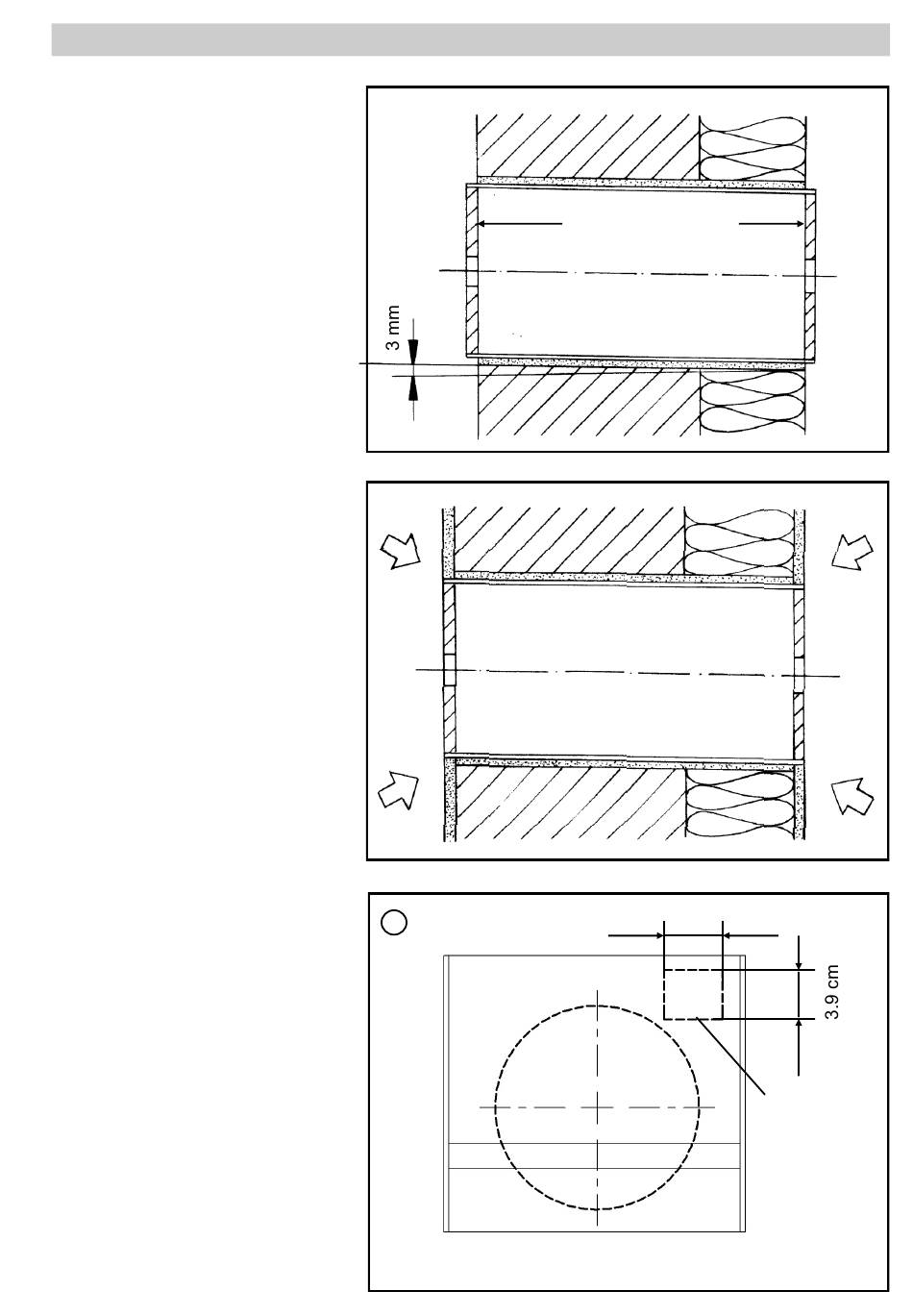

Prepare wall openings for the as-
sembly tubes (e.g. via core drill
hole, core bit Ø162 mm). If neces-
sary, shorten the tube to the instal-
lation length required.
Make sure there is a slight projec-
tion of the tube on both sides to
bridge the plaster thickness (after
plastering, the tube must be flush
with the plaster). Insert the tube
and seal it all-round (Assembly
adhesive Order No. 038 733).
Apply the inside and outside plas-
ter.
Prepare the cable for the device
connection in the designated sec-
tion (e.g. J-Y (ST)Y4x2x0,8).Cable
length approx. 100 to 120 mm. Use
the drilling template.
①
Inside
②
Inside
3
Plaster cover
4.6 cm
Core drill hole or
wall installation
tube
EN
Out-
side
Outside
Section for
device
cables
15
