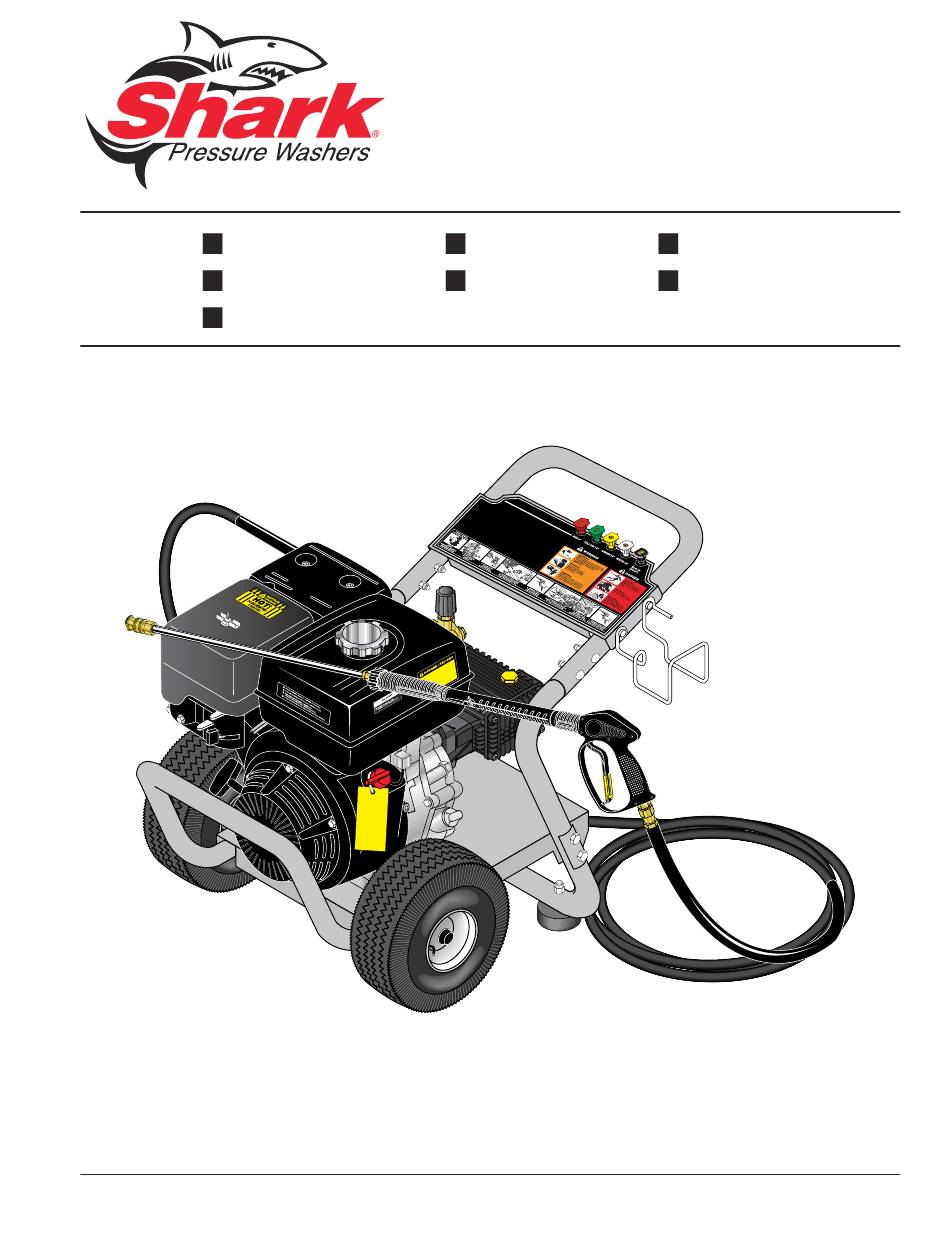

- Page 1 MODEL: DG OPERATING INSTRUCTION AND PARTS MANUAL DG-2323 DG-2324 DG-2527 DG-3030 DG-3532 DG-3835 DG-2132 For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com 97-720...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information ..............3-4 Component Identification ................ 5 Assembly Instructions ................6 Operating Instructions ................7-8 Applying Detergent and General Operating Techniques ......9 Shut Down and Clean-Up ..............10 Storage ....................10 Troubleshooting ................11-12 Preventative Maintenance ..............13 Oil Change Record ................ -
Page 3: Important Safety Information
We reserve the right to make changes at any time with- 3. Transport/repair with fuel tank EMPTY or with fuel out incurring any obligation. shut-off valve OFF. 4. Do not place machine near flammable objects as IMPORTANT SAFETY the engine is hot. 5. - Page 4 9. Do not operate with spray gun in the off position for extensive periods of time as this may cause dam- age to the pump. 10. The best insurance against an accident is precau- tion and knowledge of the machine. 11.
-
Page 5: Component Identification
COMPONENT IDENTIFICATION Pressure Nozzle Pump Unloader Protector Pump Detergent Bucket (not Inlet included) Screen Spray Gun Garden Hose (not included) Straight Through Wand Starter Grip Trigger High Pressure Hose Pump — Develops high pressure. High Pressure Hose — Connect one end to water pump discharge nipple and the other end to spray gun. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Bolts Carriage Hose/Gun Handle Bolt Storage Bracket Alignment Holes Frame Assy. Studs STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt through STEP 3: Attach the spray gun/ frame of the pressure washer. the holes from the outside of the unit hose storage handle, and Note: It may be necessary to move and attach a nut from the inside of the... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Stick Oil Dipstick Oil Window STEP 1: Check engine oil level. Oil level should be level with the bottom of STEP 2: Remove shipping cap and the oil filler neck. Be sure the machine is level when checking the oil level. install oil dipstick. - Page 8 OPERATING INSTRUCTIONS (CON'T) On-Off Switch STEP 8: Turn the engine switch to "On" position. STEP 9: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pres- On Briggs engines, move the throttle lever to "Fast" sure and repeat step.
-
Page 9: Applying Detergent And General Operating Techniques
into a bucket of clean water, then run the pressure APPLYING DETERGENT AND washer in low pressure for 1-2 minutes. GENERAL OPERATING THERMAL PUMP PROTECTION TECHNIQUES If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, WARNING: Some detergents WARNING circulating water in the pump can reach high tempera-... -
Page 10: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suction STEP 2: Turn off the engine. STEP 3: Turn off water tube from container and insert into supply. one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Insufficient water supply. Closed Use larger garden hose; clean inlet water LOW OPERATING faucet. Inlet hose kinked screen. Open faucet. PRESSURE Clogged inlet hose strainer Check plumbing system for leaks. Retape leaks with teflon tape. Faulty or misadjusted unloader Adjust unloader for proper pressure. - Page 12 TROUBLESHOOTING l i o l l i h t i l l i . l e l l u o i t t l i f i f l e t l e t l t l i f o i t l i t .
-
Page 13: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 14: Exploded View
EXPLODED VIEW 97-718, 96-716, 97-720, 97-719 • REV. 2/04... -
Page 15: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION Engine, See Specifications Page 19 4-12803500 Nozzle, 3.5 0° Red 4-12803515 Nozzle, 3.5 15° Yellow Pump, See Specifications Page 19 4-12803525 Nozzle, 3.5 25° Green Unloader, See Specifications Page 19 4-12803540 Nozzle, 3.5 40°... - Page 16 EXPLODED VIEW PARTS LIST CONT. ITEM PART NO. DESCRIPTION 90-10201 Bolt, 3/8” x 2-1/4” HH, Grd. 5 90-10072 Bolt, 5/16” x 2” NC, Carriage, Zinc 90-4001 Washer, 5/16” Flat 90-2001 Nut, 5/16” ESNA, NC 95-07104962 Handle, Bumper, Chrome (PC Models) 95-07104922 Handle, Bumper, Red (DB, DC, DG Models) 2-01413...
- Page 17 VERTICAL EXPLODED VIEW 25, 26 - On Reverse Side of Plate To Detergent Supply 97-718, 96-716, 97-720, 97-719 • REV. 2/04...
- Page 18 VERTICAL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4-011106 Wand, 18" M22 x 1/4”QC 4-02080000 Tube, 1/4" x 1/2" Clear Vinyl 4 ft. 4-011137 Spray Gun, SK2, 3/8" Inlet, Lance 2-1904 Strainer, Plastic, 1/4" Hose W/M22 CPLR Barb 2-2115...
- Page 19 SPECIFICATIONS Machine Pressure Nozzle Pump Unloader Engine Engine Model (PSI) Size Hose p/n Part # Part # Part # DB-232336 2300 4-0203030C 5-2102 5-0101 DB-232439 2400 4-0203050C 5-1863 5-3304 5-0104 DB-252739 2700 4-0203050C 5-1863 5-3304 5-01041 DB-303039 3000 4-0203050C 5-1260 5-3304 5-0102 DB-353239...
-
Page 21: Warranty
TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. - Page 22 Form #97-720 • Revised 2/04 • Printed in U.S.A.
