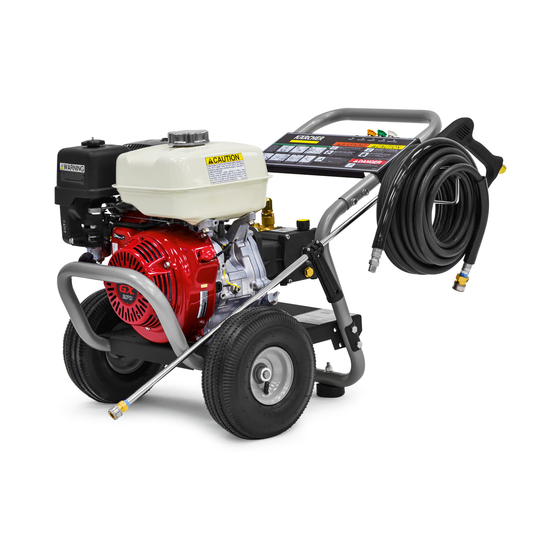

Shark DG-2323 Operating Instructions And Parts Manual
Dg series
Hide thumbs
Also See for DG-2323:
- Operating and parts manual (32 pages) ,
- Operating instructions and parts manual (34 pages) ,
- Operating instructions and parts manual (22 pages)
Table of Contents
Related Manuals for Shark DG-2323
Summary of Contents for Shark DG-2323
- Page 1 MODEL: DG OPERATING INSTRUCTION AND PARTS MANUAL DG-2323 DG-2324 DG-2527 DG-3030 DG-3532 DG-3835 DG-2123 For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com 97-720...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information ..............3-4 Component Identification ................ 5 Assembly Instructions ................6 Operating Instructions ................7-8 Applying Detergent and General Operating Techniques ......9 Shut Down and Clean-Up ..............10 Storage ....................10 Troubleshooting ................11-12 Preventative Maintenance ..............13 Oil Change Record ................ -
Page 3: Important Safety Information
IMPORTANT SAFETY INSTRUCTIONS We reserve the right to make changes at any time with- 3. Transport/repair with fuel tank EMPTY or with fuel out incurring any obligation. shut-off valve OFF. 4. Do not place machine near flammable objects as CAUTION: To reduce the risk of CAUTION the engine is hot. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 7. High pressure developed by these machines will 12. Read engine safety instructions provided. cause personal injury or equipment damage. Use WARNING: Keep water spray WARNING caution when operating. Do not direct discharge away from electric wiring or fa- stream at people, or severe injury or death will re- tal electric shock may result.
-
Page 5: Component Identification
COMPONENT IDENTIFICATION Detergent Injector Unloader Pressure Nozzle Pump Protector Detergent Bucket (not included) Pump Inlet Screen Spray Gun Garden Hose (not included) Trigger Straight Through Wand Starter Grip High Pressure Hose Pump — Develops high pressure. High Pressure Hose — Connect one end to water pump discharge nipple and the other end to spray gun. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Carriage Hose/Gun Handle Storage Bolt Bracket Alignment Bolts Holes Frame Assy. Studs STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt STEP 3: Attach the spray gun/hose frame of the pressure washer. through the holes from the outside storage handle and bracket to Note: It may be necessary to move of the unit and attach a nut from the... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Dipstick Oil Dipstick Oil Window STEP 1: Check engine oil level. Oil level should be level with the bottom of STEP 2: Remove shipping cap and the oil filler neck. Be sure the machine is level when checking the oil level. install oil dipstick. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS (CON'T) On-Off Switch STEP 8: Turn the engine switch to "On" position. STEP 9: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pres- On Briggs engines, move the throttle lever to "Fast" sure and repeat step. -
Page 9: Applying Detergent And General Operating Techniques
DETERGENT AND GENERAL CLEANING TECHNIQUES tures. When the water reaches this temperature, the WARNING: Some detergents may WARNING pump protector engages and cools the pump by dis- be harmful if inhaled or in- charging the warm water onto the ground. This ther- gested, causing severe nausea, mal device prevents internal damage to the pump. -
Page 10: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suction STEP 2: Turn off the engine. STEP 3: Turn off water tube from container and insert into supply. one gallon of fresh water. Slide nozzle forward for low pressure or to con- nect black detergent nozzle. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Insufficient water supply. Closed Use larger garden hose; clean inlet water PRESSURE faucet. Inlet hose kinked screen. Open faucet. Clogged inlet hose strainer Check plumbing system for leaks. Retape leaks with teflon tape. Faulty or misadjusted unloader Adjust unloader for proper pressure. - Page 12 TROUBLESHOOTING l i o l l i h t i l l i . l e l l u o i t t l i f i f l e t l t l i f e t l o i t l i t .
-
Page 13: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 14: Exploded View
EXPLODED VIEW E-Z Start Valve for 9, 11, 13 HP Honda Engines Only Model 232336 3-23326 97-718, 96-716, 97-720, 97-719 • REV. 8/04a... -
Page 15: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION Engine, See Specifications Page 19 Hose, High Pressure, See Specifications Page 19 Pump, See Specifications Page 19 4-011137 Spray Gun, SK2, 3/8" Inlet, Lance W/M22CPLR Unloader, See Specifications Page 19 4-011106 Wand, 18"... - Page 16 EXPLODED VIEW PARTS LIST CONT. ITEM PART NO. DESCRIPTION 95-07102382 Hanger, Hose/Wand 90-100473 Bolt, 1/4"-20 x 1-3/4", Carriage, Zinc 95-07104950 Handle, Lower Grab, Chrome (PC Models) 95-07104920 Handle, Lower Grab, Red (DB, DC, DG Models) 2-01041 Pad, Soft Rubber 90-40125 Washer, 3/8"...
-
Page 17: Vertical Exploded View
VERTICAL EXPLODED VIEW 25, 26 - On Reverse Side of Plate To Detergent Supply 97-718, 96-716, 97-720, 97-719 • REV. 8/04a... -
Page 18: Vertical Exploded View Parts List
VERTICAL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4-011106 Wand, 18" M22 x 1/4" QC 90-4001 Washer, 5/16" Flat 4-011137 Spray Gun, SK2, 3/8" Inlet, 90-2001 Nut, 5/16" ESNA Lance W/M22 CPLR 2-0103 Grommet, Rubber 2-2115 Nipple, 3/8"... -
Page 19: Specifications
SPECIFICATIONS Machine Pressure Nozzle Pump Unloader Engine Engine Model (PSI) Size Hose p/n Part # Part # Part # DB-232336 2300 4-0203030C 5-2102 5-0101 DB-232439 2400 4-0203050C 5-1863 5-3305 5-0104 DB-252739 2700 4-0203050C 5-1863 5-3305 5-01041 DB-303039 3000 4-0203050C 5-1260 5-3029 5-0102 DB-353239... - Page 21 FITNESS FOR A PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. While SHARK attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product.
- Page 22 Form #97-720 • Revised 8/04a • Printed in U.S.A.
