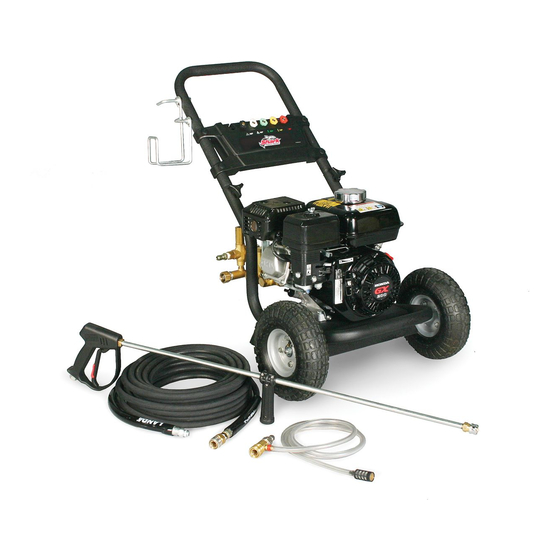

OPERATOR'S MAN U AL
MODEL #
DD-232336
DD-232337
DD-252737
To locate your local Shark Commercial Pressure Washer Dealer nearest you,
visit www.shark-pw.com
ORDER #
1.107-134.0
1.107-135.0
1.107-136.0
8.919-009.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD-232336 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shark DD-232336

Summary of Contents for Shark DD-232336

  • Page 1 OPERATOR’S MAN U AL MODEL # ORDER # DD-232336 1.107-134.0 DD-232337 1.107-135.0 DD-252737 1.107-136.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.shark-pw.com 8.919-009.0...

  • Page 3: Table Of Contents

    CONTENTS Important Safety Information ..............4-6 Component Identifi cation ................. 7 Assembly Instructions ................8 Operating Instructions.................9-10 Detergent and General Operating Techniques ........11 Shut Down and Clean-Up ..............12 Storage ....................12 Troubleshooting ................13-14 Preventive Manteinance ................ 15 Hose and Spray Gun Assembly and Parts list ........16 Oil Change Record ................

  • Page 4: Important Safety Information

    INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. WARNING: This machine ex- WARNING ceeds 85 db appropriate ear We reserve the right to make changes at any time protection must be worn. without incurring any obligation. Owner/User Responsibility: The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings...
  • Page 5 IMPORTANT SAFETY INFORMATION Gasoline engines on mobile or portable equipment WARNING: Grip cleaning wand WARNING shall be refueled: securely with both hands before starting. Failure to do this could a. outdoors; result in injury from a whipping b. with the engine on the equipment stopped; wand.
  • Page 6 IMPORTANT SAFETY INFORMATION WARNING: Be extremely careful WARNING when using a ladder, scaffolding or any other relatively unstable location. The cleaning area should have adequate slopes and drainage to reduce the pos- sibility of a fall due to slippery RISK OF INJURY FROM FALLS WHEN USING surfaces.

  • Page 7: Component Identification

    COMPONENT IDENTIFICATION Hose Detergent Quick Coupler COMET G SERIES Detergent PUMP PUMP Injector Unloader Quick Twist Coupler Hose Pressure Detergent Nozzle AXIAL PUMP Pump Protector Pump Spray Gun Detergent Inlet Bucket Screen (not included) Garden Hose (not included) Straight Through Wand Trigger ENGINE 160cc (5.0HP)

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Gun & Alignment Hose Holes Knob Hanger Handle Bolt Frame Assy. STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt STEP 3: Attach the Gun & hose frame of the pressure washer. Note: through the holes from the back of hanger and insert nuts from inside.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Dipstick Oil Dipstick Oil Window STEP 1: Check engine oil level. Oil level should be level with the bottom STEP 2: Remove shipping cap of the oil fi ller neck. Be sure the machine is level when checking the oil and install oil dipstick.
  • Page 10 OPERATING INSTRUCTIONS On-Off Switch STEP 8: Turn the engine switch to "On" position. STEP 9: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pres- On Briggs engines, move the throttle lever to "Fast" sure and repeat step.

  • Page 11: Detergent And General Operating Techniques

    DETERGENT AND GENERAL CLEANING TECHNIQUES WARNING: Some detergents THERMAL PUMP PROTECTION WARNING may be harmful if inhaled or If you run the engine on your pressure washer for 1-2 ingested, causing severe nau- minutes without pressing the trigger on the spray gun, sea, fainting or poisoning.

  • Page 12: Shut Down And Clean-Up

    SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suc- STEP 2: Turn off the engine. STEP 3: Turn off water tion tube from container and insert supply. into one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Insuffi cient water supply. Closed Use larger garden hose; clean inlet water PRESSURE faucet. Inlet hose kinked screen. Open faucet. Clogged inlet hose strainer Check plumbing system for leaks. Retape leaks with tefl on tape. Faulty or mis-adjusted unloader Adjust unloader for proper pressure.
  • Page 14 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION ENGINE OPERATES Not enough gas or engine oil Fill tank with gas. Check oil level. FOR 15 MINUTES Vapor lock developed by heat of day Keep gas tank full to avoid vapor locking. THEN STOPS Obstruction in fuel fi...

  • Page 15: Preventive Manteinance

    PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance.

  • Page 16: Hose And Spray Gun Assembly And Parts List

    HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 8.739-133.0 Hose, 3/8” X 25’ 1 Wire Tuff-Skin (5 HP PD Models) 8.739-026.0 Hose, 3/8” X 50’ 1 Wire Tuff-Skin (6.5 HP PD Models) 8.739-106.0 Hose, 3/8”...

  • Page 17: Oil Change Record

    OIL CHANGE RECORD Check pump oil and engine oil level before fi rst use of your new pressure washer. Estimated Operating Estimated Operating Date Oil Changed Hours Since Last Date Oil Changed Hours Since Last Month/Day/Year Oil Change Month/Day/Year Oil Change 8.919-009.0 •...

  • Page 18: Warranty

    Dealer or other sales or service outlet to another purchaser. Shark products that are sold by any distributor or retailer that is not an official authorized dealer or retailer of Shark products. Defects caused by acts of nature and disaster including, but not limited to, floods, fires, wind, freezing, earthquakes, tor- nadoes, hurricanes and lightning strikes.
  • Page 20 Form #8.919-009.0 • DD • Revised 12/10 • Printed in U.S.A. or Mexico...

This manual is also suitable for:

Dd-232337Dd-252737
