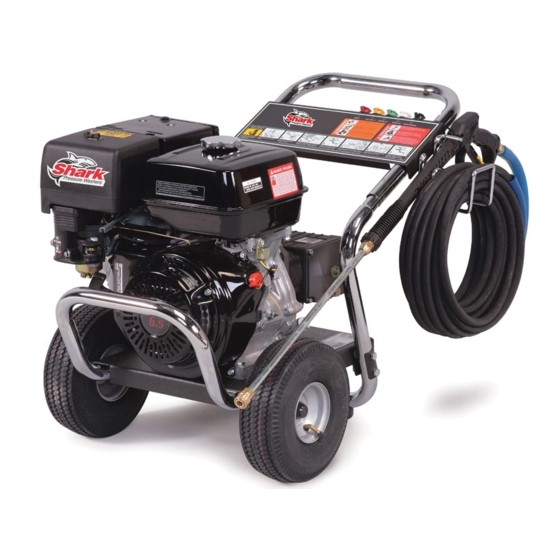

  • Page 1 OPERATOR’S MAN U AL MODEL # ORDER # DG-232437 1.107-138.0 DG-252737 1.107-139.0 DG-303037 1.107-140.0 DG-383537 1.107-141.0 DG-354037 1.107-225.0 DG-232437 1.107-244.0 DG-252737 1.107-245.0 DG-354037 1.107-246.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.shark-pw.com 8.919-011.0...

  • Page 3: Table Of Contents

    CONTENTS Important Safety Information ..............4-6 Component Identifi cation ................. 7 Assembly Instructions ................8 Operating Instructions.................9-10 Applying Detergent and General Operating Techniques ......11 Shut Down and Clean-Up ..............12 Storage ....................12 Troubleshooting ................13-14 Preventative Maintenance ..............15 Hose & Spray Gun Assembly ..............16 Oil Change Record ................

  • Page 4: Important Safety Information

    INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. WARNING: Risk of asphyxiation. WARNING Use this product only in a well We reserve the right to make changes at any time without incurring any obligation. ventilated area. 5.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING: Keep wand, hose, WARNING: High pressure de- WARNING WARNING and water spray away from veloped by these machines will electric wiring or fatal electric cause personal injury or equip- shock may result. ment damage. Keep clear of nozzle.
  • Page 6 IMPORTANT SAFETY INFORMATION 23. Machines with shut-off spray gun should not be operated with the spray gun in the off position for extensive periods of time as this may cause dam- age to the pump. 24. Protect discharge hose from vehicle traffi c and sharp objects.

  • Page 7: Component Identifi Cation

    COMPONENT IDENTIFICATION Pump for 141.0 & 225.0 Detergent Injector Unloader Pressure Nozzle Pump Protector Detergent Bucket (not included) Pump Inlet Screen Spray Gun Garden Hose (not included) Trigger Straight Through Wand Starter Grip High Pressure Hose Pump — Develops high pressure. High Pressure Hose —...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Carriage Hose/Gun Handle Bolt Storage Bracket Alignment Bolts Holes Frame Assy. Studs STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt STEP 3: Attach the spray gun/hose frame of the pressure washer. through the holes from the outside storage handle and bracket to Note: It may be necessary to move of the unit and attach a nut from...

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Dipstick Oil Dipstick Oil Window STEP 1: Check engine oil level. Oil level should be STEP 2: Remove shipping cap and install oil dipstick. level with the bottom of the oil fi ller neck. Be sure the Check pump oil level by using dipstick or observe oil machine is level when checking the oil level.
  • Page 10 OPERATING INSTRUCTIONS (CON'T) On-Off Switch STEP 8: Turn the engine switch to "On" position. STEP 9: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pressure On Briggs engines, move the throttle lever to "Fast" and repeat step.

  • Page 11: Applying Detergent And General Operating Techniques

    DETERGENT AND GENERAL CLEANING TECHNIQUES WARNING: Some detergents THERMAL PUMP PROTECTION WARNING may be harmful if inhaled or If you run the engine on your pressure washer for 1-2 ingested, causing severe nau- minutes without pressing the trigger on the spray gun, sea, fainting or poisoning.

  • Page 12: Shut Down And Clean-Up

    SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suc- STEP 2: Turn off the engine. STEP 3: Turn off water tion tube from container and insert supply. into one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Insuffi cient water supply. Closed Use larger garden hose; clean inlet water PRESSURE faucet. Inlet hose kinked screen. Open faucet. Clogged inlet hose strainer Check plumbing system for leaks. Re-tape leaks with Tefl on tape. Faulty or improperly adjusted Adjust unloader for proper pressure.

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION ENGINE Not enough gas or engine oil Fill tank with gas. Check oil level. OPERATES FOR Vapor lock developed by heat Keep gas tank full to avoid vapor locking. 15 MIN. THEN of day STOPS Obstruction in fuel fi...

  • Page 15: Preventative Maintenance

    PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance.

  • Page 16: Hose & Spray Gun Assembly

    HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 8.711-722.0 Hose, 3/8' X 50', 2 Wire, Blue, W/Coupler & Nipple 8.710-384.0 Gun, St-1500 8.750-247.0 Gun, M407 (354037) 9.802-219.0 Wand Assy, Side Grip w/1/4" Coupler 9.104-030.0 Quick connect nozzle Kit (040) (383537) ▲Nozzle, 0003, Red...

  • Page 17: Oil Change Record

    OIL CHANGE RECORD Check pump oil and engine oil level before fi rst use of your new pressure washer. Estimated Operating Estimated Operating Date Oil Changed Hours Since Last Date Oil Changed Hours Since Last Month/Day/Year Oil Change Month/Day/Year Oil Change DG •...
  • Page 18 Form # 8.919-011.0 • Revised 01/14A • Printed in U.S.A. or Mexico...

This manual is also suitable for:
