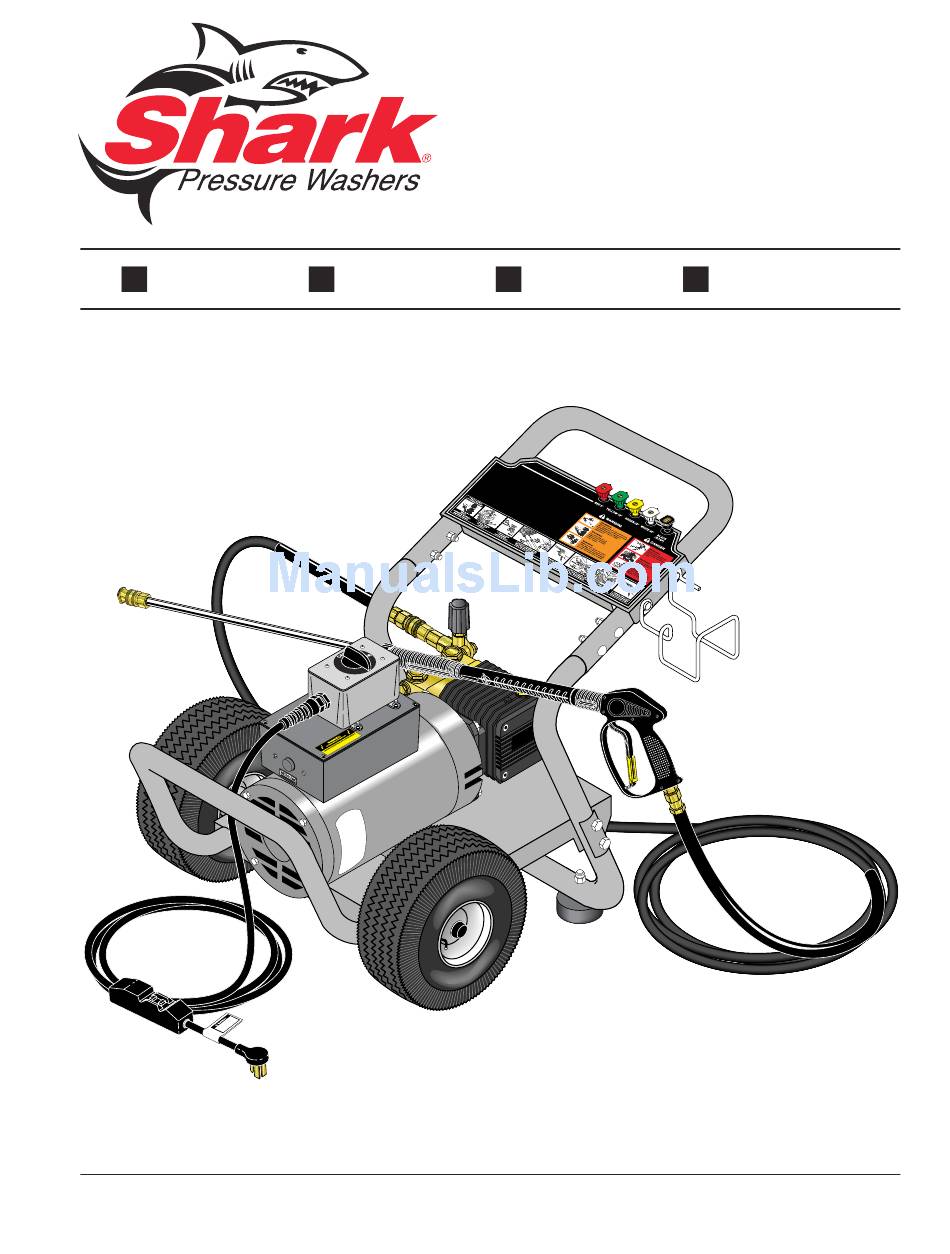

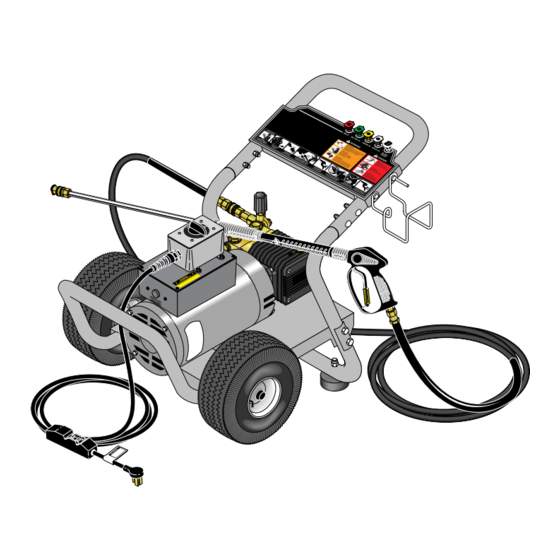

- Page 1 MODEL: DE OPERATING INSTRUCTION AND PARTS MANUAL DE-2010 DE-2015 DE-3010 DE-3520 For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com 97-710...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information ..............3-4 Component Identification ................ 5 Assembly Instructions ................6 Operating Instructions ................7 Applying Detergent and General Operating Techniques ......8 Shut Down and Clean-Up ............... 9 Storage ....................9 Troubleshooting ..................10 Preventative Maintenance ..............11 Oil Change Record ................ -
Page 3: Important Safety Information
WARNING: Flammable liquids INTRODUCTION WARNING can create fumes which can ig- nite causing property damage Thank you for purchasing this Pressure Washer. or severe injury. All information in this manual is based on the latest WARNING: Risk of explosion — product information available at the time of printing. - Page 4 11. Manufacturer will not be liable for any changes made to our standard machines, or any compo- nents not purchased from us. 12. Be certain all quick coupler fittings are secured be- fore using pressure washer. 13. Never run pump dry or leave spray gun closed longer than 5 minutes.
-
Page 5: Component Identification
COMPONENT IDENTIFICATION Pump Water Supply Protector Pressure (not included) Nozzle Unloader Soap Nozzle Quick On/Off Coupler Switch Wand Hanger Pump Detergent Safety Bucket (not Latch included) Garden Hose (not included) High Pressure GFCI Hose Spray Gun and Wand Pump — Develops high pressure. High Pressure Hose —... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Carriage Bolts Hose/Gun Handle Bolt Storage Bracket Alignment Holes Frame Assy. Studs STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt STEP 3: Attach the spray gun/hose frame of the pressure washer. through the holes from the outside storage handle, and bracket to Note: It may be necessary to move of the unit and attach a nut from... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Cold Water Source Garden Hose STEP 1: Connect garden hose to the STEP 2: Trigger the spray gun to STEP 4: Connect to appropriate cold water source and turn water on eliminate trapped air then wait power supply. Push reset button on completely. -
Page 8: Applying Detergent And General Operating Techniques
DETERGENTS AND GENERAL OPERATING TECHNIQUES WARNING: Some detergents may WARNING THERMAL PUMP PROTECTION be harmful if inhaled or in- gested, causing severe nausea, If you run the motor on your pressure washer for 3-5 fainting or poisoning. The harm- minutes without pressing the trigger on the spray gun, ful elements may cause prop- circulating water in the pump can reach high tempera- erty damage or severe injury. -
Page 9: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP On/Off Switch STEP 1: Remove deter- STEP 2: Turn off machine STEP 3: Turn off water STEP 4: Press trigger to re- gent suction tube from by turning switch to “OFF” supply. lease water pressure. container and insert into switch. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air seepage. NORMALLY BUT Check valves sticking Check and clean or replace if necessary. PRESSURE LOW ON Unloader valve seat faulty Check and replace if necessary. INSTALLATION Nozzle incorrectly sized Check and replace if necessary. -
Page 11: Preventative Maintenance
PREVENTATIVE MAINTENANCE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 12: Exploded View
EXPLODED VIEW 66, 67 16 15 (Models 352009A) 6, 7 66, 67 14, 65 201507D (Model 4-20021A, 2-15021D 65, 14 301007D 352007A) 301009D 301509D 201007D, 201009D, 2-11021D 96-720, 97-708, 97-709, 97-710 • REV. 8/04... -
Page 13: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION See Specifications Page 18, For Nozzle Size 90-1991 Screw, 10/32" x 1/2" BHSOC 4-12803015 Nozzle, 1503, Yellow Black (201507D, 2-15021D, 4-12803025 Nozzle, 2503, Green 301007D, 301009D, 301509A, 4-12803040 Nozzle, 4003, White 352007A, 352009A, 4-12803000... - Page 14 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 90-1016 Bolt, 3/8" x 1" NC 90-4001 Washer, 5/16" Flat, SAE (All except 352009A) 95-07104922 Handle, Bumper, Red (EP, DL 90-4002 Washer, 3/8" SAE, Flat DE Models) (All except 352009A) 95-07104962 Handle, Bumper, Chrome (PDE Models) 90-1006 Bolt, 5/16"...
-
Page 15: Hose And Spray Gun Assembly
HOSE AND SPRAY GUN ASSEMBLY HOSE AND SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2-2002 Coupler, 3/8" Female 4-16540 Nozzle, Brass Soap 2-0121 Quick Coupler O-Ring 3-12021 Injector, Det., Non-Adjust, 4-0203050C Hose, 50' x 3/8" w/Coupler 3-5GPM, .083 (EP, PDE, DL Models) 2-9040... -
Page 16: Pde4-30025A, B, C Exploded View
PDE4-30025A, B, C EXPLODED VIEW 96-720, 97-708, 97-709, 97-710 • REV. 8/04... -
Page 17: Pde4-30025A, B, C Parts List
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 95-07104924 Retainer, Bracket 6-03904 Enclosure, Fiberglass, NEMA4X 2-1902 Strainer, Inlet Garden Hose 1 11-1042 Label, Ground 6-010690 Cord w/GFCI, 240V, 30 Amp 10-08015A Label, PE Off/On, For Push TRC (4-3000A) Buttons 6-0109 Cord, Service, SEO 10/4 (4-3000B) 15 ft. -
Page 18: Specifications
SPECIFICATIONS Machine Pessure Nozzle Pump Pump Unloader Motor Motor Model (PSI) Size Hose p/n Part # Model Part # Part # EP-201009D 1000 4-0203050C 5-1802 HC205AL 5-3303 1-1/2 5-1004M EP-301009D 1000 4-0203050C 5-1806 HC235 5-3303 5-1073 EP-301509A 1500 4-0203050C 5-1806 HC235 5-3303 5-10081... - Page 19 FITNESS FOR A PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. While SHARK attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product.
- Page 20 Form #97-710 • Revised 8/04 • Printed in U.S.A.
