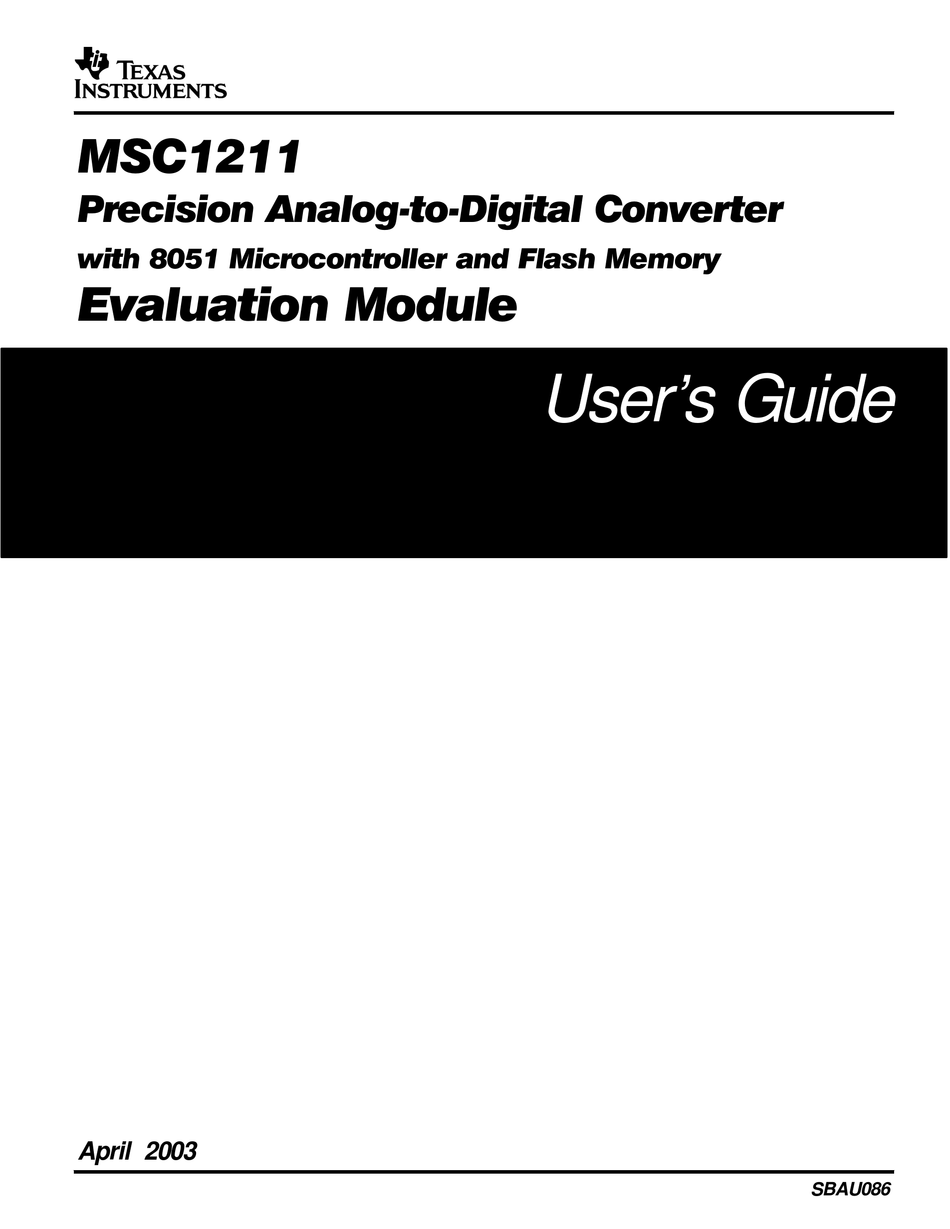

- Page 1 MSC1211 Precision Analog to Digital Converter with 8051 Microcontroller and Flash Memory Evaluation Module User’s Guide April 2003 SBAU086...
- Page 2 Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
- Page 3 EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
- Page 4 EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Copyright 2003, Texas Instruments Incorporated Mailing Address: Texas Instruments Post Office Box 655303...
-
Page 5: Read This First
This users guide describes the function and operation of the MSC1211EVM. This manual will help you quickly set up the evaluation module and its accom- panying software, so that you can rapidly test and evaluate the MSC1211. A complete circuit description, as well as schematic diagram and bill of materi- als, is included. - Page 6 Contents Related Documentation From Texas Instruments Data Sheets: MSC1211 REG1117–5.0,–3.3 ADS8325 MAX3243CPWR TPS3837L30DBVT,TPS3838L30DBVT SLVS292 SN74HC573ADW SN74AC10PWR SN74AHC1G08DBVR SN74AHC138PWR FCC Warning This equipment is intended for use in a laboratory test environment only. It gen- erates, uses, and can radiate radio frequency energy and has not been tested...
-
Page 7: Table Of Contents
..............MSC1211 Description . - Page 8 Contents Figures 1–1. MSC1211EVM Block Diagram 2–1. RIDE (Raisonance Integrated Development Environment) 2–2. Tool Advanced Options ............4–1.
-
Page 9: Introduction
This chapter provides an overview of the MSC1211 evaluation module and software. Topic MSC1211 Description ......... . -
Page 10: Msc1211 Description
C interface, a 16-bit PWM output, data flash memory, 1,280 bytes of data RAM, dual UARTS, and dual DPTR registers. The MSC1211 has an enhanced 8051 core that only requires 4 clock cycles per machine cycle. It has extra timers, watchdog, brownout and low-voltage detect circuits, power management control and hardware breakpoint registers. -
Page 11: Analog Inputs
A prototyping area is provided on the MSC1211EVM. This may be used to in- corporate additional circuitry, such as special reference or conditioning cir- cuits, into the system. All of the signals on the MSC1211 are brought to con- nector pads. Additionally, there are digital and analog power and ground holes in the prototyping area. -
Page 12: Getting Started
This chapter guides you through unpacking the MSC1211EVM and setting it up so you can begin working with it immediately. Topic Unpacking the MSC1211EVM ........Default Configration . -
Page 13: Unpacking The Msc1211Evm
Unpacking the MSC1211EVM 2.1 Unpacking the MSC1211EVM After unpacking the MSC1211EVM kit, check to make sure you received all of the items listed here: MSC1211EVM board 9V “wall–wart” power supply 9-pin, D-sub, male-female serial cable This user’s guide Software CD-ROM 2.2 Default Configuration Although much of the MSC1211EVM operation is controlled by the host PC, some configuration must be done directly on the board, using four jumpers... -
Page 14: Quick Start
Description Some reference documentation on the 8051 An HTML tutorial from 8052.com A Visual demonstration of the operation of the MSC1211 Several Application notes for the MSC family BASIC–52 and MDL–BASIC Some information on C–Programming on 8051s Program for loading HEX files into the MSC Flash... -
Page 15: Ride (Raisonance Integrated Development Environment)
Quick Start Figure 2–1. RIDE (Raisonance Integrated Development Environment) Refer to the RIDE documentation and help menus for more information about how to interact with the RIDE environment. When a program is compiled, it can be immediately downloaded into the MSC1211EVM by using the MSC down- load utility program. -
Page 16: Operand Definitions
/Bbaud Definition hex file, {NODE3} in the RIDE will substitute the hex file (required) MSC1211 Xtal Clock frequency (required) PC Comm port 1, 2, 3 or 4 (required) Baud rate (standard rates), otherwise it is computed from /Xfreq If this flag is present the configuration bytes will be erased This flag requests a terminal window after download. -
Page 17: Operation
This chapter describes each function of the MSC1211EVM, and how to use the accompanying software to program and use the MSC1211. Topic Jumpers ........... . . -
Page 18: Jumpers
JMP6 1 to 2 Onboard DV 2 to 3 External DV AGND REF IN– VDAC1 REF IN+/REFOUT Open Memory A14 MSC1211 A15 MSC1211 A14 Memory A15 Memory /WE MSC1211 /WE Default Disconnected Disconnected C SDA signal Disconnected C SCL signal Disconnected 1–2... -
Page 19: Jmp1: Short R1
3 and 4 will provide the other required connection for use of the internal reference for the MSC1210. Only pins 1 and 2 are needed for the MSC1211. Pins 4 and 6 can be connected together, if you want to use as the reference voltage. -
Page 20: Switches
RESET Switch Switch SW1 is a miniature pushbutton that, when pressed, forces the MSC1211 RST line high. When released, the MSC1211 enters a reset cycle. If communication becomes disrupted between the host and the board, or the board is unresponsive, pressing RESET will return the system to normal op- eration. -
Page 21: Sw5: Emulation And Control Switch
SW5 provides the means to break several signals so that they can be con- trolled by an emulator plugged into J14. This switch also provides a means of setting the operating mode of the MSC1211. Table 3–3. SW5: Configuration Control Switch... -
Page 22: I/O Connectors And Signals
I/O Connectors and Signals 3.3 I/O Connectors and Signals The various connectors on the MSC1211EVM are described in this section. 3.3.1 J8: Serial0 RS-232 Connector The host PC communicates with the MSC1211EVM through this connector, which is a D-shell type, 9-pin female, pinned out in the usual manner. Some of the flow control lines are used for special purposes by the MSC1211EVM board;... -
Page 23: J9: Serial1 Rs-232 Connector
3.3.2 J9: Serial1 RS-232 Connector This connector is available for use with the second UART in the MSC1211. Only the TD and RD lines are used. The DTR pin is connected to the DSR pin, and the RTS pin is connected to the CTS pin. -
Page 24: J6, Jmp5, Jmp6, B1: Power Connectors
I/O Connectors and Signals 3.3.3 J6, JMP5, JMP6, B1: Power Connectors The MSC1211EVM features a flexible power supply. Externally generated power, the onboard regulator circuitry and supplied wall-wart, or a 9V battery can all be used to supply power. Furthermore, the separated analog and digital power supplies can be powered differently;... -
Page 25: J4: Analog Inputs
Terminal block J4 is the main analog input to the MSC1211EVM, as is defined in Table 3–8. One terminal is provided for each of the nine MSC1211 differen- tial inputs. Each terminal is connected to the MSC1211 through a 1k resistor. -
Page 26: Tp1-6: Test Points
3.3.6 TP1–6: Test Points The test points can be used to monitor certain signals on the board. For information on the signals connected directly to the MSC1211, consult the MSC1211 datasheet (SBAS267) located at www.ti.com. Table 3–10.TP1–6: Test Points Test Point... -
Page 27: Programming And Host Communication
Programs can be loaded into the 32K bytes of flash memory using the serial port (Serial0). The MSC1211 has 1,380 bytes of on–chip RAM. Extra RAM is available through the use of the 128K RAM (U9). 64K of RAM is directly ad- dressable, with P1.4 providing the means for bank switching. -
Page 28: Physical Description
Physical Description This chapter contains the schematic drawings and PCB layouts for the MSC1211EVM board. Topic Schematics ........... Component Locations . -
Page 29: Schematics
Schematics 4.1 Schematics Figure 4–1. Processor Schematic... -
Page 30: Power And Analog Inputs Schematic
Schematics Figure 4–2. Power and Analog Inputs Schematic Physical Description... -
Page 31: Component Locations
Component Locations 4.2 Component Locations Figure 4–3. Printed Circuit Board Layout... -
Page 32: Power-Supply Ce Certification
Power-Supply CE Certification 4.3 Power-Supply CE Certification Physical Description... -
Page 33: Bill Of Materials
4.4 Bill of Materials Table 4–1. Bill of Materials Item No. Quantity Value Designator R1–R11, R32, R33 R14–R17 R19, R27 R12, R13 R18, R22 100k R23–R26, R28–R31 Not installed R20, R21 18pF C9, C14 10000pF 0.1 F C1, C3, C11, C15–C21, C23, C25–C32 0.33 F... - Page 34 Description Piezoelectric ceramic buzzer Panasonic 22.1184MHz quartz crystal thru-hole 5V 22.1184MHz programmable oscillator SMD 16-bit SAR analog-to-digital converter (ADC) Texas Instruments 256K I 2 C CMOS serial EEPROM MicroChip +5V 1A low-dropout voltage regulator Texas Instruments 24-bit 8-channel intelligent ADC...
- Page 35 Table 4–1. Bill of Materials (continued) Item No. Quantity Value Designator Not installed Not installed J5, J10, J11 Not installed J7, J16 Not installed Not installed J0, J1, J2, J3 JMP1–JMP4 JMP5, JMP6 SW1, SW2, SW4 SW3, SW5 TP2–TP19 R20, R21, X1 Description Vendor 1 x 15 single row socket .050 spacing...
