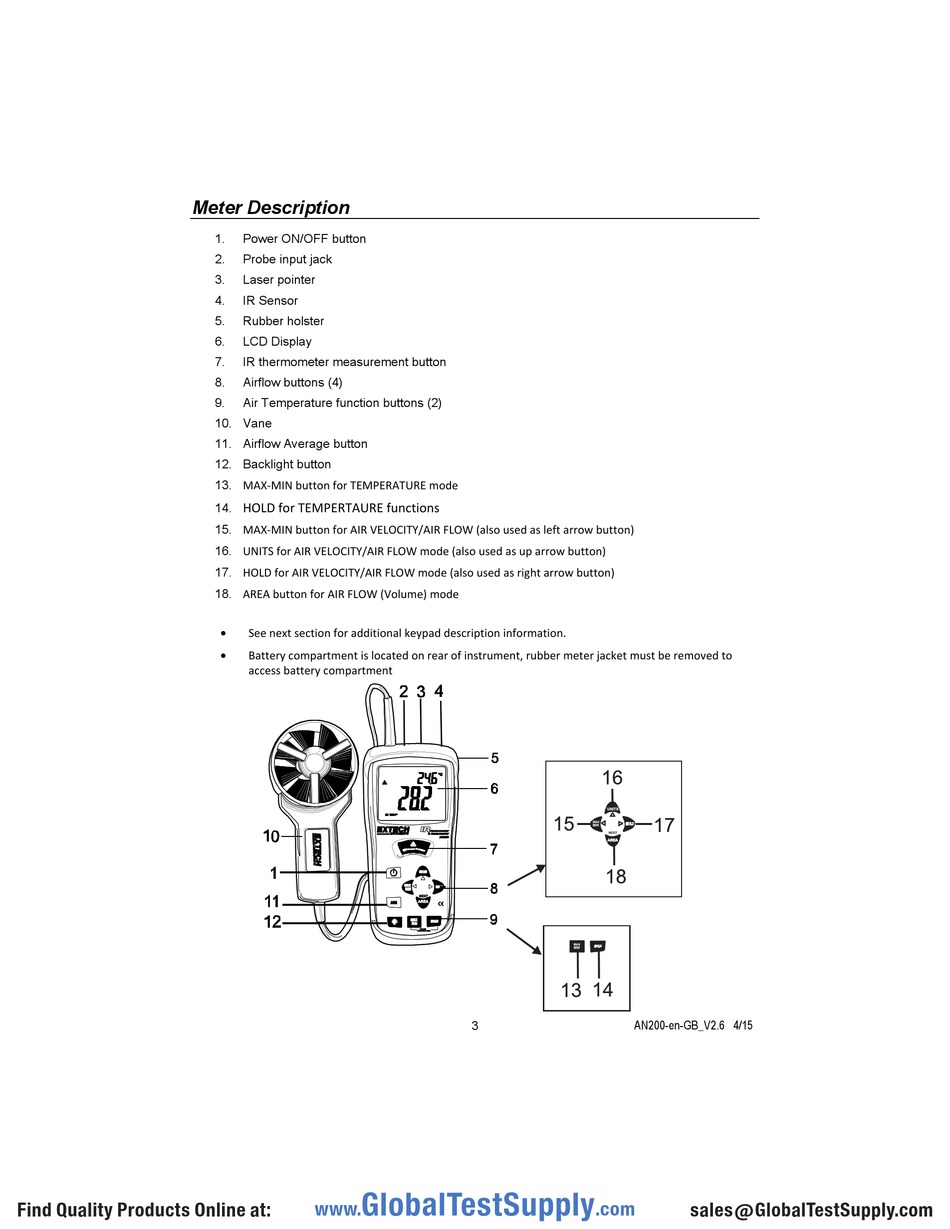

Meter Description
Find Quality Products Online at:
1.
Power ON/OFF button
2.
Probe input jack
3.
Laser pointer
4.
IR Sensor
5.
Rubber holster
6.
LCD Display
7.
IR thermometer measurement button
8.
Airflow buttons (4)
9.
Air Temperature function buttons (2)
10. Vane
11. Airflow Average button
12. Backlight button
13. MAX‐MIN button for TEMPERATURE mode
14.
HOLD for TEMPERTAURE functions
15. MAX‐MIN button for AIR VELOCITY/AIR FLOW (also used as left arrow button)
16. UNITS for AIR VELOCITY/AIR FLOW mode (also used as up arrow button)
17. HOLD for AIR VELOCITY/AIR FLOW mode (also used as right arrow button)
18. AREA button for AIR FLOW (Volume) mode
See next section for additional keypad description information.
Battery compartment is located on rear of instrument, rubber meter jacket must be removed to
access battery compartment
