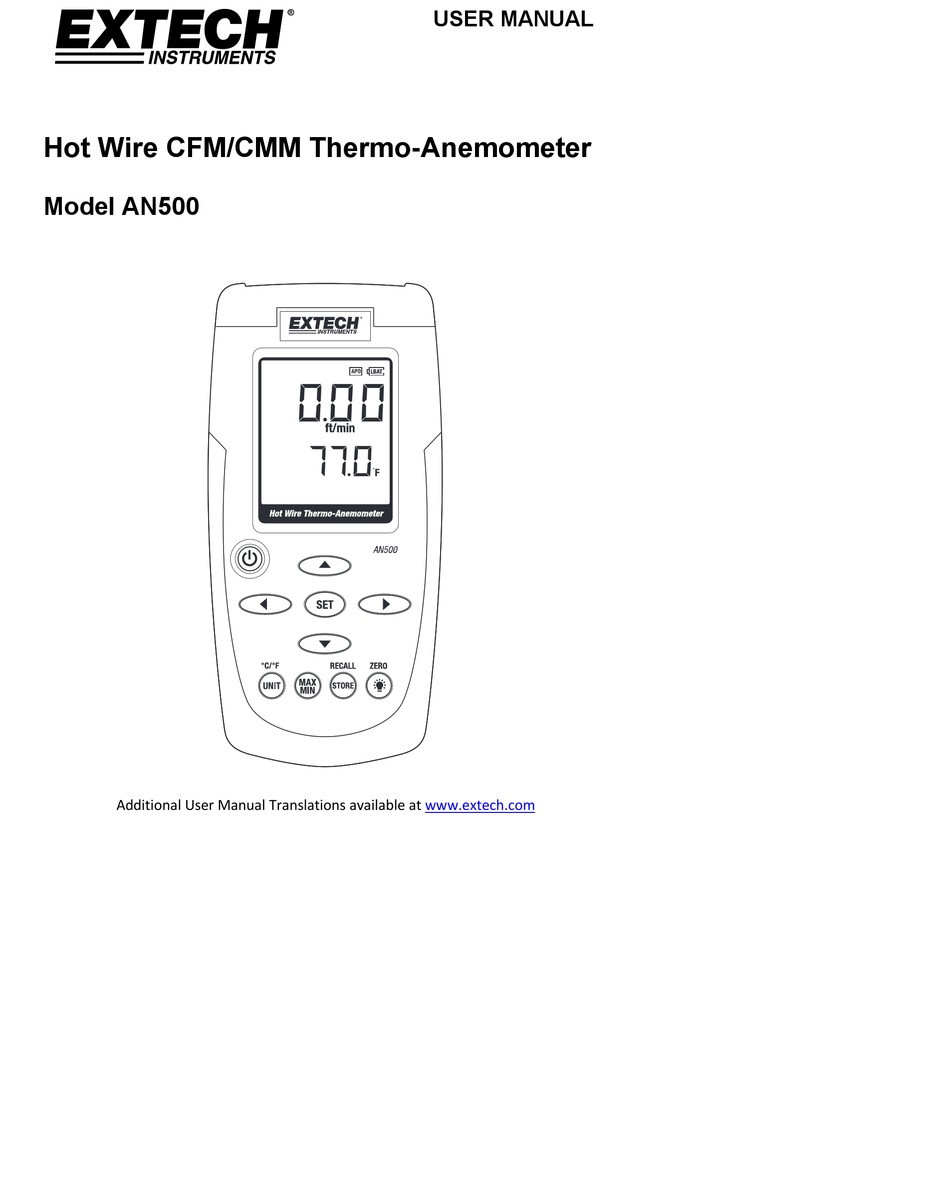

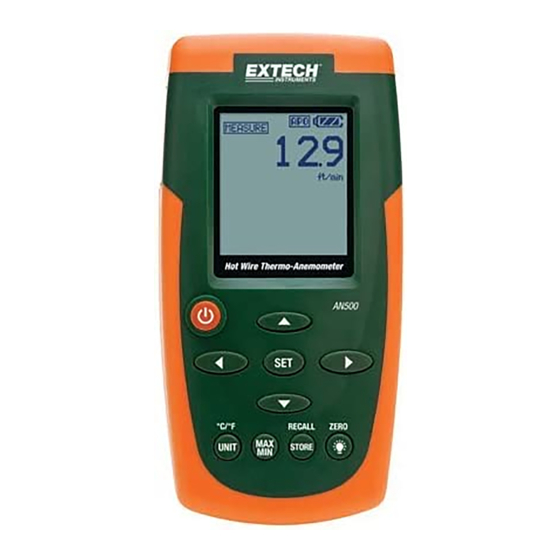

- Page 1 USER MANUAL Hot Wire CFM/CMM Thermo-Anemometer Model AN500 AdditionalUserManualTranslationsavailableatwww.extech.com...
- Page 2 UNIT button MAX-MIN button STORE-RECALL button ZERO and Backlight button 10. Down arrow button 11. Right arrow button 12. Up arrow button 13. LCD display Note: Battery compartment and Tilt Stand located on the back of the meter AN500-en-GB_v2.0 10/16...
- Page 3 Probe Connector Probe cabling Telescoping sensor handle - Extends to 39” (1m) Sensor opening (Air must flow through this opening against the white dot shown on item 5 below for proper measurement) White dot air direction Ergonomic handle grip AN500-en-GB_v2.0 10/16...
-
Page 4: Operation
5. Press the MAX-MIN button again to continue recording. The MAX, MIN, and AVG icons will continue flashing. 6. Press and hold the MAX-MIN button for 1 second to exit the MAX-MIN mode and return to the normal operating screen. The MAX-MIN-AVG readings will be reset. AN500-en-GB_v2.0 10/16... - Page 5 3. Press the RECALL/STORE button once more to exit recall mode. The meter will display 'End' and return to normal operation. Up to 9500 readings can be stored in the AN500 Clear Stored Readings While in RECALL mode press and hold ZERO button for 1 second to clear stored data. The meter will display 'Clr' then return to normal operation.
- Page 6 Please dispose of batteries responsibly; always observe local, state, and federal regulations with regard to battery disposal. Never dispose of batteries in a fire. Batteries may explode or leak. Never mix battery types. Always install new batteries of the same type. AN500-en-GB_v2.0 10/16...
-
Page 7: Specifications
R : 1.5-101.5cm (0.5) or 0.6-40.0in. (0.2) Note: m/s: meters per second; km/h: kilometers per hour; ft/min: feet per minute; Knot: nautical miles per hour; MPH: miles per hour; CMM: cubic meters per min; CFM: cubic ft per min AN500-en-GB_v2.0 10/16... -
Page 8: Useful Equations And Conversions
0.5144 101.27 1.852 1.151 1 km/hr 0.2778 54.68 0.54 0.6214 1 MPH 0.447 0.869 1.6093 Copyright © 2014-2016 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com AN500-en-GB_v2.0 10/16...
