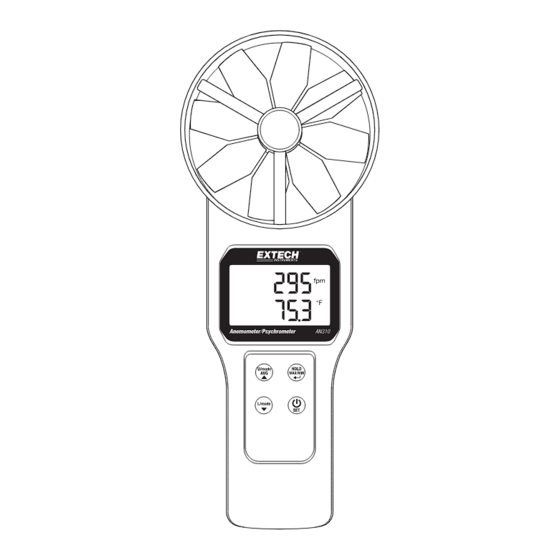

Large vane cfm/cmm anemometer / psychrometer
Hide thumbs Also See for AN310-NIST:

Advertisement

Quick Links

                                                  USER GUIDE


Large Vane CFM/CMM
Anemometer / Psychrometer


Model AN310

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN310-NIST and is the answer not in the manual?

Questions and answers

Summary of Contents for Extech Instruments AN310-NIST

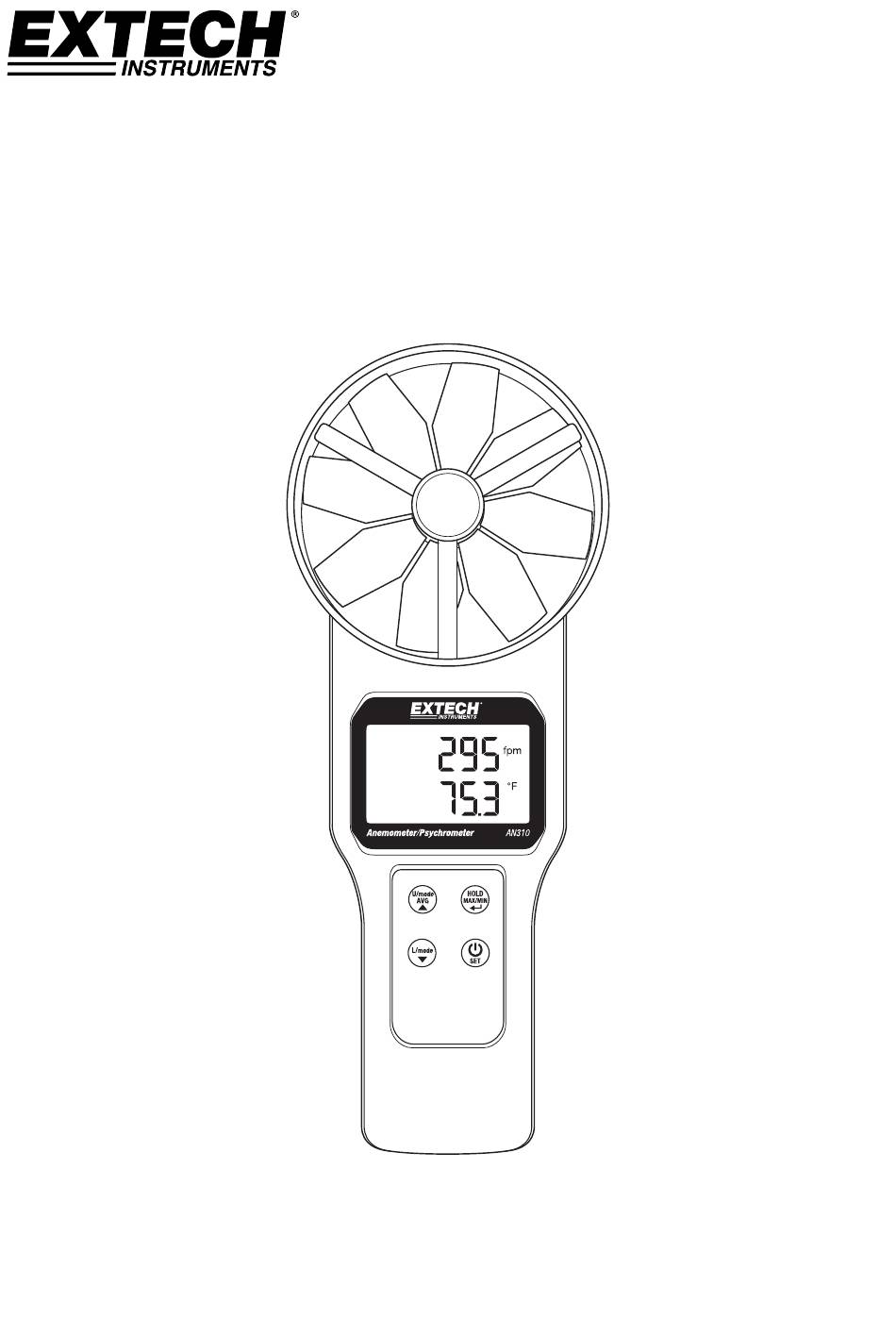

  • Page 1                                                   USER GUIDE      Large Vane CFM/CMM  Anemometer / Psychrometer       Model AN310 ...
  • Page 2 Introduction  ongratulations on your purchase of the Extech AN310 Vane Airflow Anemometer Psychrometer.  This instrument measures Air Velocity, Air Flow (volume), Air Temperature, Relative Humidity, Wet  Bulb Temperature, and Dew Point Temperature. The large, easy‐to‐read backlit LCD includes  primary and secondary displays plus numerous status indicators. The optional round and square  airflow cone allows for quick volume measurements. This meter is shipped fully tested and  calibrated and, with proper use, will provide years of reliable service. Please visit our website  (www.extech.com) to check for the latest version of this User Guide, Product Updates, and  Customer Support.  CAUTIONS   Improper use of this meter can cause damage to the meter and personal injury. Read and  understand this user manual before operating the meter.   Inspect the condition of the probe and the meter for any damage before operating the  meter. Repair or replace damage before use.   If the equipment is used in a manner not specified by the manufacturer, the protection  provided by the equipment may be impaired.   This device should not be made available to children. It contains hazardous objects as well  as small parts that can be accidentally swallowed. The meter’s batteries and packing  material can also be dangerous to children.   In the event that the meter is to be unused for an extended period of time, remove the  batteries to protect against battery leakage.   Expired or damaged batteries can be hazardous if allowed to come in contact with skin. Use  suitable hand protection in such cases.   Do not short circuit batteries or put batteries in fire.  AN310-en-GB_V1.5 11/15...
  • Page 3: Meter Description

    Meter Description   Meter Description (front)  Top line LCD display reading  Bottom line LCD display reading  U/mode AVG and up arrow button  L/mode and down arrow button  ON‐OFF (Power) and SET button  HOLD, MAX‐MIN, and left arrow (Enter) button  Unit of measure symbol for lower display row  Unit of measure symbol for upper display row  Air Velocity Vane  Meter Description (rear)  10. Air temperature and humidity sensors  11. Battery compartment                                AN310-en-GB_V1.5 11/15...
  • Page 4 Brief Keypad Description    Press momentarily to switch the meter ON or OFF. Press and hold this button for 2  seconds to enter or exit the Setup mode (refer to Setup mode section for details).    o Press momentarily to freeze the displayed reading (HOLD icon switches ON); press  HOLD MAX/MIN again momentarily to exit the HOLD mode (HOLD icon switches OFF)  o Press and hold for 2 seconds to display the MIN (minimum) reading; press and hold  again to display the MAX (maximum) reading; Press and hold a third time to exit  o This button is also used in the AVERAGE mode (for recording readings one at a time  or for a ‘timed’ recording session) and in the SETUP mode (for configuring the  meter). Please review the AVERAGE and SETUP mode sections for details      U/mode Press momentarily to toggle RH and Air Velocity readings. Press and hold for 2 seconds  ▲ to access the Multi‐Point Average and Timed Average modes (the AVG icon switches  ON). Detailed instructions for these modes are provided later in this guide. In the  Setup mode press to select a category or to increase a value (refer to Setup mode later  in this guide)      L/mode ▼ Press to toggle the lower display between air temperature, air volume, wet bulb  temperature, and dew point temperature readings; Also used in the Multi‐Point  Average, Timed Average, and Setup modes; refer to the AVERAGE and SETUP modes  sections later in this guide      U/mode               + ...
  • Page 5: Display Layout

    Display Layout  Lower Display digits (air volume, temperature, timer, or menu parameter displays)  Upper Display digits (air velocity, humidity, or menu display parameters)  Optional Cone or Funnel attachment icon  Units of measure for duct area programming  Vane indicator (flashes very briefly on power up)  Display HOLD icon  MAX mode icon  MIN mode icon  Recording icon  10. Elapsed Timer icon  11. AVG mode icon  12. Battery status icon  13. Unit of measure icons*    *Full list shown. Available units of measure icons vary by model.   AN310-en-GB_V1.5 11/15...
  • Page 6: Operation

    Operation  Air Velocity and Air Volume Measurements   button momentarily.  Press the POWER  1. Switch the meter ON by pressing the POWER  button again to switch the meter OFF.  2. Note that the meter will automatically enter the sleep mode after 20 minutes of inactivity.  To disable this feature: with the meter OFF, press and hold the POWER and the U/mode  buttons for 2 seconds. The LCD will display 'n' as it switches ON. Now the sleep mode is  disabled and the user must press the POWER button momentarily to switch the meter OFF.  3. When the meter is ON, the upper display can indicate  air velocity or relative humidity (use the U/mode button  to toggle). The lower display digits can indicate air flow,  dew point temperature, wet bulb temperature, or air  temperature (use the L/mode button to scroll).  4. Place the sensor in the air stream. The air must enter  the vane from the rear of the meter. The Air  Temperature and Relative humidity sensors are located at the center of the vane on the rear  of the meter.  5. Read the measurement data on the LCD. Air velocity readings are indicated in meters per  second (m/s) or feet per minute (fpm). Temperature readings (air, dew point, or wet bulb)  are indicated in °C/°F. Relative Humidity is indicated in %. Air flow (volume) is indicated in  CFM (cubic feet per minute) or CMM (cubic meters per minute). Use the L/mode button (for  lower display) and the U/mode button (for upper display) to scroll through the displayed  reading options.  6. To change between Imperial and Metric units of measure refer to the SETUP Mode section.  7. To measure the Air Volume of a duct, first measure the duct’s area (see the Appendix for   or cm area calculations) and then enter the area value in the meter’s SETUP mode in in .  After the area value has been entered, use the L/mode button to scroll to the air volume  display (CMM/CFM) on the lower digits. Place the meter in air stream to measure volume.  8. Optional: measure Air Volume with an airflow Cone or Square adaptor by first attaching one  of the adaptors to the meter (the optional cone adaptor kit includes a round and a square ...
  • Page 7: Data Hold Mode

    Relative Humidity, Wet Bulb, and Dew Point Measurements  The relative humidity sensor is built in to the center of the vane (rear of meter) and can be used to  measure relative humidity, dew point and wet bulb temperatures.  1. Press U/mode to switch to the %RH display if necessary. The measured humidity readings  will be displayed on the upper LCD digits.  2. Use the L/mode button to scroll through air temperature, dew point temperature, wet bulb  temperature, and air volume readings.  3. To measure the humidity using an offset reference value, please access the Setup mode and  input the offset value as described in the Setup mode section. The LCD will display the  measured value minus the offset value once the offset is programmed in the Setup mode.  Data Hold Mode  1. Press the HOLD button from the normal operating mode to freeze the current measurement.  2. The ‘HOLD’ icon will appear at the top of the LCD display.    3. Press HOLD again to return to normal operation. The ‘HOLD’ icon will switch OFF and the  meter will return to displaying readings in real time.  MAX/MIN Mode  The MAX‐MIN feature records the highest (MAX) and lowest (MIN) readings captured since the  MAX‐MIN mode was accessed.  1. Press and hold the MAX/MIN button for 2 seconds to begin displaying the lowest (minimum)  readings encountered since this mode was accessed. The ‘MIN’ icon will appear at the top of  the LCD display indicating that the readings shown are the lowest measured.  2. Press and hold the MAX/MIN button again for 2 seconds to display the maximum readings  encountered. The ‘MAX’ icon will appear on the LCD.    3. Press and hold this button again for 2 seconds to return to the normal mode of operation  (the ‘MIN’ and ‘MAX’ icons should switch OFF).  4. While viewing the MAX or MIN data, use the L/mode button to switch the display so that the  Air Volume MIN and MAX readings can be viewed also.  5. Press and hold MAX/MIN for 2 seconds to return to the normal operation mode.  Multi‐Point Average Mode  1.
  • Page 8: Entering Setup Mode

    Timed Average Mode  1. From the normal operating mode, press and hold the U/mode button for 2 seconds to enter  the Multi‐Point Average mode first and then press U/mode one more time momentarily to  enter the Timed Average Mode (the AVG and the elapsed timer   icons will switch ON).  2. Press HOLD to begin recording. The elapsed timer starts (as shown on the upper display  digits) and the clock icon flashes on and off. The longest amount of time the meter can  operate in Timed Average Mode is 19,999 seconds.  3. Press U/mode to stop the clock and to calculate the timed average. The upper LCD will  display the elapsed time and the lower LCD will show the averaged readings. The LCD will  flash the 'AVG' and the elapsed timer icons.  4. Press L/mode to view the average for other available measurements.  5. Press U/mode to return to the normal operating mode.    Setup Mode  Entering Setup Mode  Press and hold the POWER SET button for 2 seconds to enter Setup mode. Two options are  available: P1.0: Unit and P2.0: AREA.  Use the up/down buttons to toggle between P1.0 UNIT and P2.0 AREA options.  P1.0: Unit Selection  1. Once in setup mode, at the P1.0 UNIT display, momentarily press the HOLD button to enter  the P1.0 UNIT menu.  2. Use either arrow button to switch between metric and imperial units. The available units  are: air velocity (m/s, fpm), temperature (C, F), air volume (CMM, CFM), and area size (cm²,  inch²).   3. Press HOLD momentarily to return to the P1.0 display.  4. Press either arrow button to move to the P2.0 AREA option and follow the steps below.  P2.0: Area Size Selection (enter square inches or square centimeters)  1. In setup mode, from the P2.0 AREA display, press HOLD to enter the AREA setting menu. The  LCD will show ‘99999’ in the lower display with the first digit flashing.  2.
  • Page 9: Battery Replacement

    Battery Replacement  When        appears on the LCD, the AAA batteries must be replaced. The battery cover is located  on the back of the meter.  1. Open the rear battery compartment by carefully pulling down on the compartment’s latch.  2. The battery compartment cover should be completely removed before proceeding.  3. Replace the four (4) 1.5V ‘AAA’ batteries ensuring proper polarity.  4. Close the battery compartment before attempting to use the meter.    Never dispose of used batteries or rechargeable batteries in household waste.  As consumers, users are legally required to take used batteries to appropriate  collection sites, the retail store where the batteries were purchased, or wherever  batteries are sold.  Disposal: Do not dispose of this instrument in household waste. The user is  obligated to take end‐of‐life devices to a designated collection point for the disposal  of electrical and electronic equipment.     Other Battery Safety Reminders  o Never dispose of batteries in a fire. Batteries may explode or leak.  o Never mix battery types. Always install new batteries of the same type.  AN310-en-GB_V1.5 11/15...
  • Page 10: Specifications

    Specifications  Air Velocity  Ranges  Resolution  Accuracy  m/s (meters per sec)  0.2 – 30 m/s  0.01 m/s  ± (1.5%rdg + 0.3 m/s)  fpm (feet per minute)  40 – 5900 fpm  1 fpm  ± (1.5% rdg + 59 fpm)  Relative Humidity  Range  Resolution  Accuracy  RH  0.1%‐99.9%RH  0.1 RH  ±3%RH (10‐90%RH)  ±5%RH (<10% or >90%)  Air Flow  Ranges  Resolution  Area Range  0.1 up to 9999.9   CMM (cubic meters/min)  0‐99999 m /min  0 to 99999cm then 1.0  0.1 up to 9999.9   CFM (cubic ft/min)  0‐99999 ft /min  0 to 99999in then 1.0  Temperature  ...
  • Page 11: Error Messages

    Error Messages  Error codes and solutions    Air Temperature    E02: Temperature reading is lower than the low range limit. Place the meter in room  temperature for 30 minutes. If E02 continues, send the unit to Extech for repair.  E03: Temperature exceeds the high range limit. Place the meter in room temperature for 30  minutes. If E03 continues to appear, send the unit to Extech for repair.  E31: The A‐to‐D converter requires replacing. Send the meter to Extech Instruments for repair.    Relative Humidity (RH)  E04: Temperature error corrupted the humidity reading. Check the temperature error solution  section.  E11: RH calibration error. Send to Extech Instruments for repair.  E33: RH measurement circuit error. Send to Extech Instruments for repair.    Dew Point (DP) and Wet Bulb (WBT) Temperature  E04: Temperature or RH error. Check temperature or RH error solutions.    Air velocity    E03: Velocity exceeds the high range limit. Test the meter using an air velocity that is known  to be within the specified range limits. Send the unit to Extech for repair if the E03 error  message persists.    Air volume    E03: Reading exceeds the meter’s display limit. Check that the AREA setting is correct in the  Setup Mode.  E04: Air velocity error. Return meter to Extech for repair.    Other Errors    E32: Memory IC error. Reboot the meter and check it again; send it to Extech Instruments for  repair if the error message persists.    No display  Check that the batteries are making good contact and are aligned for correct polarity.  Replace batteries.   ...
  • Page 12 Appendix: Useful Equations and Conversions  Area equation for rectangular or square ducts      Height (H)  Area (A) = Width (W) x Height (H)                                   Width (W)    Area equation for circular ducts        Area (A) = pi x r Radius       = radius x radius Where pi = 3.14 and r       Cubic equations        CFM (ft /min) = Air Velocity (ft/min) x Area (ft )    CMM (m /min) = Air Velocity (m/sec) x Area (m ) x 60    NOTE: Measurements made in inches or centimeters must be converted to feet or meters before using these formulae.    Unit of Measure Conversion Table     ...
