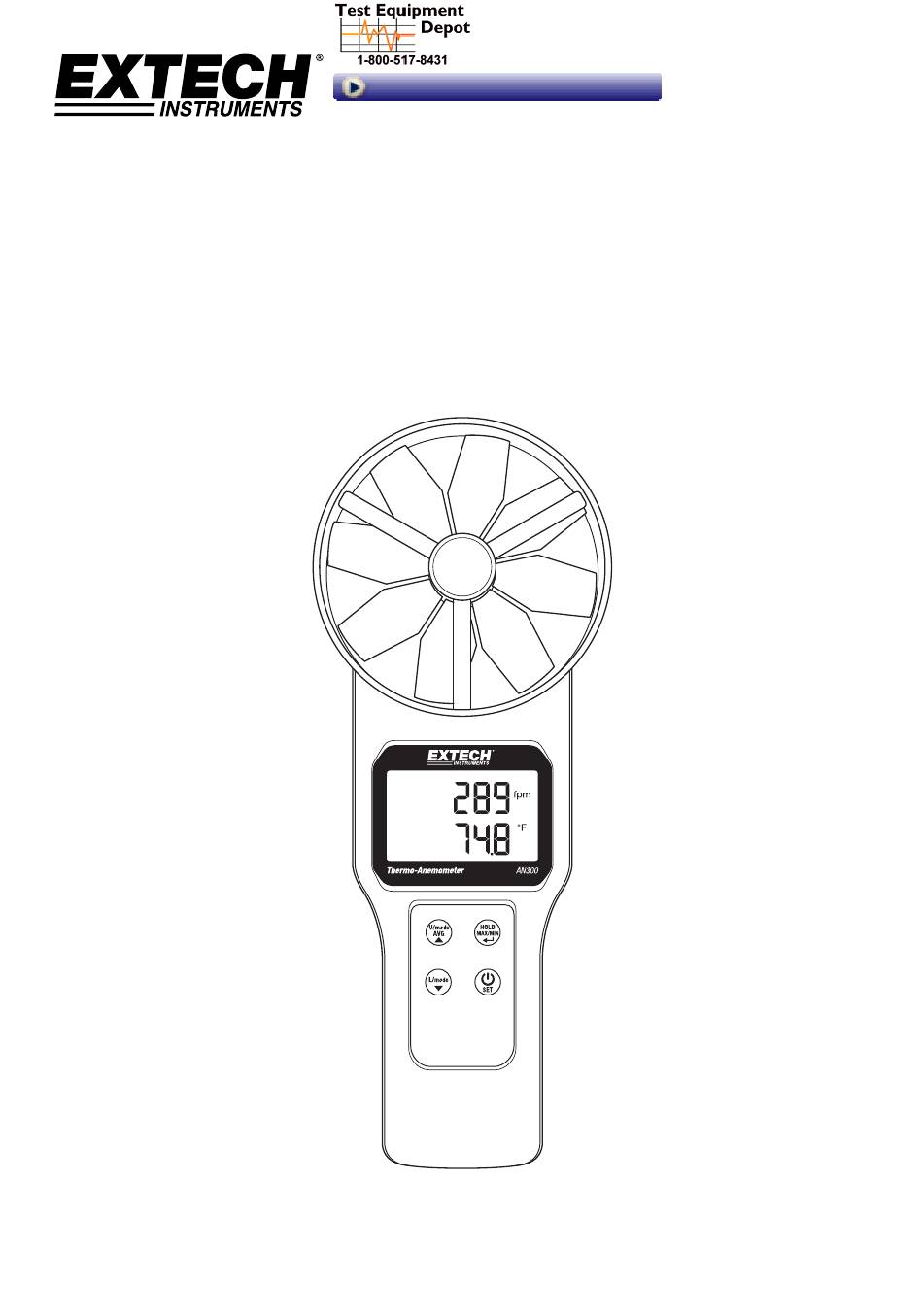

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 USER GUIDE Visit us at www.TestEquipmentDepot.com Large Vane CFM/CMM Thermo‐Anemometer Model AN300 ...
- Page 2 Introduction ongratulations on your purchase of the Extech AN300 Vane Airflow Anemometer. This instrument measures Air Velocity, Air Flow (volume), and Air Temperature. The large, easy‐ to‐read backlit LCD includes primary (upper) and secondary (lower) displays plus numerous status indicators. The optional cone and funnel airflow adaptors allow for quick volume measurements. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit the Extech Instruments website (www.extech.com) to check for the latest version of this User Guide, Product Updates, and Customer Support. CAUTIONS Improper use of this meter can cause damage to the meter and personal injury. Read and understand this user manual before operating the meter. Inspect the condition of the probe and the meter for any damage before operating the meter. Repair or replace damage before use. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. This device should not be made available to children. It contains hazardous objects as well as small parts that can be accidentally swallowed. The meter’s batteries and packing material can also be dangerous to children. In the event that the meter is to be unused for an extended period of time, remove the batteries to protect against battery leakage. Expired or damaged batteries can be hazardous if allowed to come in contact with skin. Use suitable hand protection in such cases. Do not short circuit batteries or put batteries in fire. ...
- Page 3 Descriptions Meter Description (front) Top line LCD display reading Bottom line LCD display reading U/mode AVG and up arrow button L/mode and down arrow button ON‐OFF (Power) and SET button HOLD, MAX‐MIN, and left arrow (Enter) button Unit of measure symbol for lower display row Unit of measure symbol for upper display row Air Velocity Vane Meter Description (rear) 10. Air temperature sensor 11. Battery compartment AN300‐EU‐EN v1.1 1/13 ...
- Page 4 o Press momentarily to freeze the displayed reading (HOLD icon switches ON); press HOLD MAX/MIN again momentarily to exit the HOLD mode (HOLD icon switches OFF) o Press and hold for 2 seconds to display the MIN (minimum) reading; press and hold again to display the MAX (maximum) reading; Press and hold a third time to exit o This button is also used in the AVERAGE mode (for recording readings one at a time or for a ‘timed’ recording session) and in the SETUP mode (for configuring the meter). Please review the AVERAGE and SETUP mode sections for details U/mode Press and hold for 2 seconds to access the Multi‐Point Average and Timed Average ▲ modes (the AVG icon switches ON). Detailed instructions for these modes are provided later in this guide). In the Setup mode press to select a category or to increase a value (refer to SETUP mode section) L/mode ▼ Press to toggle the lower display between air temperature and air volume readings; Also used in the Multi‐Point Average, Timed Average, and Setup modes; refer to the AVERAGE and SETUP modes sections later in this guide U/mode ▲ + With the meter switched OFF, press and hold these two buttons to disable Auto Power OFF. Detailed AUTO POWER OFF (Sleep mode) instructions are provided later in this guide AN300‐EU‐EN v1.1 1/13 ...
- Page 5 Display Description Lower Display digits (air volume, air temperature, timer, or menu parameter displays) Upper Display digits (air velocity or menu display parameters) Optional Cone and Funnel attachment icons Units of measure for duct area programming Vane indicator (flashes very briefly on power up) Display HOLD icon MAX mode icon MIN mode icon Recording icon 10. Elapsed Timer icon 11. AVG mode icon 12. Battery status icon 13. Unit of measure icons* *Full list shown. Available units of measure icons vary by model. AN300‐EU‐EN v1.1 1/13 ...
-
Page 6: Operation
2. Note that the meter will automatically enter the sleep mode after 20 minutes of inactivity. To disable this feature: with the meter OFF, press and hold the POWER and the U/mode buttons for 2 seconds. The LCD will display 'n' as the meter switches ON. Now the sleep mode is disabled and the user must press the POWER button momentarily to switch the meter OFF. 3. When the meter is ON, the air velocity reading is displayed on the upper display digits in meters per second (m/s) or feet per minute (fpm). The lower display area can show Air Volume (CMM/CFM) or Air Temperature (°C/°F) readings, use the L/mode button to toggle between the two. Note that an area measurement must be programmed into the meter (in the SETUP mode) before accurate volume measurements can be made. 4. Place the meter’s vane in the air stream. The air must enter the vane from the rear of the meter. The temperature sensor is located at the center of the vane on the rear of the meter. 5. Read the measurement data on the LCD. 6. To change between Imperial and Metric units of measure refer to the SETUP mode section. 7. To measure the Air Volume of a duct, first measure the duct’s area (see the Appendix for area calculations) and then enter the area value in the meter’s SETUP mode in in or cm . After the area value has been entered, press the L/mode button to switch the lower display from Air Temperature to Air Volume. Place the meter in the air stream to measure volume. 8. Optionally, measure Air Volume with an airflow cone adaptor by first attaching one of the adaptors to the meter (the optional cone adaptor kit includes a round and a square cone; kit part number AN300‐C). The meter will automatically recognize the adaptor and the ‘INSERT Cone Shape’ prompt will appear on the LCD (the adaptor icon will also appear). Select round or square using the meter’s keypad. Note that, regardless of the AREA setting in the SETUP mode, the meter will default to the dimensions of the attachment (Square: 356 x 346mm [13.6 x 13.6”); Round: 210mm [8.3”] diameter). NOTE: Ensure that the airflow adaptor is well mounted and locked before taking measurements. LCD backlight Press the U/mode button to switch ON the LCD backlight. The backlight will automatically switch OFF after approximately 10 seconds to conserve battery power. Note that the backlighting switches ON automatically when the meter is switched ON by the user. AN300‐EU‐EN v1.1 1/13 ... - Page 7 4. While viewing the MAX or MIN data, use the L/mode button to switch the display so that the Air Volume MIN and MAX readings can be viewed also. 5. Press and hold MAX/MIN for 2 seconds to return to the normal operation mode. Multi‐Point Average Mode 1. From the normal operating mode press the U/mode button for 2 seconds to enter Multi‐ Point Average mode (the AVG display icon and the associated black dot • will switch ON). 2. Press the HOLD button momentarily to record one reading. The upper display digits will show the reading’s memory location number and the lower display will show the measured value. Press the HOLD button again to take and store another reading; the memory location number will increment by one and the current reading will be stored in this new memory location. 3. Press U/mode momentarily to see the multi‐point mean (average) for all of the readings recorded during the session (the '•AVG' display icon will flash during this process). 4. Press L/mode to view the average reading for the other available parameters. 5. Press U/mode momentarily to return to the normal operating mode. Timed Average Mode 1. From the normal operating mode, press and hold the U/mode button for 2 seconds to enter the Multi‐Point Average mode first and then press U/mode one more time momentarily to enter the Timed Average Mode (the AVG and the elapsed timer icons will switch ON). 2. Press HOLD to begin recording. The elapsed timer starts (as shown on the upper display digits) and the clock icon flashes on and off. 3. Press U/mode to stop the clock and to calculate the timed average. The upper LCD will display the elapsed time and the lower LCD will show the averaged readings. The LCD will flash the 'AVG' and the elapsed timer icons. 4. Press L/mode to view the average for other available measurements. 5. Press U/mode to return to the normal operating mode. AN300‐EU‐EN v1.1 1/13 ...
-
Page 8: Setup Mode
Setup Mode Entering Setup Mode Press and hold the SET button for 2 seconds to enter Setup mode. Two options are available: P1.0: Unit and P2.0: AREA. Use the up/down buttons to toggle between P1.0 UNIT and P2.0 AREA options. P1.0: Unit Selection 1. Once in setup mode, at the P1.0 UNIT display, momentarily press the HOLD button to enter the P1.0 UNIT menu. 2. Use the down/up arrow buttons to switch between metric and imperial units. The available units are: air velocity (m/s, fpm), temperature (C, F), air volume (CMM, CFM), and area size (cm², inch²). 3. Press HOLD momentarily to return to the P1.0 display. 4. Press either arrow button to move to the P2.0 AREA option and follow the steps below. P2.0: Area Size Selection 1. In setup mode, from the P2.0 AREA display, press HOLD to enter the AREA setting menu. The LCD will show ‘99999’ in the lower display with the left‐most digit flashing. 2. Use the up arrow button change the flashing digit (from 0 through 9). 3. Use the down arrow button to move to the next digit. Use the up arrow button again to change the flashing digit. Continue in this way until the desired AREA value is displayed. 4. Press the Hold button again momentarily to store the value and to return to the P2.0 display. 5. Press and hold the POWER SET button for 2 seconds to return to the normal operating mode. AN300‐EU‐EN v1.1 1/13 ... -
Page 9: Battery Replacement
Battery Replacement When the low battery icon appears on the LCD, the four (4) 1.5V ‘AAA’ batteries must be replaced. 1. Open the rear battery compartment by carefully pulling down on the compartment’s latch. 2. The battery compartment cover should be completely removed before proceeding. 3. Replace the four (4) 1.5V ‘AAA’ batteries ensuring proper polarity. 4. Close the battery compartment before attempting to use the meter. EU users are legally bound by the Battery Ordinance to return used batteries to community collection points or wherever batteries / accumulators are sold. Disposal in household trash or refuse is prohibited. Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle Other Battery Safety Reminders Never dispose of batteries in a fire. Batteries may explode or leak. Never mix battery types. Always install new batteries of the same type. AN300‐EU‐EN v1.1 1/13 ... -
Page 10: Specifications
Dual function 13 mm (0.5") 4‐digit LCD Sampling rate 1 reading per second approx. Air velocity/flow sensor Conventional angled vane arms with low‐friction ball bearing Temperature sensor NTC‐type precision thermistor Automatic Power off Auto shut off after 20 minutes to preserve battery life (sleep mode) Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature ‐10 to 50 C (14 to 122 F) Operating Humidity <80% RH Storage Humidity <90% RH Operating Altitude 2000 meters (7000ft) maximum Battery Power Four (4) ‘AAA’ 1.5V batteries Battery Life > 40 hours Battery consumption 8.3 mA DC (approx.) Weight 725g (1.6 lbs.) including battery and probe Dimensions Main instrument: 269 x 106 x 51mm (10.6 x 4.2 x 2”) Optional Air Flow Adaptors: Round cone: 210mm (8.3”) Diameter Square: 346 x 346mm (13.6 x 13.6”) AN300‐EU‐EN v1.1 1/13 ... -
Page 11: Error Messages
Error Messages Error codes and solutions Air Temperature E02: Temperature reading is lower than the low range limit. Place the meter in room temperature for 30 minutes. If E02 continues, send the unit to Extech for repair. E03: Temperature exceeds the high range limit. Place the meter in room temperature for 30 minutes. If E03 continues to appear, send the unit to Extech for repair. E31: The A‐to‐D converter requires replacing. Send the meter to Extech Instruments for repair. Air velocity E03: Velocity exceeds the high range limit. Test the meter using an air velocity that is known to be within the specified range limits. Send the unit to Extech for repair if the E03 error message persists. Air volume E03: Reading exceeds the meter’s display limit. Check that the AREA setting is correct in the Setup Mode. E04: Air velocity error. Return the meter to Extech if the error message persists. Other Errors E32: Memory IC error. Reboot the meter and check it again; send it to Extech Instruments for repair if the error message persists. No display Check that the batteries are making good contact and are aligned for correct polarity. Replace batteries. Display switches OFF automatically This symptom could be the normal ‘Sleep Mode’ which switches the meter OFF after 20 minutes of in‐activity. If this is not the ‘Sleep Mode’, check whether the low battery indicator appears before the LCD attempts to switch ON; if yes, replace the batteries. AN300‐EU‐EN v1.1 1/13 ... - Page 12 0.01829 0.01138 1 knot 0.5144 101.27 1 1.8519 1.1523 1 km/h 0.2778 54.69 0.54 1 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 1 Copyright © 2013 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com AN300‐EU‐EN v1.1 1/13 ...
