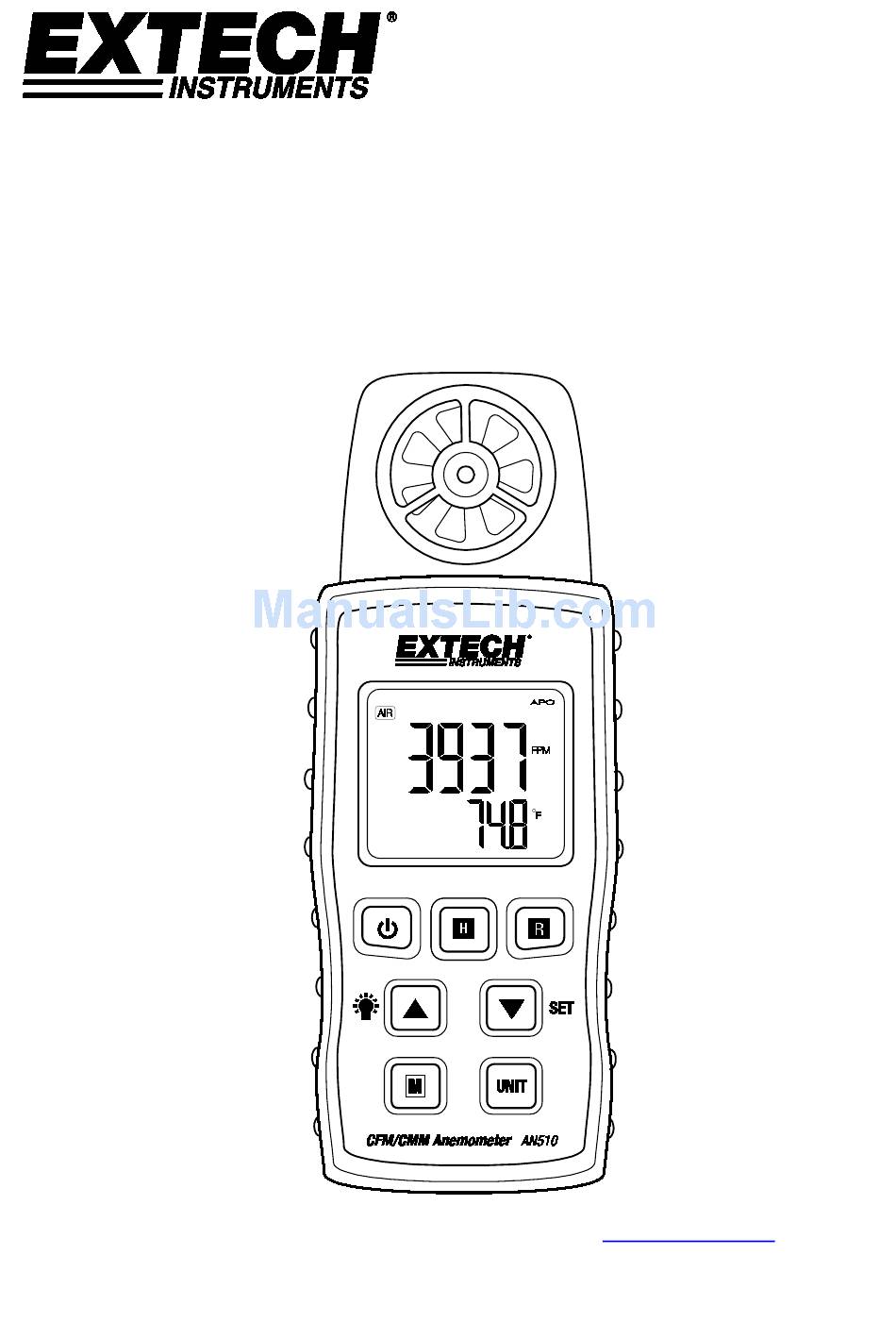

- Page 1 USER MANUAL CFM/CMM Thermo Anemometer Model AN510 Additional User Manual Translations available at www.extech.com...
- Page 2 Introduction Thank you for selecting the Extech AN510 CFM/CMM Thermo-Anemometer. This instrument measures Air Velocity, Air Flow (volume), Air Temperature, and Type K Temperature (external probe). The backlit LCD includes primary and secondary displays plus numerous status indicators. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 SET and▼ button RECORD button 10. Hold Button LCD Description Air Velocity Record Hold Air Flow Battery Indicator Auto Power OFF Unit of Measure 10. Temperature Units 11. Lower LCD Display 12. Upper LCD Display 13. Type K Temperature AN510-en-GB_V1.0 5/17...
-
Page 4: Data Hold
K thermocouple must be connected to the meter for Type K temperature displays. Air Velocity Units Select Air Velocity with the M button. Press the UNIT button to step through and select the desired units. (ft/min, m/s, km/h, MPH, knots) AN510-en-GB_V1.0 5/17... - Page 5 Press the ▲ or ▼ button to set the area in square feet or square meters in the display. Press the button to save the value. With the area values programmed, measure air flow in the duct to obtain air volume (CFM or CMM) readings. AN510-en-GB_V1.0 5/17...
-
Page 6: Battery Replacement
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. AN510-en-GB_V1.0 5/17... -
Page 7: Specifications
0.001/0.01/0.1/1/10 (x10) / 100 (x100) CFM (ft 0.847 to 1271300 Type K Thermometer -50 to 1300 ±(0.4% + 0.5°C) °C 0.1° -50.1 to -100 ±(0.4% + 1°C) -58 to 2372 ±(0.4% + 1°F) °F 0.1° -58.1 to -148 ±(0.4% + 1.8°F) AN510-en-GB_V1.0 5/17... - Page 8 1.1523 1 km/h 0.2778 54.69 0.54 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com AN510-en-GB_V1.0 5/17...
