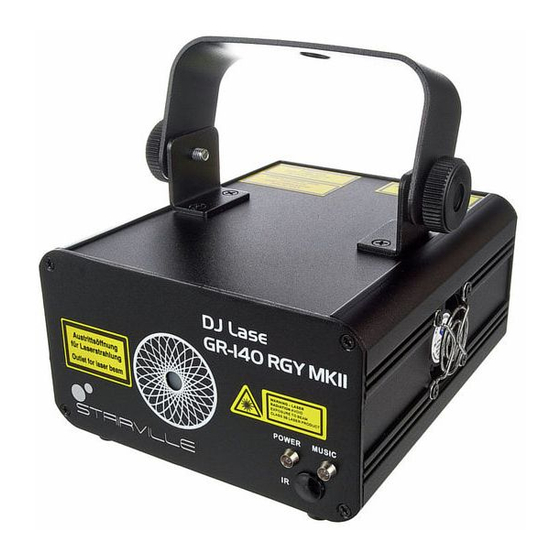

Stairville DJ Lase GR-140 RGY MKII User Manual
  1. Manuals
  2. Brands
  3. Stairville Manuals
  4. DJ Equipment
  5. DJ Lase GR-140 RGY MKII
  6. User manual

Stairville DJ Lase GR-140 RGY MKII User Manual

Showlaser
Hide thumbs Also See for DJ Lase GR-140 RGY MKII:
Table of Contents

Advertisement

Quick Links

DJ Lase
GR-140 RGY MKII
showlaser
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJ Lase GR-140 RGY MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairville DJ Lase GR-140 RGY MKII

Summary of Contents for Stairville DJ Lase GR-140 RGY MKII

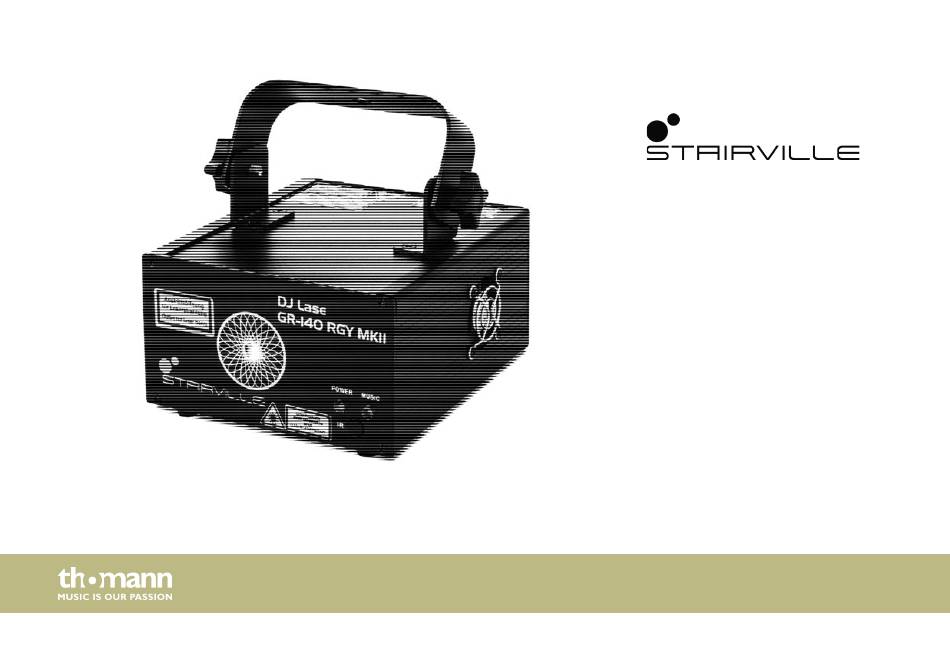

  • Page 1 DJ Lase GR-140 RGY MKII showlaser user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.09.2019, ID: 255628 (V5)

  • Page 3: Table Of Contents

    Features............................... 20 Installation..............................21 Starting up..............................28 Connections and controls........................31 Operating..............................39 7.1 Starting up the device........................39 7.2 Main menu............................41 7.3 Menu overview..........................44 7.4 Functions in DMX mode........................ 45 Technical specifications........................50 DJ Lase GR-140 RGY MKII...
  • Page 4 Table of contents Plug and connection assignments....................53 Troubleshooting............................54 Cleaning............................... 57 Protecting the environment......................58 showlaser...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. DJ Lase GR-140 RGY MKII...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . DJ Lase GR-140 RGY MKII...

  • Page 8: Symbols And Signal Words

    General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – laser radiation. DJ Lase GR-140 RGY MKII...
  • Page 10 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. showlaser...

  • Page 11: Safety Instructions

    This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. DJ Lase GR-140 RGY MKII...
  • Page 12 Safety instructions Laser safety basics Laser safety requirements are based on DIN EN 60825-1:2015. The corresponding accident pre‐ vention regulation of the Accident Prevention and Insurance Association in Germany is BGV- This device contains a class-3B laser. It comes equipped with a safety key and a jack for con‐ necting an external safety switch.
  • Page 13 Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. DJ Lase GR-140 RGY MKII...
  • Page 14 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 15 Do not expose yourself to the laser beam. The laser beam can cause skin burns. In this context take extreme care when using converging optical instruments. WARNING! Eye damage caused by high light intensity Never look directly into the light source. DJ Lase GR-140 RGY MKII...
  • Page 16 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Laser radiation – risk of fire Keep the area exposed to laser radiation free from flammable substances. NOTICE! Risk of fire Do not block areas of ventilation.
  • Page 17 Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. DJ Lase GR-140 RGY MKII...
  • Page 18 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 19 PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet. DJ Lase GR-140 RGY MKII...

  • Page 20: Features

    Features Features The showlaser is specially suited for discos, clubs, bars, small stages, etc. It allows smooth inte‐ gration into light shows, but can also be operated as stand-alone device. Special features of this device: Control via DMX (5 channels), infrared remote control and buttons plus display on the unit itself Built-in automatic show programmes Sound control...

  • Page 21: Installation

    You can install the device standing or hanging. When in use, the device must be mounted at a solid surface or clamped to an approved truss. Work from a stable platform whenever you install or move the device or when you perform any kind of maintenance. Block access under the work area. DJ Lase GR-140 RGY MKII...
  • Page 22 Installation Safety switch (emergency stop) Connect the external safety switch (not supplied) to the provided connection socket on the device. If you press the external switch, the laser beam will be switched off immediately. Observe the safety instructions of the switch manufacturer and the regulations for the intended use.
  • Page 23 The determination of the MZB limit values depends on the specific environmental conditions in individual cases and must be carried out by the responsible laser protection representative on site, based on the applicable standard DIN EN 60825-1. DJ Lase GR-140 RGY MKII...
  • Page 24 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. DANGER! Follow the instructions in the chapter titled "Safety Instructions"...
  • Page 25 Risk of overheating The distance between the light output and the illuminated surface must be more than 2.0 m (78.7 in). Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). DJ Lase GR-140 RGY MKII...
  • Page 26 Installation Inserting the battery into the Press the lock of the battery holder to the centre of the housing and pull out the battery holder remote control like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing base of the remote control.
  • Page 27 Take batteries out of the device if it is not going to be used for a longer period. NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. DJ Lase GR-140 RGY MKII...

  • Page 28: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. DANGER! Laser radiation Follow the instructions in the chapter titled "Safety Instructions" in this manual. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐...
  • Page 29 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). DJ Lase GR-140 RGY MKII...
  • Page 30 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 31: Connections And Controls

    Connections and controls Connections and controls Front panel DJ Lase GR-140 RGY MKII...
  • Page 32 Connections and controls 1 Laser aperture. 2 [POWER] Shows that the device is turned on. 3 [MUSIC] Shows that a sound or music signal is being detected. 4 [IR] Receiver for the infrared signal of the remote control. showlaser...
  • Page 33 Connections and controls Rear panel DJ Lase GR-140 RGY MKII...
  • Page 34 Connections and controls 5 Main switch. 6 IEC chassis plug for the mains cable with fuse holder. 7 [OUTPUT] DMX output. 8 [INPUT] DMX input. 9 Safety eyelet. 10 [LOCK] Safety key switch: Turns the laser output on or off. 11 [REMOTE] Jack for connecting an external safety switch (e.g.
  • Page 35 Connections and controls 14 [UP] Increases the displayed value by one. 15 [DOWN] Decreases the displayed value by one. 16 [ENTER] Selects an option of the respective operating mode. 17 [MIC] Microphone used for the sound mode. DJ Lase GR-140 RGY MKII...
  • Page 36 Connections and controls Remote control showlaser...
  • Page 37 Switches the flash effect for the red laser on or off, the flash frequency can be input with the numeric keypad. 26 [B] Switches the flash effect for the green laser on or off, the flash frequency can be input with the numeric keypad. DJ Lase GR-140 RGY MKII...
  • Page 38 Connections and controls 27 [C] No function. 28 Numeric keypad for direct input of values (flash frequency, motor speed, speed of the double burst grating effect). 29 Controls the motor speed of the laser optics in conjunction with the numeric keypad. 30 [-/--] Controls the double burst grating effect in conjunction with the numeric keypad.

  • Page 39: Operating

    If not already connected, connect the device to the mains (5). After a few seconds, the fan and the motors start to work. The display shows the current operation mode. The device is now operational. DJ Lase GR-140 RGY MKII...
  • Page 40 Operating Turn the safety key (9) to the “ON” position to turn the laser beam on. 7.1.1 Turning the unit off Turn the safety key (9) to the “OFF” position to turn the laser beam off and remove the key. Keep the safety key under control. Optionally, disconnect the device from the mains (5).

  • Page 41: Main Menu

    When the display shows the desired value, press [ENTER]. To return to the main menu without any changes, press [FUNC] or wait a minute. All previously made settings are retained even when you disconnect the device from the power grid. DJ Lase GR-140 RGY MKII...
  • Page 42 Operating Auto show mode Press [FUNC] until the display shows ‘Aut’ . The device operates in stand-alone mode and dis‐ plays a pre-programmed show that can optionally be controlled by the built-in microphone. Use the [UP] and [DOWN] buttons to select the built-in show programme with or without sound control (display ‘Sou’...
  • Page 43 Press [FUNC] until the display shows ‘rEN’ . Press [ENTER] to confirm and to start operation in 'Remote control' mode. This mode allows you to operate the device conveniently with the infrared remote control. Make sure that the infrared receiver on the front panel of the device is not obstructed. DJ Lase GR-140 RGY MKII...

  • Page 44: Menu Overview

    Operating 7.3 Menu overview showlaser...

  • Page 45: Functions In Dmx Mode

    Operating 7.4 Functions in DMX mode Channel 1 Value Function Mode selection 0…50 Laser off 51…100 Auto show 101…150 Sound-controlled automatic show 151…200 DMX 1 mode 201…255 DMX 2 mode DJ Lase GR-140 RGY MKII...
  • Page 46 Operating Channels 2 to 5 in DMX 1 mode Channe Value Function Pattern rotation 0…4 No rotation 5…127 Clockwise rotation (slow to fast) 128…133 No rotation 134…255 Counterclockwise rotation (slow to fast) 0…255 Vibration effect of patterns (small to large vibration) Red laser 0…4 Laser off...
  • Page 47 Operating Channe Value Function Green laser 0…4 Laser off 5…10 Laser on 11…254 Strobing (strobe effect), slow to fast Sound-controlled strobe effect DJ Lase GR-140 RGY MKII...
  • Page 48 Operating Channels 2 to 5 in DMX 2 mode Channe Value Function Pattern rotation 0…4 No rotation 5…127 Clockwise rotation (slow to fast) 128…133 No rotation 134…255 Counterclockwise rotation (slow to fast) 0…255 Vibration effect of patterns (small to large vibration) Colour selection 0…4 Laser off...
  • Page 49 Constantly red, strobe effect for green 171…200 Strobe effect for red, constantly green 201…255 Alternating strobe effect for red and green Strobing (strobe effect) 0…4 No function 5…254 Strobing (strobe effect), slow to fast Sound-controlled strobe effect DJ Lase GR-140 RGY MKII...

  • Page 50: Technical Specifications

    Technical specifications Technical specifications Laser medium Red: 650 nm (typical), LD GaAlAs Green: 532 nm (typical), DPSS Nd:YVO4 Laser power Red: 100 mW Green: 40 mW Laser classification acc. to EN 60825-1 2015 Beam diameter at aperture < 5 mm Pulse data All pulses <4 Hz (>...
  • Page 51 5 mm × 20 mm, 1.6 A, 250 V, slow-blow Dimensions (W × H × D) 145 mm × 80 mm × 160 mm Weight 1.8 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing DJ Lase GR-140 RGY MKII...
  • Page 52 Technical specifications Further information Colour spectrum Animation laser Grating laser ILDA Power rating Up to 100 Analog modulation showlaser...

  • Page 53: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) DJ Lase GR-140 RGY MKII...

  • Page 54: Troubleshooting

    Troubleshooting Troubleshooting DANGER! Laser radiation inside Follow the instructions in the chapter titled "Safety Instructions" in this manual. Only qualified personnel may carry out service work on the (open) device. Suitable laser protection glasses are required for any activities at the device. In the following we list a few common problems that may occur during operation.
  • Page 55 Check the DMX connectors and cables to see if they are properly linked. If the display does not flash and there is no response, check the address settings and DMX polarity. Try using another DMX controller. DJ Lase GR-140 RGY MKII...
  • Page 56 Troubleshooting Check whether the DMX cables run near or parallel to high-voltage cables that may cause damage or interference to the DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. showlaser...

  • Page 57: Cleaning

    The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. DJ Lase GR-140 RGY MKII...

  • Page 58: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 59 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. DJ Lase GR-140 RGY MKII...
  • Page 60 Notes showlaser...
  • Page 61 Notes DJ Lase GR-140 RGY MKII...
  • Page 62 Notes showlaser...
