ROTOTILT ICS Translation Of The Original Instructions page 2

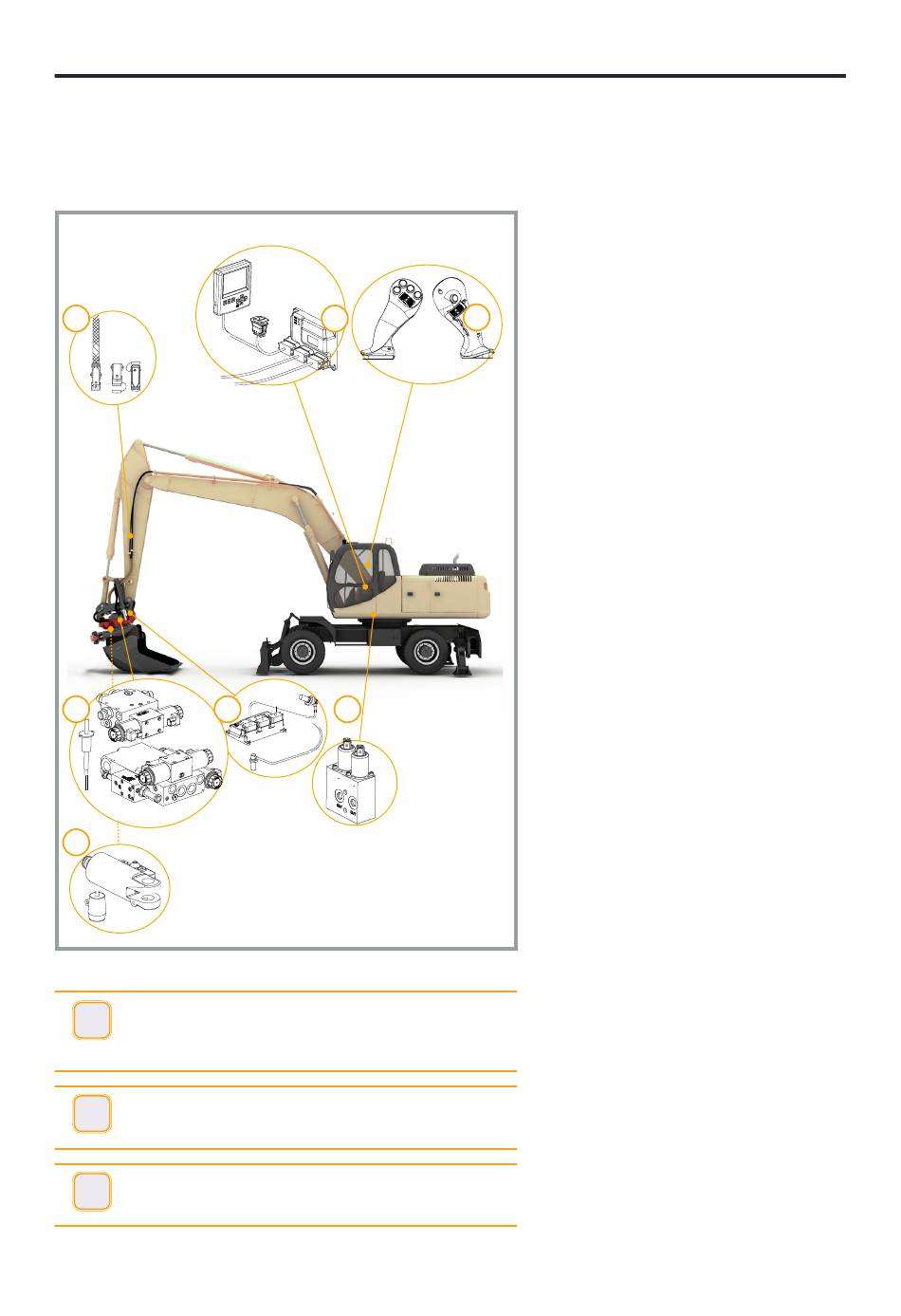

Overview
The product described in the document consists of components for the ICS control system. The overviews
show standard equipment and options.
Refer to the illustrations and lists below and on the following pages.
1
4 5
7
IMPORTANT
!
control system, tiltrotator and base machine/excavator use
before starting work. Pay particular attention to the safety
instructions.
IMPORTANT
!
system means that the quick coupler locking function will
be pressurised.
IMPORTANT
!
the base machine/excavator's quick coupler is not opened
accidentally during use of the tiltrotator.
© Rototilt Group AB
2
6
- Read through the instructions for the
- Pressurising the Rototilt® hydraulic
- A connected safety plug ensures that
Control system of the ICS type
The ICS consists of the following
components:
1. Harness, Boom
3
Connector with safety plug
2. Display
Switch, quick coupler locking function
Cab control unit, CCU
3. Handles with controls to operate
the functions on Rototilt® and the
base machine/excavator, ordered
separately
4. Valve block
El swivel
5. Rototilt® control unit, TCU
Zero position sensor. (ICS sensor,
ICS Securelock)
Frequency sensor. (ICS sensor, ICS
Securelock)
6. Feeder that regulates the oil flow
to the hydraulic circuit for extra
equipment on the base machine/
excavator.
7. Lock cylinder sensor. (ICS
Securelock)
LED lighting. (ICS Securelock)
2200325_ EN _6800 2017-05-23 English
