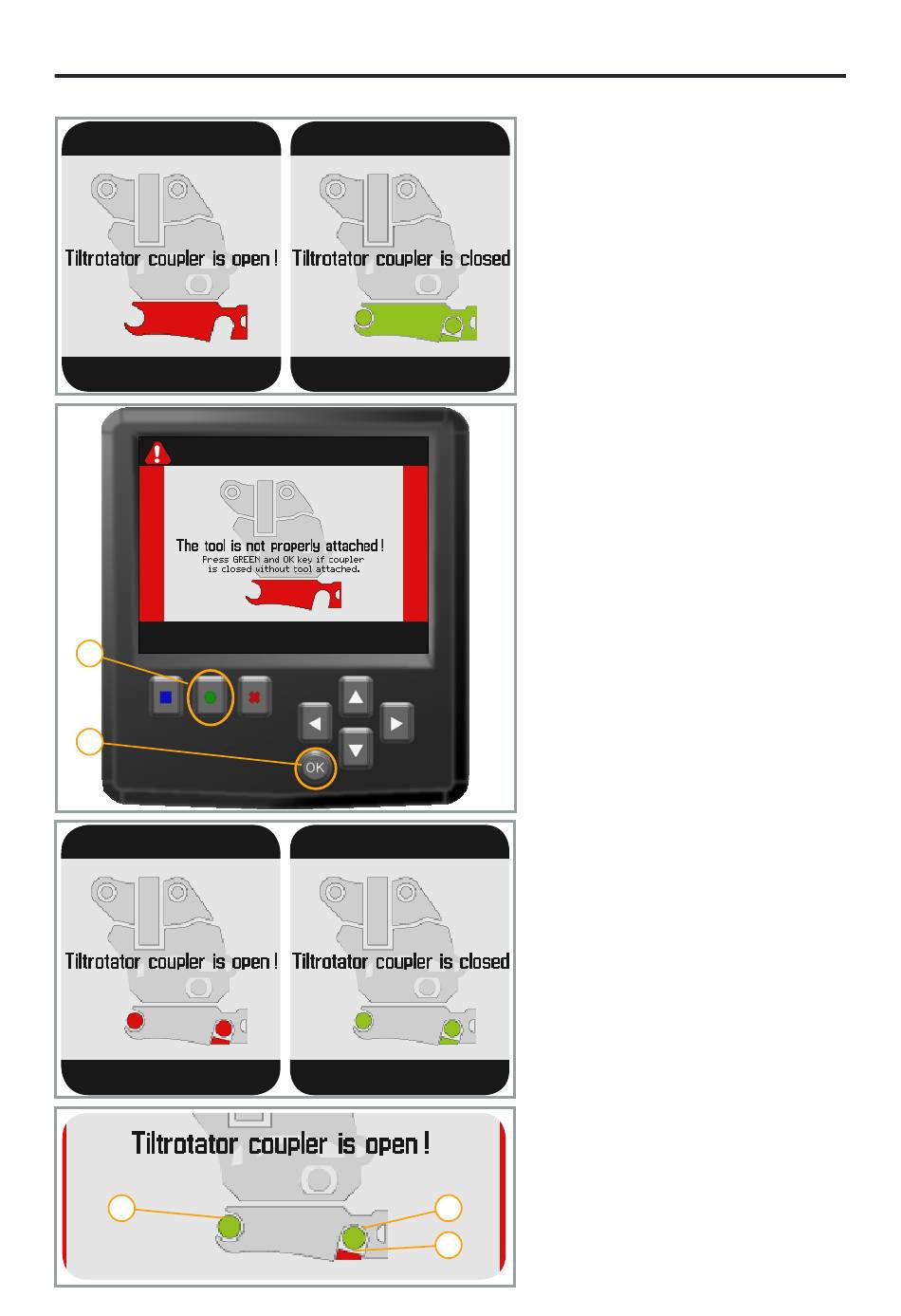

Quick coupler with Secure Lock
Operate in the same way as the quick
coupler without Secure Lock, see above.
When the quick coupler is opened a
warning is given that the locking cylinder
has been retracted and is in the open
position.
When the quick coupler is closed, the
message indicates the locking cylinder
is extended and is in a securely locked
position.
Inspection of the quick coupler locking
function.
A warning text appears on the display if
the tool is not coupled correctly.
If you do not intended to couple an tool
the warning must be acknowledged.
First press the green function key and
release it.
Now press the OK function key. The
buzzer warning signal stops.
Return to the start menu, using any key.
A visual warning will be shown at 30
second intervals as long as Rototilt® is
running without a tool and remains visible
until any key is pressed again.
Quick coupler QuickChange™
Operate in the same way as the quick
coupler, see above.
When the quick coupler is opened a
warning is given that the locking bolts
has been retracted and is in the open
position
When closing the coupler, the first pin (1)
and then pin (2) and finally the locking
bolts (3) are engaged.
The quick coupler locking function cannot
be closed until both pins in the attachment
frame are positioned correctly.
The position on the quick coupler's three
sensors are monitored continuously. All
sensors are highlighted in green on the
2
display when the tool is coupled correctly.
3
Inspection of the quick coupler locking
function
