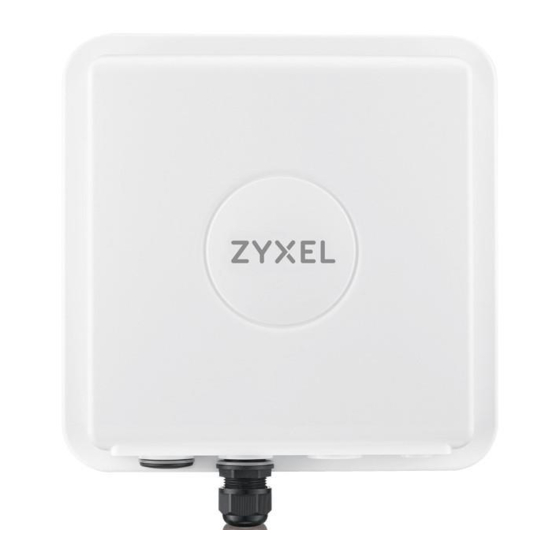

4g lte-a outdoor cpe
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Guide
LTE7460-M608
4G LTE-A Outdoor CPE
Default Login Details
LAN IP Address
User Name
Password
Copyright © 2016 Zyxel Communications Corporation
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
M608
o cerca il tuo prodotto tra le
https://192.168.1.1
admin
1234
migliori offerte di Router
Version 1.00 Edition 1, 10/2016
ZyXEL LTE7460-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTE7460-M608 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications LTE7460-M608

Summary of Contents for ZyXEL Communications LTE7460-M608

  • Page 1 Router User’s Guide LTE7460-M608 4G LTE-A Outdoor CPE Default Login Details Version 1.00 Edition 1, 10/2016 LAN IP Address https://192.168.1.1 User Name admin Password 1234 Copyright © 2016 Zyxel Communications Corporation...
  • Page 2 The Quick Start Guide shows how to connect the LTE and access the Web Configurator. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. • More Information Go to support.zyxel.com to find other information on the LTE7460-M608 LTE7460-M608 User’s Guide...

  • Page 3: Table Of Contents

    Introducing the Web Configurator ..................... 11 Tutorials ..............................17 Technical Reference ........................23 Home ..............................24 Internet ..............................30 Home Network ............................40 Networking ............................57 Applications ............................85 System ..............................92 Troubleshooting ..........................103 Index ..............................121 LTE7460-M608 User’s Guide...

  • Page 4: Table Of Contents

    1.2 Applications for the LTE7460-M608 ....................9 1.2.1 Internet Access ........................9 1.3 Ways to Manage the LTE7460-M608 ....................9 1.4 Good Habits for Managing the LTE7460-M608 ................10 1.5 LEDs (Lights) ............................. 10 Chapter 2 Introducing the Web Configurator ....................11 2.1 Overview ............................
  • Page 5 6.9 Using UPnP in Windows XP Example ..................... 50 6.10 Using UPnP in Windows 7 Example ..................... 55 Chapter 7 Networking ............................57 7.1 Overview ............................57 7.1.1 What You Can Do in this Chapter ..................57 7.1.2 What you need to know ...................... 57 LTE7460-M608 User’s Guide...
  • Page 6 9.1 Overview ............................92 9.2 What You Can Do in This Chapter ....................92 9.3 The System Information Screen ..................... 92 9.4 The User Account Screen ......................93 9.5 The Settings Profile Screen ......................95 9.5.1 Reset Settings ......................... 95 LTE7460-M608 User’s Guide...
  • Page 7 Chapter 10 Troubleshooting..........................103 10.1 Overview ............................. 103 10.2 Power and Hardware Connections ..................103 10.3 LTE7460-M608 Access and Login ....................103 10.4 Internet Access ........................... 105 10.5 UPnP ............................. 106 Appendix A Customer Support ..................... 107 Appendix B Legal Information ....................... 113 Index ..............................121...

  • Page 8: User's Guide

    User’s Guide...

  • Page 9: Introduction

    For better network integration, Zyxel embeds both bridge mode and router mode into the LTE7460-M608. With these two built-in modes the LTE7460-M608 can be easily integrated with any of your existing or preferred devices. The LTE7460-M608 also includes a robust firewall that uses Stateful Packet Inspection (SPI) technology and protects against Denial of Service (DoS) attacks.

  • Page 10: Good Habits For Managing The Lte7460-M608

    ISP provides you. 1.5 LEDs (Lights) The LED color in your LTE7460-M608 indicates the signal quality. The following table describes the LEDs in your LTE7460-M608. Note: In the following the table the LED status On, Off, Flashing and Blinking are shown.

  • Page 11: Introducing The Web Configurator

    • Java permissions (enabled by default). 2.1.1 Login Accounts There is one system account that you can use to log in to the LTE7460-M608: “admin”. The admin account allows you full access to all system configurations. The default admin user is “admin” and the default password is “1234”.
  • Page 12 Chapter 2 Introducing the Web Configurator Figure 2 Password Screen Note: For security reasons, the LTE7460-M608 automatically logs you out if you do not use the web configurator for five minutes (default). If this happens, log in again. The following screen displays if you have not yet changed your password. It is required for you to enter a new password, this password must contain between 8 and 30 ASCII characters, and should include at least one numeric, capital and lower case character.

  • Page 13: Navigating The Web Configurator

    Chapter 2 Introducing the Web Configurator Figure 4 Home 2.2 Navigating the Web Configurator After logging in the Home screen will appear. Figure 5 Web Configurator Layout As illustrated above, the main screen is divided into these parts: LTE7460-M608 User’s Guide...

  • Page 14: Title Bar

    Click this to log out of the Web Configurator. 2.2.2 Navigation Panel Use the menu items on the navigation panel to open screens to configure the LTE7460-M608 features. The following sections introduce the LTE7460-M608’s navigation panel menus and their screens.
  • Page 15 DHCP Enable the DHCP server on the LTE7460-M608. Configure static DHCP series. Static Route Use this to add up to 15 static routes on the LTE7460-M608. UPnP Enable the UPnP settings on the LTE7460-M608. Connected Devices View current clients information of network clients connected to the LTE7460-M608.
  • Page 16 Use this to enter a code for devices in your network to communicate with cellular telephones in your services provider’s network. System System Information Display the LTE7460-M608’s basic information and reboot the LTE7460- M608. User Account Change administrative settings and the password of your LTE7460-M608.

  • Page 17: Tutorials

    3.2 Connecting to the Internet This section gives you an example on how to connect to the Internet. Insert the SIM Card into your LTE7460-M608 SIM slot. Make sure this SIM has an active data plan with your Internet Service Provider (ISP).

  • Page 18: Adding Devices To Your Static Dhcp List

    Enter a range of addresses from which your DHCP will assign to devices in your network. Note: Do not include the LTE7460-M608’s LAN IP address in your range of addresses. Enter the Lease Time, the period of time (in minutes) a device can use one of the IP addresses from the DHCP pool.

  • Page 19: Configuring Static Route For Routing To Another Network

    B will never receive the traffic. You need to specify a static routing rule on the LTE7460-M608 to specify R as the router in charge of forwarding traffic to N2. In this case, the LTE7460-M608 routes traffic from A to R and then R routes the traffic to B.

  • Page 20: Access The Lte7460-M608 Using Ddns

    3.5 Access the LTE7460-M608 Using DDNS If you connect your LTE7460-M608 to the Internet and it uses a dynamic WAN IP address, it is inconvenient for you to manage the device from the Internet. The LTE7460-M608’s WAN IP address changes dynamically.

  • Page 21: Registering A Ddns Account On Www.dyndns.org

    • Hostname: zyxelrouter.dyndns.org • Service Type: Host with IP address • IP Address: Enter the WAN IP address that your LTE7460-M608 is currently using. You can find the IP address on the LTE7460-M608’s Web Configurator Home page. Then you will need to configure the same account and host name on the LTE7460-M608 later.

  • Page 22: Testing The Ddns Settings

    Open a web browser on the computer (using the IP address a.b.c.d) that is connected to the Internet. Type http://zyxelrouter.dyndns.org and press [Enter]. The LTE7460-M608’s login page should appear. You can then log into the LTE7460-M608 and manage it. LTE7460-M608 User’s Guide...

  • Page 23: Technical Reference

    Technical Reference...

  • Page 24: Home

    LTE7460-M608’s basic Internet access and wireless settings. 4.2 Home Screen This screen is the first thing you see when you log into the LTE7460-M608. It also appears every time you click the Home icon in the navigation panel. The Home screen displays the LTE7460-M608’s connection mode, wireless LAN information and traffic statistics.

  • Page 25: Setup Wizard

    Disconnected if there is no Internet connection through IPv4 Internet. IPv4 IP address This field displays the IPv4 IP address your LTE7460-M608 uses to access the Internet. IPv4 Connection Time This field displays the time your LTE7460-M608 IPv4 connection to the Internet has been up.

  • Page 26: Internet

    Figure 9 Setup Wizard: Set Up Operating Mode 4.3.2 Internet Select the Auto option for the LTE7460-M608 to use any of the available mobile networks. Select Allow Data Roaming to use your device in an area which is not covered by your service provider. Click Next to continue.

  • Page 27: Home Network

    Figure 12 Setup Wizard > Set Up Internet: Package Data Limit 4.3.3 Home Network Use this screen to assign a name to your LTE7460-M608 network and modify its IP Address and Subnet Mask. Click Next to continue. LTE7460-M608 User’s Guide...

  • Page 28: Time

    Chapter 4 Home Figure 13 Setup Wizard > Set Up Home Network Enable the DHCP Server and add a range of IP addresses that can access your LTE7460-M608 for a determined period of time (Lease Time). Click Next to continue.
  • Page 29 Chapter 4 Home Figure 15 Setup Wizard > Set Up Time Click Apply to save your changes. The LTE7460-M608 will restart. LTE7460-M608 User’s Guide...

  • Page 30: Internet

    Network Provider (Section 5.2 on page 31). • Use the Internet Settings screen to configure the WAN settings on the LTE7460-M608 for Internet access (Section 5.3 on page 33). • Use the PIN Settings screen to enable or disable PIN code authentication (Section 5.4 on page...

  • Page 31: Before You Begin

    Chapter 5 Internet WAN IP Address The WAN IP address is an IP address for the LTE7460-M608, which makes it accessible from an outside network. It is used by the LTE7460-M608 to communicate with other devices in other networks. The ISP dynamically assigns it each time the LTE7460-M608 tries to access the Internet.
  • Page 32 This displays the network type and the frequency band used by the mobile network to which the LTE7460-M608 is connecting. EARFCN/UARFCN/ARFCN This displays the channel used by the mobile network to which the LTE7460-M608 is connecting. This displays the 2-octet Location Area Code (LAC), which is used to identify a location area within a PLMN.

  • Page 33: Internet Settings Screen

    Chapter 5 Internet 5.3 Internet Settings Screen Use this screen to change your LTE7460-M608’s Internet access settings. Click Internet > Internet Settings. The screen appears as shown next. Figure 18 Internet > Internet Settings The following table describes the labels in this screen.

  • Page 34: Apn Configuration Screen

    A PIN (Personal Identification Number) code is a key to a SIM card. Without the PIN code, you cannot use the SIM card. Enable Save PIN Select this for the LTE7460-M608 to save the SIM card PIN code, and avoid reentering the PIN code everytime you log in. Change PIN Code Current PIN Enter the default or existing PIN code for the inserted SIM card.
  • Page 35 Specify the Maximum Transmission Unit (MTU) for each packet or frame sent in the LTE7460-M608’s network. Apply Click Apply to save your changes back to the LTE7460-M608. Reset Click Reset to reload the previous configuration for this screen. 2nd APN for TR069 Access Point Names (APNs) are provided by your service provider.

  • Page 36: Network Selection Screen

    5.6 Network Selection Screen This screen allows you to view available Public Land Mobile Networks (PLMNs) and select your preferred network when the LTE7460-M608 is outside the geographical coverage area of the network to which you are registered and roaming is enabled.
  • Page 37 This shows the ISP the LTE7460-M608 is currently connected to. Selected Network Type This shows the type of network the LTE7460-M608 is using when connected to the ISP. Scan Timestamp This shows the last time the LTE7460-M608 scanned for ISPs on its surroundings.

  • Page 38: Data Usage/Statistic Screen

    Table 11 Internet > Data Usage/Statistic LABEL DESCRIPTION Package Data Limit Setting Enable Data Limit Select the check box to enable data limits. My internet package data Specify the limiting the amount of the package data in this field. limit is LTE7460-M608 User’s Guide...
  • Page 39 Specify the reminding percentage of the package data usage in this field. usage is more than Usage cycle reset date Specify the date that you want the LTE7460-M608 to restart calculating the amount of the package data per month. Apply Click Apply to save your changes back to the LTE7460-M608.

  • Page 40: Home Network

    • Use Connected Devices screen to view current clients information (Section 6.6 on page 45). Note: These screens are not available if your LTE7460-M608’s operating mode is on bridge mode. To learn more about changing your LTE7460-M608’s operating mode see Section 7.2 on page 6.1.2 What You Need To Know...

  • Page 41: The Lan Ip Screen

    DHCP DHCP (Dynamic Host Configuration Protocol) allows clients to obtain TCP/IP configuration at start-up from a server. This LTE7460-M608 has a built-in DHCP server capability that assigns IP addresses and DNS servers to systems that support DHCP client capability. 6.1.2.2 About UPnP How do I know if I'm using UPnP? UPnP hardware is identified as an icon in the Network Connections folder (Windows XP).

  • Page 42: The Dhcp Screen

    Enter a new host name for the LTE7460-M608 if you want to change it. IP Address This shows the default LAN IP address. Enter the new IP address for the LTE7460-M608’s LAN interface if you want to change it. Subnet Mask This shows the default subnet mask.
  • Page 43 Click Add New to create a new entry. This field displays the index number of the IP address entry. IP Address This field displays the IP address that the LTE7460-M608 assigns to a device with the entry’s MAC address. MAC address This field displays the MAC address of the device to which the LTE7460-M608 assigns the entry’s IP address.

  • Page 44: The Static Route Screen

    Chapter 6 Home Network 6.4 The Static Route Screen Use this screen to view and configure IP static routes on the LTE7460-M608. Click Home Network > Static Route to open the following screen. Figure 25 Home Network > Static Route The following table describes the labels in this screen.

  • Page 45: The Upnp Screen

    See page 48 more information on UPnP. Use the following screen to configure the UPnP settings on your LTE7460-M608. Click Home Network > UPnP to display the screen shown next. Figure 26 Home Network > UPnP The following table describes the labels in this screen.

  • Page 46: Technical Reference

    DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the LTE7460-M608 as a DHCP server or disable it. When configured as a server, the LTE7460-M608 provides the TCP/IP configuration for the clients.
  • Page 47 Chapter 6 Home Network IP Pool Setup The LTE7460-M608 is pre-configured with a pool of IP addresses for the DHCP clients (DHCP Pool). See the product specifications in the appendices. Do not assign static IP addresses from the DHCP pool to your LAN computers.

  • Page 48: Installing Upnp In Windows Example

    Click the Windows Setup tab and select Communication in the Components selection box. Click Details. Figure 29 Add/Remove Programs: Windows Setup: Communication In the Communications window, select the Universal Plug and Play check box in the Components selection box. LTE7460-M608 User’s Guide...
  • Page 49 In the Network Connections window, click Advanced in the main menu and select Optional Networking Components …. Figure 31 Network Connections The Windows Optional Networking Components Wizard window displays. Select Networking Service in the Components selection box and click Details. LTE7460-M608 User’s Guide...

  • Page 50: Using Upnp In Windows Xp Example

    This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the LTE7460-M608. Make sure the computer is connected to a LAN port of the LTE7460-M608. Turn on your computer and the LTE7460-M608.
  • Page 51 In the Internet Connection Properties window, click Settings to see the port mappings there were automatically created. Figure 35 Internet Connection Properties You may edit or delete the port mappings or click Add to manually add port mappings. LTE7460-M608 User’s Guide...
  • Page 52 When the UPnP-enabled device is disconnected from your computer, all port mappings will be deleted automatically. Select Show icon in notification area when connected option and click OK. An icon displays in the system tray. Figure 38 System Tray Icon Double-click on the icon to display your current Internet connection status. LTE7460-M608 User’s Guide...
  • Page 53 Web Configurator Easy Access With UPnP, you can access the web-based configurator on the LTE7460-M608 without finding out the IP address of the LTE7460-M608 first. This comes helpful if you do not know the IP address of the LTE7460- M608.
  • Page 54 Figure 40 Network Connections An icon with the description for each UPnP-enabled device displays under Local Network. Right-click on the icon for your LTE7460-M608 and select Invoke. The web configurator login screen displays. Figure 41 Network Connections: My Network Places Right-click on the icon for your LTE7460-M608 and select Properties.

  • Page 55: Using Upnp In Windows 7 Example

    This section shows you how to use the UPnP feature in Windows 7. You must already have UPnP installed in Windows XP and UPnP activated on the LTE7460-M608. Make sure the computer is connected to a LAN port of the LTE7460-M608. Turn on your computer and the LTE7460-M608.
  • Page 56 Chapter 6 Home Network Figure 43 Change advanced sharing settings LTE7460-M608 User’s Guide...

  • Page 57: Networking

    • Use the DNS Settings screen to configure the LTE7460-M608’s DNS settings (Section 7.4 on page 63). • Use the Firewall screen to protect your LTE7460-M608 from attacks on the Internet and control access to it (Section 7.5 on page 64 Section 7.10 on page...
  • Page 58 If you have a private WAN IP address, then you cannot use Dynamic DNS. Firewall A firewall protects your LTE7460-M608 and network from attacks by hackers on the Internet and control access to it. The firewall: • allows traffic that originates from your LAN computers to go to all other networks.

  • Page 59: Operating Mode Screen

    Certification Path A certification path is the hierarchy of certification authority certificates that validate a certificate. The LTE7460-M608 does not trust a certificate if any certificate on its path has expired or been revoked. Certificate Directory Servers Certification authorities maintain directory servers with databases of valid and revoked certificates. A directory of certificates that have been revoked before the scheduled expiration is called a CRL (Certificate Revocation List).

  • Page 60: Router Mode

    Figure 45 LAN and WAN IP Addresses in Router Mode 7.2.2 Bridge mode Use Bridge mode on the LTE7460-M608 you want the connected devices to get individual IP addresses from the Internet service provider’s DHCP. If you select Bridge mode, you cannot use routing functions, such as VPN Pass Through, Firewall, DHCP server and NAT on traffic from the selected LAN port(s).

  • Page 61: Tr069 Screen

    An administrator can use an ACS to remotely set up the LTE7460-M608, modify settings, perform firmware upgrades as well as monitor and diagnose the LTE7460-M608. You have to enable the device to be managed by the ACS and specify the ACS IP address or domain name and username and password.
  • Page 62 DESCRIPTION TR-069 Configuration CWMP Click the check box to allow the LTE7460-M608 to be managed by a management server. Otherwise, so the LTE7460-M608 is not managed by a management server. ACS URL Enter the URL or IP address of the auto-configuration server.

  • Page 63: Dns Settings Screen

    1024 (not a commonly used port). The management server should use this port to connect to the LTE7460-M608. You may need to alter your NAT port forwarding rules if they were already configured.

  • Page 64: Firewall > Ipv4/Port Filter Screen

    Click Reset to restore the screen’s last saved settings. 7.5 Firewall > IPv4/Port Filter Screen The LTE7460-M608 firewall is a packet filtering firewall and restricts access based on the source/ destination computer network address of a packet and the type of application. Use this screen to configure IP filtering rules.

  • Page 65: Firewall > Ipv6/Port Filter Screen

    7.6 Firewall > IPv6/Port Filter Screen Use this screen to configure IP filtering rules. IPv6/Port Filter is useful to allow or block any traffic to/from specific IPv6 addresses or TCP/UDP ports. To access this screen, click Networking > Firewall > IPv6/Port Filter. LTE7460-M608 User’s Guide...
  • Page 66 Click Edit to go to the screen where you can edit the filtering rule. Click Delete to remove the filtering rule. Apply Click Apply to save your changes back to the LTE7460-M608. Reset Click Reset to reload the previous configuration for this screen.

  • Page 67: Firewall > Ip/Port Forwarding Screen

    B. When you enable port forwarding A can use a Global Port to get into your LAN, the LTE7460-M608 forwards this request to a Private Port inside your LAN to B’s IP address. Figure 51 How Port Forwarding Works To access this screen, click Networking >...

  • Page 68: Firewall > Dos Attack Screen

    Enter the inside IP address of the virtual server here. Private Port A private port is a port that causes (or triggers) the LTE7460-M608 to record the IP address of the LAN computer that sent the traffic to a server on the WAN.

  • Page 69: Firewall > Alg Screen

    7.9 Firewall > ALG Screen Click Networking > Firewall > ALG to open the ALG (Application Layer Gateway) screen. Use this screen to add NAT (Network Address Translation) filters into your LTE7460-M608’s gateway to support packets and sessions for certain application layer protocols.

  • Page 70: Firewall > Dmz Screen

    Table 24 Networking > Firewall > DMZ LABEL DESCRIPTION Enable DMZ Click on the check box to enable the DMZ in your LTE7460-M608. IP Address Enter the IP address of the default server which receives packets from ports. Apply Click Apply to save your changes back to the LTE7460-M608.

  • Page 71: Ddns Settings Screen

    DNS service provider will give you a password or key. Use the Dynamic DNS screen to enable DDNS and configure the DDNS settings on the LTE7460-M608. To change your LTE7460-M608’s DDNS, click Networking > DDNS Settings. The screen appears as shown.

  • Page 72: Vpn Pass Through Screen

    IPSec VPN account. If IPSEC is disabled, then when a client sends a request to a VPN server, the server will reply to the LTE7460-M608 and the LTE7460-M608 will drop the request. When IPSEC is enabled, the LTE7460-M608 will forward the reply from the VPN server to the client that initiated the request, and the connection will establish successfully.

  • Page 73: Certificate Management Screen

    Certificates provide a way to exchange public keys for use in authentication. Use this screen to view the LTE7460-M608’s summary list of certificates and certification requests and import certificates to authenticate the users in the LTE7460-M608’s network. You can import the following certificates to your LTE7460-M608: •...

  • Page 74: Bandwidth Management Screen

    Web Certificate Click Choose File to find the web server certificate file you want to upload. Then click Apply to upload it to your LTE7460-M608. SSH Certificate Click Choose File to find the SSH certificate file you want to upload. Then click Apply to upload it to your LTE7460-M608.
  • Page 75 Select a profile from the drop-down list to be the LTE7460-M608’s default bandwidth management profile. Bandwidth Management List Add new Click Add new to add a new device to one of the LTE7460-M608’s bandwidth management profiles. This field displays the device’s index number. LTE7460-M608 User’s Guide...

  • Page 76: Remote Management Screen

    Click Edit to go to the screen where you can edit the MAC address and/or the bandwidth management profile. Click Delete to remove the device from the list. Apply Click Apply to save your changes back to the LTE7460-M608. Reset Click Reset to reload the previous configuration for this screen. 7.15 Remote Management Screen Remote management allows you to determine which services/protocols can access which LTE7460- M608 interface (if any) and from which computers.
  • Page 77 A secured client is a “trusted” computer that is allowed to communicate with the LTE7460-M608 using HTTPS, SSH or Telnet service. Select All to allow any computer to access the LTE7460-M608 using HTTPS, SSH or Telnet service. Use the Selected (IP/Subnet) field to specify an IP address that will access the LTE7460-M608 using HTTPS, SSH or Telnet service.

  • Page 78: Icmp Screen

    Chapter 7 Networking 7.16 ICMP Screen If an outside user attempts to probe an unsupported port on your LTE7460-M608, an Internet Control Message Protocol (ICMP) response packet is automatically returned. This allows the outside user to know the LTE7460-M608 exists. Your LTE7460-M608 supports anti-probing, which prevents the ICMP response packet from being sent.
  • Page 79 (and TCP or UDP source port numbers for Many-to-One and Many-to-Many Overload NAT mapping) in each packet and then forwards it to the Internet. The LTE7460-M608 keeps track of the original addresses and port numbers so incoming reply packets can have their original values restored.

  • Page 80: About Firewall

    Denials of Service (DoS) attacks are aimed at devices and networks with a connection to the Internet. Their goal is not to steal information, but to disable a device or network so users no longer have access to network resources. The LTE7460-M608 is pre-configured to automatically detect and thwart all known DoS attacks.
  • Page 81 M608 checks the source IP address, destination IP address and IP protocol type of network traffic against the firewall rules (in the order you list them). When the traffic matches a rule, the LTE7460-M608 takes the action specified in the rule.
  • Page 82 By default the LTE7460-M608 stops computers on the WAN from managing the LTE7460-M608. You could configure one of these rules to allow a WAN computer to manage the LTE7460-M608. Note: You also need to configure the remote management settings to allow a WAN computer to manage the LTE7460-M608.
  • Page 83 FTP servers. Does this rule conflict with any existing rules? Once these questions have been answered, adding rules is simply a matter of entering the information into the correct fields in the web configurator screens. LTE7460-M608 User’s Guide...
  • Page 84 Chapter 7 Networking LTE7460-M608 User’s Guide...

  • Page 85: Applications

    SMS (Short Message Service) allows you to send and view the text messages that the LTE7460-M608 received from mobile devices or the service provider. When the SMS box is full the LTE7460-M608 will begin to delete older entries as it adds new ones. 8.1.1 What You Can Do in this Chapter •...

  • Page 86: Sim Contacts Screen

    Figure 65 Applications > Contacts > SIM Contacts The following table describes the labels in this screen. Table 32 Applications > Contacts > SIM Contacts LABEL DESCRIPTION SIM Contacts This field displays the index number of the contacts. LTE7460-M608 User’s Guide...

  • Page 87: Contacts Settings Screen

    Select a contact format from the drop-down list box to export your contacts. Click Export to begin the download process 8.5 New SMS Screen Use this screen to send messages using the LTE7460-M608. To access this screen, click Applications > Short Message > New SMS. LTE7460-M608 User’s Guide...

  • Page 88: Inbox Screen

    Figure 67 Applications > Short Message > New SMS 8.6 Inbox Screen Use this screen to view messages received on the LTE7460-M608. To access this screen, click Applications > Short Message > Inbox. Figure 68 Applications > Short Message > Inbox...

  • Page 89: Outbox Screen

    Action Click Delete to remove the message record. 8.7 Outbox Screen Use this screen to view messages sent from the LTE7460-M608. To access this screen, click Applications > Short Message > Outbox. Figure 69 Applications > Short Message > Outbox The following table describes the labels in this screen.

  • Page 90: Sim Sms Screen

    Click Delete All to delete all messages. This field displays the index number of the message. From This field displays the name from which the message is sent. Time This field displays the data and time the message was received. LTE7460-M608 User’s Guide...

  • Page 91: Ussd Screen

    Click Delete to remove the message record. 8.10 USSD Screen Use this screen to enter an Unstructured Supplementary Service Data (USSD) code. The LTE7460-M608 sends this code to request different services or features to the Internet service provider. Click Applications > USSD. Enter the code and click Send.

  • Page 92: System

    • Use the System > Time Settings screen to change the LTE7460-M608’s time and date and configure daylight saving time (Section 9.7 on page 97). • Use the System > System Log screen to view logged messages and specify to where the LTE7460-M608 is to send logs (Section 9.8 on page 99).

  • Page 93: The User Account Screen

    9.4 The User Account Screen This screen allows you to set the domain name and change the LTE7460-M608’s system password. It is strongly recommended that you change your LTE7460-M608's system password. To access this screen, click System > User Account.
  • Page 94 Table 39 System > User Account LABEL DESCRIPTION Login Web URL Setting Web Domain Name Enter the domain name you want to give to the LTE7460-M608. Apply Click Apply to save your changes back to the LTE7460-M608. User Settings Username Enter your username of the system account.

  • Page 95: The Settings Profile Screen

    Figure 75 System > Settings Profile 9.5.1 Reset Settings Click the Restore button to clear all user-entered configuration information and return the LTE7460-M608 to its factory defaults. The LTE7460-M608 automatically restarts. You can also press the Reset button located next to the SIM card slot to reset the factory defaults of your LTE7460-M608.

  • Page 96: Import And Export Settings Profile

    To access this screen, click System > Firmware Upgrade. This screen displays the current firmware version and status of the LTE7460-M608. Type in the location of the file you want to upload in the Select Firmware File field or click Choose File to find it. Remember that you must decompress compressed (.ZIP) files...

  • Page 97: The Time Settings Screen

    M608 has a software mechanism to get the current time and date from an external server. To change your LTE7460-M608’s time zone, click System > Time Settings. The screen displays as shown. You can have the LTE7460-M608 get the date and time from a time server or change the IP address or URL of your time server.
  • Page 98 Figure 77 System > Time Settings The following table describes the labels in this screen. Table 41 System > Time Settings LABEL DESCRIPTION Date & Time Device Time This field displays the present time and date of your LTE7460-M608. LTE7460-M608 User’s Guide...

  • Page 99: The System Log Screen

    Click Reset to reload the previous configuration for this screen. 9.8 The System Log Screen Use this screen to specify which logs to display and to where the LTE7460-M608 is to send logs. To access this screen, click System > System Log.
  • Page 100 Select the check box to enable system logging. Log Level Select the level of the logs that the LTE7460-M608 is to record and send to the syslog server. The LTE7460-M608 displays and records the logs with the level equal to or higher than what you selected.

  • Page 101: The Diagnostic Screen

    The log wraps around and deletes the old entries after it fills. Select what logs you want to see from the Log Level drop list. When you select a log level, the LTE7460-M608 searches through all logs of that level or higher. The screen displays the time the log message was recorded.
  • Page 102 DESCRIPTION Diagnostic IP Address Enter the IP address you want to test a connection to your LTE7460-M608. Ping 4 Type the IPv4 address of a computer that you want to ping in order to test a connection. Click PingV4 and the ping statistics will show in the diagnostic.

  • Page 103: Troubleshooting

    Make sure you are using the power adaptor or cord included with the LTE7460-M608. Make sure the power adaptor or cord is connected to the LTE7460-M608 and plugged into an appropriate power source. Make sure the power source is turned on.
  • Page 104 Start > Run, enter cmd, and then enter ipconfig. The IP address of the Default Gateway might be the IP address of the LTE7460-M608 (it depends on the network), so enter this IP address in your Internet browser.

  • Page 105: Internet Access

    You cannot log in to the web configurator while someone is using Telnet to access the LTE7460-M608. Log out of the LTE7460-M608 in the other session, or ask the person who is logged in to log out. Turn the LTE7460-M608 off and on.

  • Page 106: Upnp

    If the problem continues, contact the network administrator or vendor, or try one of the advanced suggestions. 10.5 UPnP When using UPnP and the LTE7460-M608 reboots, my computer cannot detect UPnP and refresh My Network Places > Local Network. Disconnect the Ethernet cable from the LTE7460-M608’s LAN port or from your computer.
