LTE7480-S905
4G LTE-A Outdoor Router

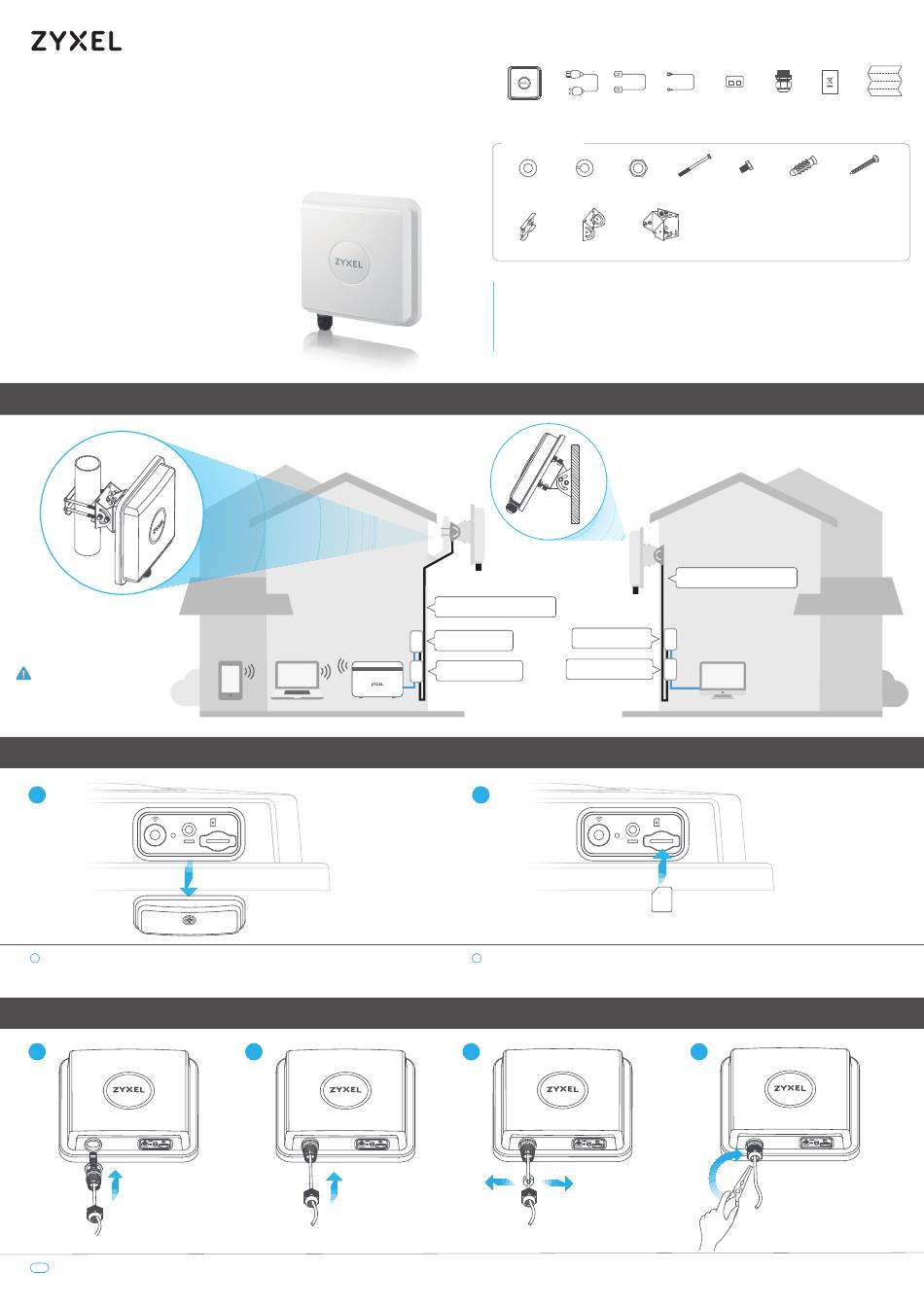

Quick Start Guide
Location Examples
Pole Mounting
Place the LTE7480 in an open area
free of obstacles, and adjust the angle
to point it towards the base station to
have the strongest possible LTE signal.
Step 1
SIM Card Installation
1
RESET
L A N (P o E )
1 Make sure the LTE7480 is turned off. There should be no Ethernet cable connected providing
power using PoE. Unscrew the SIM card slot cover and remove it.
Step 2
Cable Connections
1
1-4 Follow steps 1 to 4 in the drawing to connect an 8-pin Cat 5e Ethernet cable to the LTE7480's LAN port.
1/4
Gateway
Smartphone Laptop
SIM
2
Package Contents
LTE7480-S905 Power
Cord
Mounting Kit
x4 x4
M6 Spring M6 Washers
Washers
x2
Flat Brackets M Bracket
See the User's Guide at www.zyxel.com for more information,
including customer support and safety warnings.
US Importer
Zyxel Communications, Inc
1130 North Miller Street Anaheim, CA 92806-2001
http://www.us.zyxel.com
Copyright © 2019 Zyxel Communications Corp. All Rights Reserved.
Wall Mounting
Cat 5e (not supplied)
Power Outlet
Power Outlet
Power Injector
Power Injector
2
RESET
L A N (P o E )
2 Insert your SIM card provided by an LTE ISP (Internet Service Provider).
3
GbE Grounding Gigabit Cable
Cable Wire PoE Injector Gland
x4 x4 x4
Hex Nuts M6 Hex M6 Hex Nylon Wall
Bolts x90L Bolts x12L
Pre-assembled Kit
Cat 5e (not supplied)
PC
SIM
4
Safety Quick Start
Warnings Guide
x4 x4
Tapping Screw
Plugs M4x25 mm
