Tool
5/32" Hex Key Wrench
Part No. 401331
905624-1
09/15

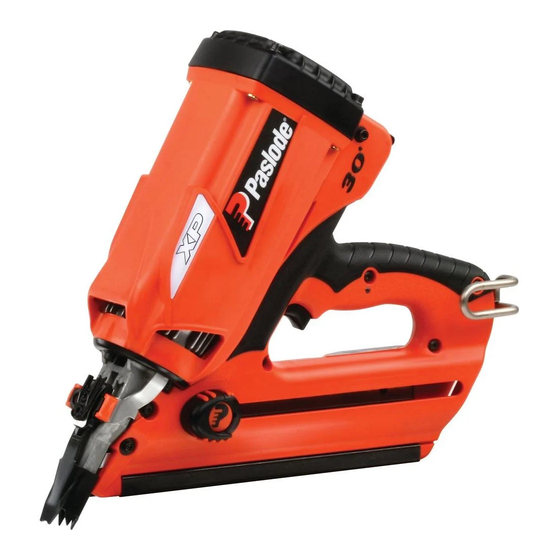

30 Cordless Framing Nailer
This procedure provides a simple but effective way to
clean your Paslode Cordless Framing Nailer and main-
tain reliable operation. Regular cleaning and lubrication
will also extend part life and provide maximum nail
driving power.
Only one tool is necessary to disassemble the Paslode
Cordless Framing Nailer in preparation for cleaning: the
5/32" hex key wrench provided with the Paslode Cord -
less Framing Nailer.
Paslode recommends that an aerosol "Cleaner/Degreaser"
or Paslode
(Canada use Part No. 219086) (Australia, New Zealand
use Part No. B20544L)
This cleaner is available through your local Paslode Dealer.
If a different type of cleaner is selected, make sure that
it will not damage plastic, rubber or electronic compo-
nents. Chemical damage to these materials or compo-
nents may result in the tool being made inoperable.
Although "safety" cleaners generally provide reduced
risk of fire and are more stable than other cleaners, they
cannot be handled carelessly. Always follow the manu-
facturer's instructions and never spray cleaner on the
Paslode Cordless Framing Nailer, unless the tool has
been allowed to cool down.
To begin, you will need the following items:
Cordless Tool Cleaner/Degreaser
(USA)Part No. 219348
(Canada) Part No. 219086
(ANZ) Part No. B20544L
Cleaning Procedure
Cordless Tool Cleaner (Part No. 219348),
®
be used for cleaning.
Paslode Cordless Lubricating Oil
(USA and Canada)Part No. 401482
(ANZ)Part No. B20544F
Advertisement
Related Manuals for Paslode 30 Degree
Summary of Contents for Paslode 30 Degree
- Page 1 Only one tool is necessary to disassemble the Paslode Cordless Framing Nailer in preparation for cleaning: the 5/32" hex key wrench provided with the Paslode Cord - less Framing Nailer. Paslode recommends that an aerosol "Cleaner/Degreaser” or Paslode Cordless Tool Cleaner (Part No.
- Page 2 Paslode Cordless Tool Cleaner/Degreaser. Filter DANGER Never operate the Paslode Cordless Framing nailer unless all four Socket Head Cap Screws are firmly tightened on the cylinder head. Failure to do this could result in tool damage, fire and personal injury.
- Page 3 Handle-Magazine Removal Step 4 Carefully tilt the Handle-Magazine Assembly away from the Motor Assembly and gently pull the two assemblies apart. CAUTION: Use care to ensure that the fan does not scratch the combustion chamber. Also be careful when setting the Handle-Magazine Assembly down so that you do not damage the fan blades or bend the fan motor shaft.
-
Page 4: Cylinder Head
Repeat Step 3 to remove any heavy deposits or remaining residue. Step 3 Thoroughly lubricate the Seal Rings with Paslode Cordless Lubricating Oil, part #401482. Make sure oil is applied evenly around entire Seal Ring. Set the Handle/Cylinder Head Assembly aside. -
Page 5: Motor Assembly
Motor Assembly Step 1 Push the Piston Assembly to the "down" position using the handle portion of the screwdriver or a clean piece of wood. Step 2 Spray a liberal amount of Cordless Tool Cleaner into the i nside of Sleeve and Combustion Chamber. Invert Motor Assembly, and let excess cleaner and dirt drain out. - Page 6 Motor Assembly Step 4 With Motor Assembly tilted up, squeeze 4-5 drops of oil into Sleeve (Area "A") and 5-6 drops onto lower lip of Combustion Chamber (Area "B"). Rotate Motor Assembly while oiling to ensure oil is evenly distributed around Sleeve and lip. See Tool Cutaway Illustration, page 7.
- Page 7 Motor Assembly Step 7 Tilt the Motor Assembly upright, and apply 3-4 drops of Paslode Cordless Lubricating Oil evenly spaced around the top of the Combustion Chamber (Area "C"). Spread the oil using your fingertip. Step 8 Reassemble the Paslode Cordless Framing Nailer following disassembly Steps 1-3, page 2 in Reverse order.
-
Page 8: Operating Conditions
40000 shorter ed periods , cleaning should be performed at intervals. Paslode has developed this chart as a guideline to assist you in establishing the proper cleaning 30000 schedule for the type of use the tool is getting. If find that the suggested cleaning interval is al-... - Page 9 Allen (llave de cabeza hexago- nal) de 5/32 plg. que se entrega junto con su clavadora Impulse. Paslode recomienda que use un limpiador en aerosol, tal como el "limpiador de seguridad" Paslode (No. 219348). Este limpiador está disponible a través de su representante Paslode.
- Page 10 Paso 2 Cubierta Quite la cubierta y el filtro. Limpie los con aqua con Filtro javon o con Paslode's Degreaser Cleaner. Paso 3 Quite la tapa y el filtro y destornille los cuatro tornillos de casquete de boca tubular #10-24.
- Page 11 Conjunto del mango y el mecanismo de alimentacion Paso 4 Tire suavemente del mango y el mecanismo de alimentacion alejándolo del conjunto del motor y levántelo hasta que el ventilador libre el conjunto de la cámara de combustión. PRECAUCION: Trabaje con cuidado para asegurarse de que el ventilador no raspe la cámara de combustión.
- Page 12 2 X son 180 grados, frente a unos de otros, después de la lubricación. Nota: El aceite lubricante Paslode Cordless está especialmente formulado para usarse con la clavadora. El uso de otros tipos de lubricantes puede causar una acumulación rápida de residuos de la combustión o la descompostura prematura...
- Page 13 Conjunto del motor Paso 1 Oprima el conjunto del pistón hasta la posición abajo con el mango de un martillo o con un pedazo limpio de madera. Paso 2 Aplique una buena cantidad de limpiador de se- guridada dentro de la manga y de la cámara de combustión.
- Page 14 Conjunto del motor Paso 4 Con el conjunto del motor hacia arriba, ponga entre 4y 5 gotas de aceite lubricante en la manga (Area "A") y des 5 a 6 gotas en el labio inferior de la cámara de combustión (Area "B"). Gire el conjunto del motor mientras aplica las gotas de aceite para asegurarse de que el aceite se dis- tribuye...
- Page 15 Conjunto del motor Paso 7 Incline el conjunto del motor y aplique entre 3 y 4 gotas de aceite lubricante Paslode Cordless uniformemente alrededor de la parte superior de la camara de combustión (area "C"). Disperse el aceite con el dedo.
-
Page 16: Condiciones De Operación
Paslode Cordless varia dependiendo del número de clavos instalados y de las condiciones de operación en las que se use la herramienta. Si usa la clavadora Paslode Cordless en un iente sucio o durante largos períodos, debe 40000 limpiarla a intervalos más cortos.
