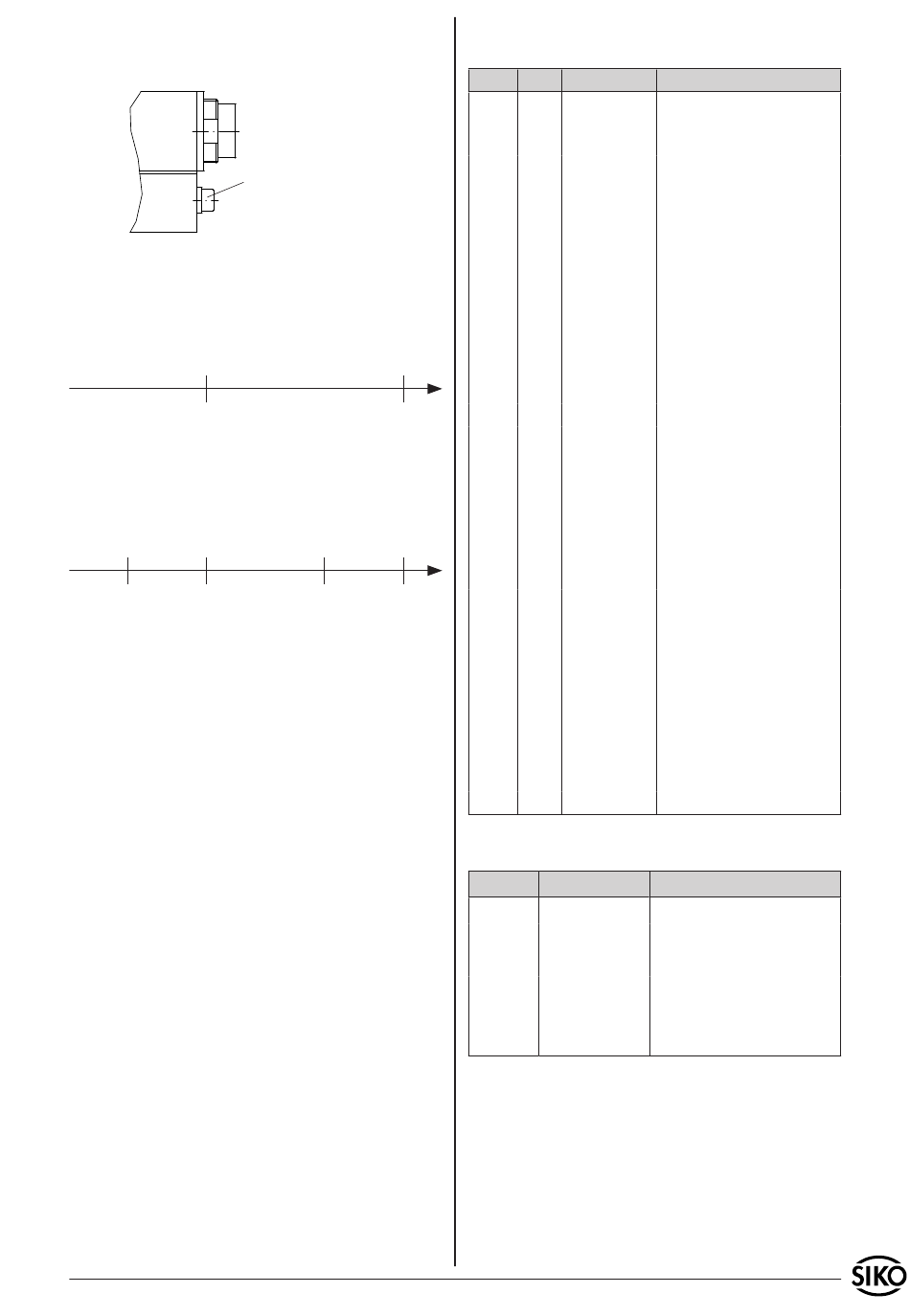

head stud (SW2,5) which must be screwed out
up to the stop and then, after approx. 1 second,
entirely screwed in to maintain tightness.
5.6 Measurement range
Band coding:
The absolute coding of MBA511 enables a max.
measurement range of 20480mm.
0
+20479999 +1
Position value (-480,00 ... +20.000mm)
In order to avoid leaps occurring around the maxi-
mum value at the 0 position, this maximum value
is limited to 20m. This enables recording of a ran-
ge of up to -480mm in negative travel direction.
0
+1999999 -48000 -1 +1
6. Trouble shooting
Below there are some typical errors which may oc-
cur during installation and operation:
• Sensor not or incorrectly connected (for pin
connection see chapter 4).
• Tolerance for the gap between magnetic sensor and
magnetic strip not observed over the total travel
distance. Sensor touches strip (see chapter 7).
• Cable squeezed / interrupted / cut by sharp
edges.
• Sensor's active side not mounted towards the
magnetic strip (see fig. 8).
• Sensor and magnetic strip have been incorrectly
aligned (see chapter 1).
• Magnetic fields near the measuring surface distort
the measuring values. If required, provide for
adequate screening.
• Wrong measuring values due to EMC interferences
(see chapter 4).
7. List of commands / service mode
Parameters: 19200 Baud, no parity, 8 bit, 1 stop
bit, no handshake
Data code: ASCII / Hexadecimal
Value range: 2/3 Byte: 0...65535 / 0...± 2
MSA511+MBA511 Datum 15.02.2010
zero-setting screw
0
+20479999 +1
0
+1999999 -48000 -1 +1
23
All replies which are confirmed by ">" end with
"CR" (Dez 13).".
Com. Length Reply
a 1/13 "MSA511V1.00>" Device type/software version
b 1/4 "ba3f"
cxy 3/4 "xy>"
dxyabcd 7/2 ">"
g 1/8 "a3170216"
k 1/0 ""
l11100 6/2 ">"
p11100 6/2 ">"
q 1/2 "31"
s11100 6/2 ">"
tx 1/2 ">"
u 1/5 "abc"
yx 2/10 "+abcdefg>"
z 1/10 "+abcdefg>"
EEPROM memory array:
Address Size in words Assignment
0 1
1 1
2 1
3 1
4 - 5 2
6 1
Art.Nr. 81105
Description
2x2 byte analogue converter
values (4 byte)
Readout EEPROM values
xy = address 00 ... 63 value re-
turned 2 byte hexadecimal
Stores EEPROM values
xy = address 00 ... 06 abcd 2
byte values hexadecimal
2 byte offset-0;
2 byte offset-1;
2 byte Ink-Gap;
2 byte absolute zero value
Software reset
Zero-setting (position value is
set to 0)
Starts alignment
1. byte = mode;
2. byte = alignment flag
Set device to default values;
Alignment will be cleared!
default values:
counting direction = up
(in travel direction, increasing
values; see fig. 1)
Zero point value = 0
Determine counting direction
x=0: up
x=1: down
a = quadrant (0 or 1);
b = Pol1-sensor (0 or 1);
c = Pol2-sensor (0 or 1)
x=0: fine value
x=1: rough value
x=2: absolute value 0
x=3: absolute value 1
x=4: position value
position value
offset-0
offset-1
ink-Gap
absolut-null-wert
zero setting value (Long)
counting direction
