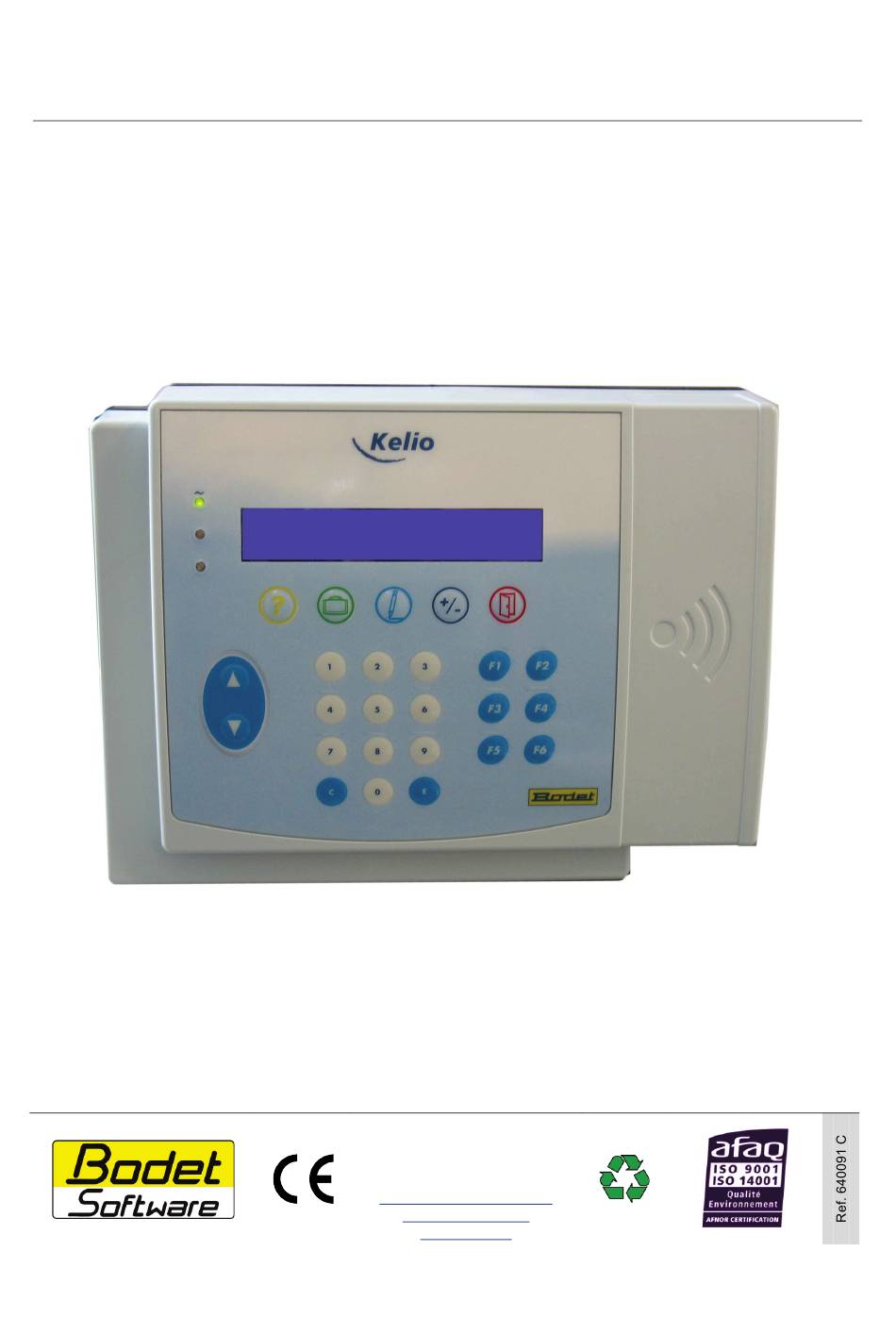

- Page 1 KELIO VISIO Terminal Instructions When you receive the product, make sure that it has not been damaged during transport and notify any reservations to the carrier. BODET Software B.P. 40211 Boulevard du Cormier F - 49302 CHOLET Cedex www.bodet-software.com marketing@bodet-...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INITIAL CHECK ............................ 2 WARNING ............................2 TERMINAL OVERVIEW ........................3 3.1 C ............................ 3 ONNECTORS 3.2 P ............................4 ILOT LAMPS OPERATION OF PILOT LAMPS ......................5 INSTALLATION ............................ 6 5.1 M ......................... 6 ECHANICAL INSTALLATION 5.2 E ........................ -
Page 3: Connectors
Event-driven [G] IP connector (Ethernet [B8] RS485 10/100) polling [K] Badge readers connector [B9] Alarm input [L] RS232 connector badge reader (for example Mifare) [D] RTC concentrator [F] SubD9 block maintenance connector [E] RTC line connector for Bodet board... -
Page 4: Pilot Lamps
3.2 Pilot lamps [A] Key [C] Protection plate [12] Main power supply lamps [13] External [I] Battery 12 V lamp [10] TX–RX lamps Event-driven COM4 [14] Ethernet 10/100 status lamps synchronization status lamp 12 V lamp [9] TX–RX lamps 5 V lamp COM3 polling [11] TX–RX... -
Page 5: Operation Of Pilot Lamps
4. OPERATION OF PILOT LAMPS PILOT LAMPS OPERATION RX/TX and RING [1] Operation linked to RTC modem (when the option is installed). Ring LED signal as and when the telephone (RX-MOD TX-MOD RI) rings CPU [2] (two-coloured) 10-second blinking as the concentrator is powered up or the CPU board is reset. -
Page 6: Installation
Connect the low voltage power cord of concentrator block [B3] to the external electrical devices (typically BODET Kar readers). The amperage supplied by the terminal on this concentrator block is limited to 200 mA. The maximum voltage supplied is 14.5 V... -
Page 7: Connecting Communication Links
DTR (4) to inhibit the flow 3. Connect the event-driven RS485 line [B7] to the other peripherals such as Kelio Visio (depending on software configuration). 4. Connect the polling RS485 line [B8] to the peripherals such as attendance boards, Kar readers, GPS receiver (depending on software configuration). -
Page 8: Adjusting And Testing The Terminal
6. ADJUSTING AND TESTING THE TERMINAL The LCD’s screen contrast can be adjusted (see below). It must be noted that the RS232 serial link can be tested with two test DIP switches (see below). -
Page 9: Performing Actions Directly On The Terminal
7. PERFORMING ACTIONS DIRECTLY ON THE TERMINAL Enter the menu with a technician code and click on E to validate. If a connection has been previously established, you can enter in the menu with a code. Click on E to validate this code. This code is configured in the Installation Module of the Kelio software, >... -
Page 10: Messages On The Terminal
8. MESSAGES ON THE TERMINAL 8.1 Initialization messages These are the main messages that may be displayed by the terminal when starting the power supply: 1 5 / 0 4 / 2 0 1 2 1 7 : 4 8 - B O D E T - - - - - - - - - 1 5 / 0 4 / 2 0 1 2... -
Page 11: Modifying The Ip Interface Setting Up
The IP interface setting up can be modified from a computer connected to the Ethernet local network, via Telnet. Manual setting up procedure of a Kelio Visio terminal via Telnet: 1. Starting the "Telnet" program. 2. Connecting to the IP interface of Kelio Visio terminal. -
Page 12: Reset Ip Address
• Enter the Rst module (Reset). 9.5 Connection There are three ways to see and test the connection between Kelio Visio and the server/computer: • Perform a communication test in INSTALLATION > TERMINALS MENU > MAINTENANCE > COMMUNICATION TEST > RUN •... -
Page 13: Safety Instructions And Equipment Protection
10. SAFETY INSTRUCTIONS AND EQUIPMENT PROTECTION This equipment should be installed and maintained by authorized personnel. Installation must comply with the current IEC364 standards (NFC15-100 in France). Since the device is class I, the protective earth connection is absolutely required at the mains concentrator block. -
Page 14: Technical Characteristics
11. TECHNICAL CHARACTERISTICS 11.1 Space requirements 141.5 93.6 11.2 Types of terminals There are 2 types of terminals: Terminals with proximity reader Terminals with magnetic badge reader... - Page 15 The terminal is inserted in the Kelio system via a network connected to a computer. Description Features Storage capacity 32 Mo, 50.000 clockings Autonomous operation 2 hours on internal battery Clocking distance for 125 kHz proximity 0.5 to 5 cm according to type of badge badges Mains supply voltage 230 V +/- 50 % 50 Hz...
- Page 16 KELIO VISIO BIO TERMINAL Instructions The document relates to the following products: KELIO VISIO IP/RS232 KELIO VISIO ACTIVITY IP/RS232 KELIO VISIO MODEM Biometric fingerprint + proximity Biometric fingerprint + MIFARE Classic and Desfire Biometric fingerprint standalone 926134 926114 926142 proximity HID reader...
- Page 17 TABLE OF CONTENTS INITIAL CHECK ............................2 WARNING ..............................2 TERMINAL OVERVIEW ........................... 3 ............................ 3 ONNECTORS ............................4 ILOT LAMPS ....................... 5 PERATION OF PILOT LAMPS INSTALLATION ............................6 ......................... 6 ECHANICAL INSTALLATION ........................6 LECTRICAL INSTALLATION ....................6 ONNECTING COMMUNICATION LINKS ........................
-
Page 18: Terminal Overview
RS232 [J] Inter-board ribbon cable IP connector [B7] RS485 (Ethernet Event-driven 10/100) Badge readers [B8] RS485 connector polling RS232 connector [B9] Alarm badge reader (for input example Mifare) [M] 30 point biometry connector line connector Bodet board SubD9 maintenance connector... -
Page 19: Pilot Lamps
3.2 Pilot lamps Protection plate [12] Main power supply lamps [13] External Battery 12 V lamp [10] TX–RX lamps Event-driven COM4 [14] Ethernet 10/100 status lamps synchronization 12 V lamp status lamp TX–RX lamps 5 V lamp COM3 polling [11] TX–RX TX–RX reader... -
Page 20: Operation Of Pilot Lamps
3.3 Operation of pilot lamps PILOT LAMPS OPERATION Operation linked to RTC modem (when the option is RX/TX and RING [1] installed). Ring LED signal as and when the telephone (RX-MOD TX-MOD RI) rings 10-second blinking as the concentrator is powered up or the CPU board is reset. -
Page 21: Installation
DB9 connector to the PC Terminal block F Connect the event-driven RS485 line [B7] to the other peripherals such as Kelio Visio (depending on software configuration). Connect the polling RS485 line [B8] to the peripherals such as attendance boards, Kar readers, GPS receiver (depending on software configuration). -
Page 22: Reader's Connection
Secure the cables using the tightening collars [R]. Put the protection plate back into place [C]. Re-install the front panel at the back of the terminal. If necessary and before closing the casing, power up to adjust/configure the terminal (see page 7 in these instructions). -
Page 23: Enrolment
5. ENROLMENT Before you can clock using the biometric sensor, you must “enrol” yourself. To do so, enter the 4- digit code using the biometric terminal keypad (configured in the Installation Module of the Kelio software, H > T > S >... - Page 24 The following display appears on the screen: PLACE ANOTHER FINGER QUIT Place another finger. REMOVE YOUR FINGER The following display appears on the screen: QUIT Remove your finger. Place and remove the finger as many times as requested. If the enrolment is successful, the following display USER ENROLLED appears on the screen: Then press the QUIT key 3 times to exit the...
-
Page 25: Identification Mode
5.2 Identification mode The following display appears on the screen: SETUP COM TEST QUIT Press the BIO key. The following display appears on the screen: BIOMETRY ENROLL QUIT Press the ENROLE key. ENROLMENT The following display appears on the screen if the BADG CODE LIST QUIT terminal does not have a Mifare reader:... -
Page 26: Enrolment Recommendations
The following display appears on the screen: PLACE ANOTHER FINGER QUIT Place another finger. The following display appears on the screen: Remove your finger. REMOVE YOUR FINGER QUIT Place and remove the finger as many times as requested. If the enrolment is successful, the following display appears on the screen: USER ENROLLED Then press the QUIT key 3 times to exit the... -
Page 27: Information And Precautions To Take In Relation To Biometric Identification Processes
Bodet Software cannot therefore guarantee constant, pre-determined performances. 6.2 Data security The fingerprints are stored on the reader's electronic card. The fingerprints are encrypted by an algorithm and are called "templates". -
Page 28: Adjusting And Testing The Terminal
7. ADJUSTING AND TESTING THE TERMINAL The LCD’s screen contrast can be adjusted (see below). It must be noted that the RS232 serial link can be tested with two test DIP switches (see below). -
Page 29: Messages On The Terminal
8. MESSAGES ON THE TERMINAL These are the main messages that may be displayed by the terminal when starting the power supply: 15/07/2013 17:48 - BODET- - - - - - - - 15/07/2013 17:48 - BODET- BO O T IN G .. . -
Page 30: Maintenance Of The Biometric Module
9. MAINTENANCE OF THE BIOMETRIC MODULE 9.1 Replacing the optical biometric sensor part Undo the ribbon cable situated between the sensor and the electronic board [A], at the electronic biometric board level. Unscrew the retaining screw of the sensor [B]. The sensor is now disconnected from the terminal. -
Page 31: Performing Actions Directly On The Terminal
10. PERFORMING ACTIONS DIRECTLY ON THE TERMINAL Enter the menu with a technician code and click on E to validate. If a connection has been previously established, you can enter in the menu with a code. Click on E to validate this code. This code is configured in the Installation Module of the Kelio software, H >... -
Page 32: Modifying The Ip Interface Setting Up
Confirm by clicking on Save. 4. Confirm the change again by clicking on Save. 11.4 Connection test There are three ways to see and test the connection between Kelio Visio and the computer: 1. Perform a communication test in I > T >... -
Page 33: Safety Instructions And Equipment Protection
12. SAFETY INSTRUCTIONS AND EQUIPMENT PROTECTION This equipment should be installed and maintained by authorized personnel. Installation must comply with the current IEC364 standards (NFC15-100 in France). Since the device is class I, the protective earth connection is absolutely required at the mains concentrator block. -
Page 34: Technical Characteristics
13. TECHNICAL CHARACTERISTICS 13.1 Space requirements 93.6 13.2 Types of terminals There are 2 types of terminals, with or without badge reader. - Page 35 PC serial link RS232 COM3 and COM4 serial links RS485 Internal protections By internal, automatically resettable fuses. Weight 1.7 kg Screen 2 line x 24 character LCD backlit display (blue) Casing material ABS plastic © 2013 Bodet Software. All rights reserved.
