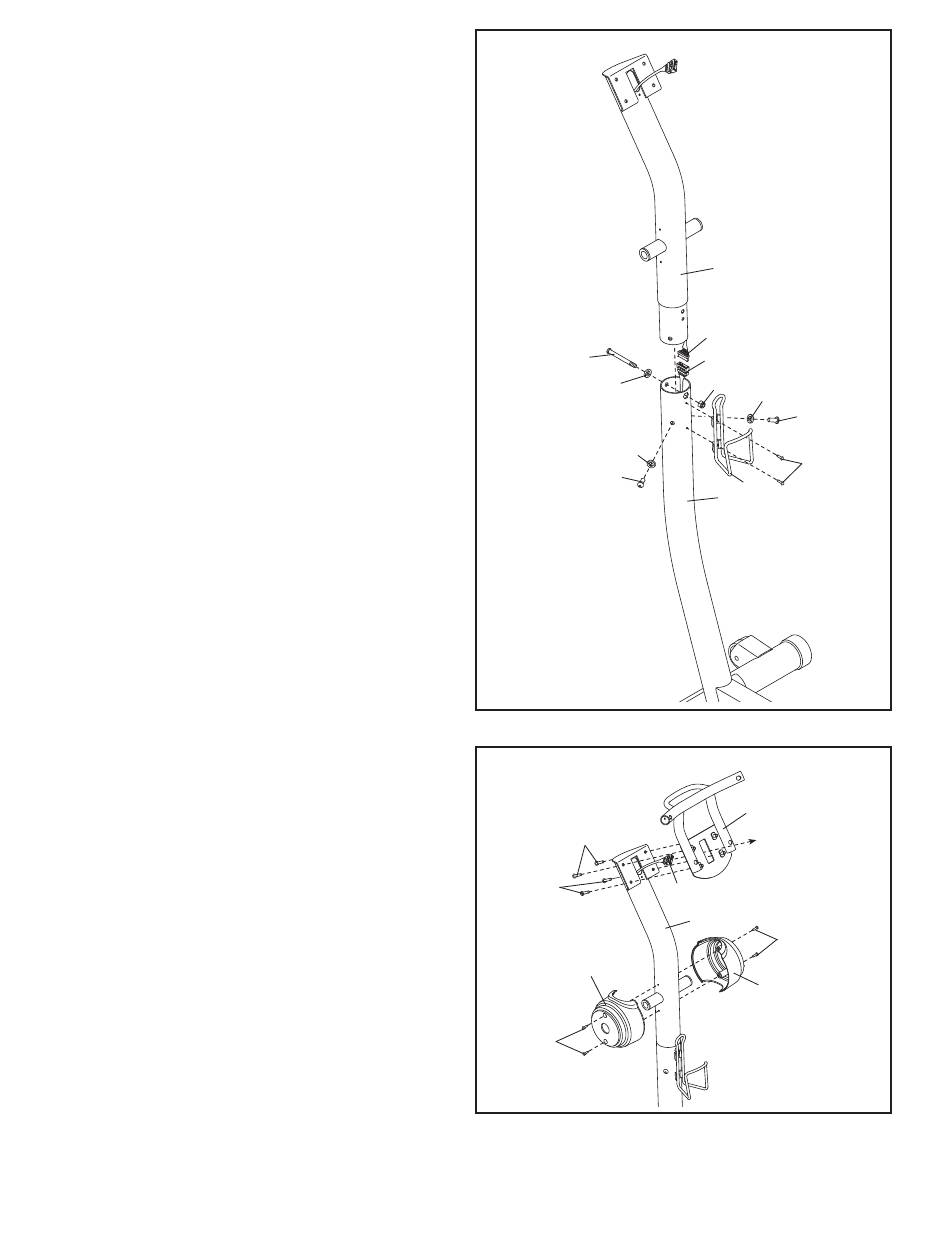

5. While another person holds the Upright (3),
connect the Upper Wire Harness (48) to the
Lower Wire Harness (49).
Gently pull the upper end of the Upper Wire
Harness (48) to remove any slack, and insert
the Upright (3) into the Base (1).
Tip: Avoid pinching the wires. Attach the
Upright (3) with an M8 x 69mm Button Bolt (80),
an M8 Split Washer (90), and an M8 Jam Nut
(79). Do not tighten the Button Bolt yet;
make sure that the Jam Nut is in the hexago-
nal hole in the Base.
Next, finger tighten two M8 x 23mm Button
Screws (84) with M8 Split Washers (90) into the
Base (1). Do not tighten the Button Screws
yet.
Attach the Water Bottle Holder (22) to the Base
(1) with two M4 x 14mm Screws (104).
6. Insert the end of the Upper Wire Harness (48)
through the rectangular hole in the Console
Bracket (4).
Attach the Console Bracket (4) to the Upright
(3) with four M6 x 20mm Button Screws (77).
Orient one of the Upright Covers (17) as shown,
and hold it against the Upright (3).
Attach the Upright Cover (17) with two M4 x
16mm Round Head Screws (101). Attach the
other Upright Cover in the same way.
