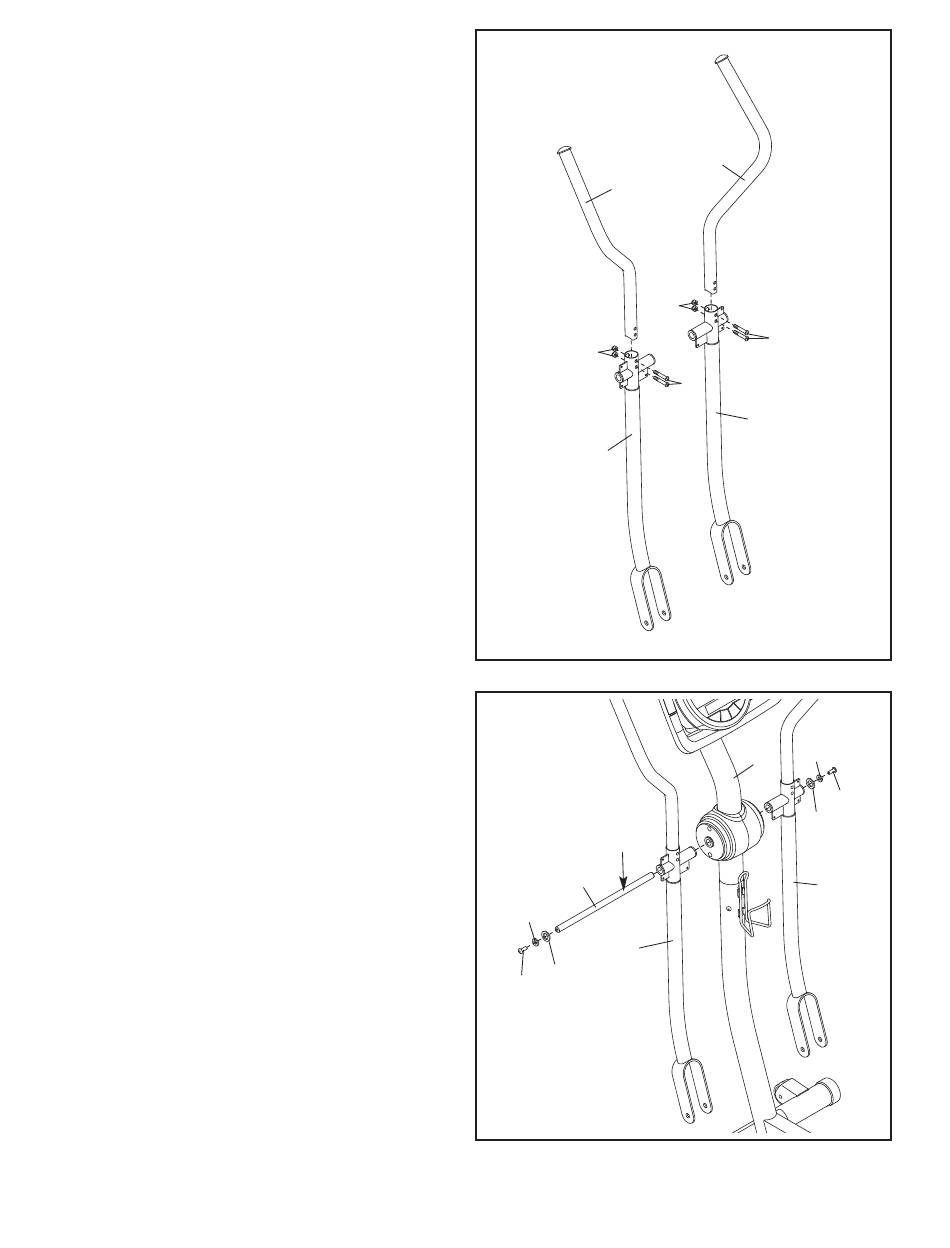

9. Identify the Left Handlebar (8) and the Left
Upper Body Leg (11), which are marked with
"Left" stickers, and orient them as shown.
Insert the Left Handlebar (8) into the Left Upper
Body Leg (11).
Attach the Left Handlebar (8) with two M8 x
43mm Button Bolts (78) and two M8 Jam Nuts
(79). Make sure that the Jam Nuts are in the
hexagonal holes in the Left Upper Body Leg.
Attach the Right Handlebar (9) to the Right
Upper Body Leg (12) in the same way.
10. Insert the Pivot Axle (74) into the Upright (3) and
center it. Apply a generous amount of the
included grease to the Pivot Axle.
Orient the Left Upper Body Leg (11) as shown,
and slide it onto the left end of the Pivot Axle
(74). Slide the Right Upper Body Leg (12) onto
the right end of the Pivot Axle.
Tighten an M8 x 23mm Button Screw (84) with
an M8 Washer (88) and a Wave Washer (111)
into each end of the Pivot Axle (74) at the same
time. Make sure that the Wave Washers are on
the ends of the Pivot Axle.
