Summary of Contents for Hafele ER5000

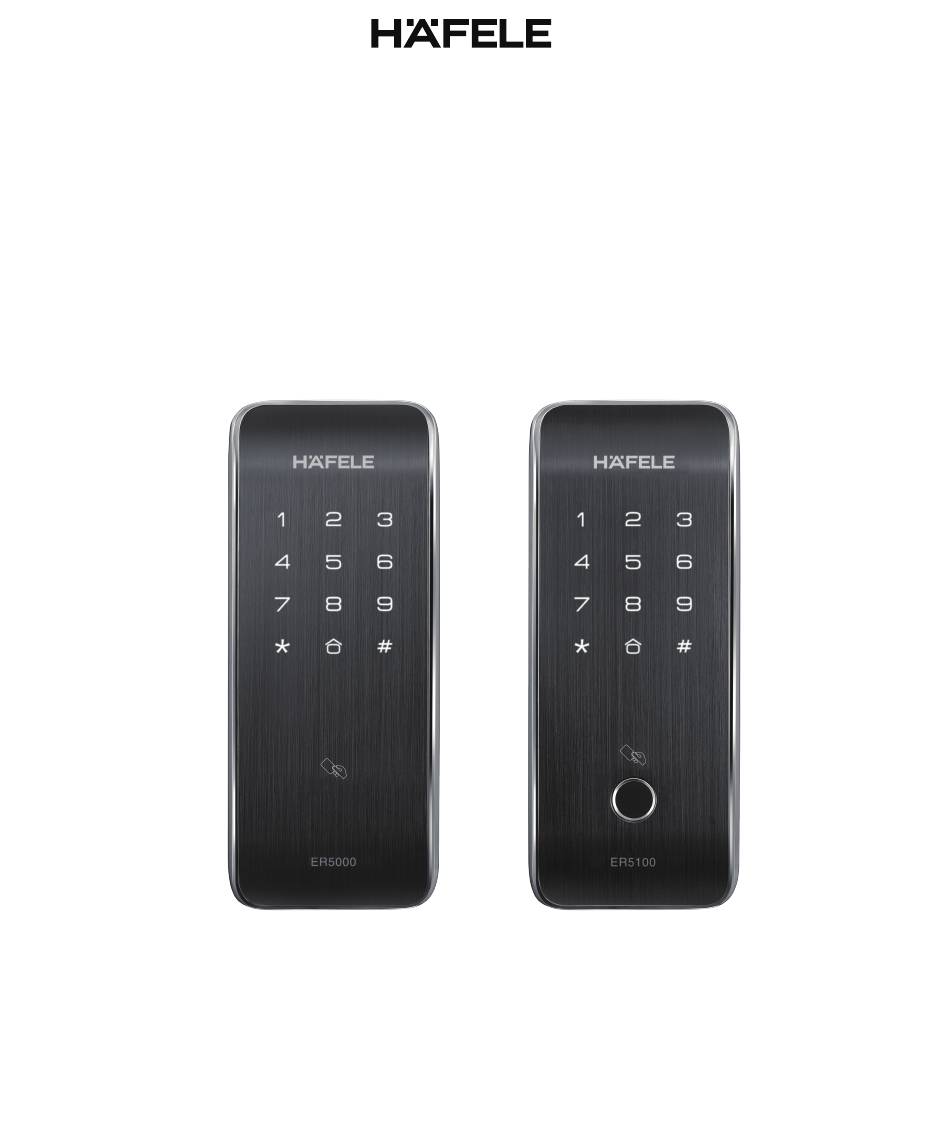

- Page 1 Installation guide ER5000 ER5100 www.hafele.com * The contents of this user manual are subject to change without prior notice to the user in order to enhance performance of the products.
- Page 2 outside panel inside panel Battery cover Sensor latch bolt Touch screen Keypad Card reader Manual open/ Fingerprint area close knob sensor (Only availabe Dead bolt on ER5100) Open/close button 71mm 77mm Reboot Micro USB emergency power supply 13mm 48mm...
- Page 3 Wood Combination Screws ST4 X 20mm Inside Panel Outside Panel Inside Mounting Plate Flat Head Screws M5 X 30mm (Door thickness 30~40mm) Mounting Screws M4 X 6mm Strike Strike Plates (5mm) Strike Plates (2.5mm) Flat Head Screws M5 X 40mm (Door thickness 40~50mm)
- Page 4 Left handed door Right handed door 1.Check whether the door is left handed or right handed before installation. Left handed door Right handed door 2.Confirm inside panel installation direction. Inside Inside Edge the door 3.Based on door type and direction,match and hold intallation template on door tightly and drill a hole on door.
- Page 5 1.Get the front panel cable through the drill 2.Get the outside panel cable through the hole on the door. inside panel bracket and fix screws from inside of the door. Be careful not to damage the connecting cable. 3.Depending on installation condition,fix proper 4.Get the outside panel cable connected positon of striker with screws.
- Page 6 5.Get the inside panel on the bracket and 6.Fix battery cover screws after insert 4ea batteries fix screws. and test functions.
- Page 7 Edge the door Left handed door Edge bolt Dead bolt Need to drill a hole with 32mm diameter 45~50mm Backset 45~50mm...
- Page 8 Edge the door Right handed door Backset 45~50mm 45~50mm Need to drill a hole with 32mm diameter Dead bolt Edge bolt...
