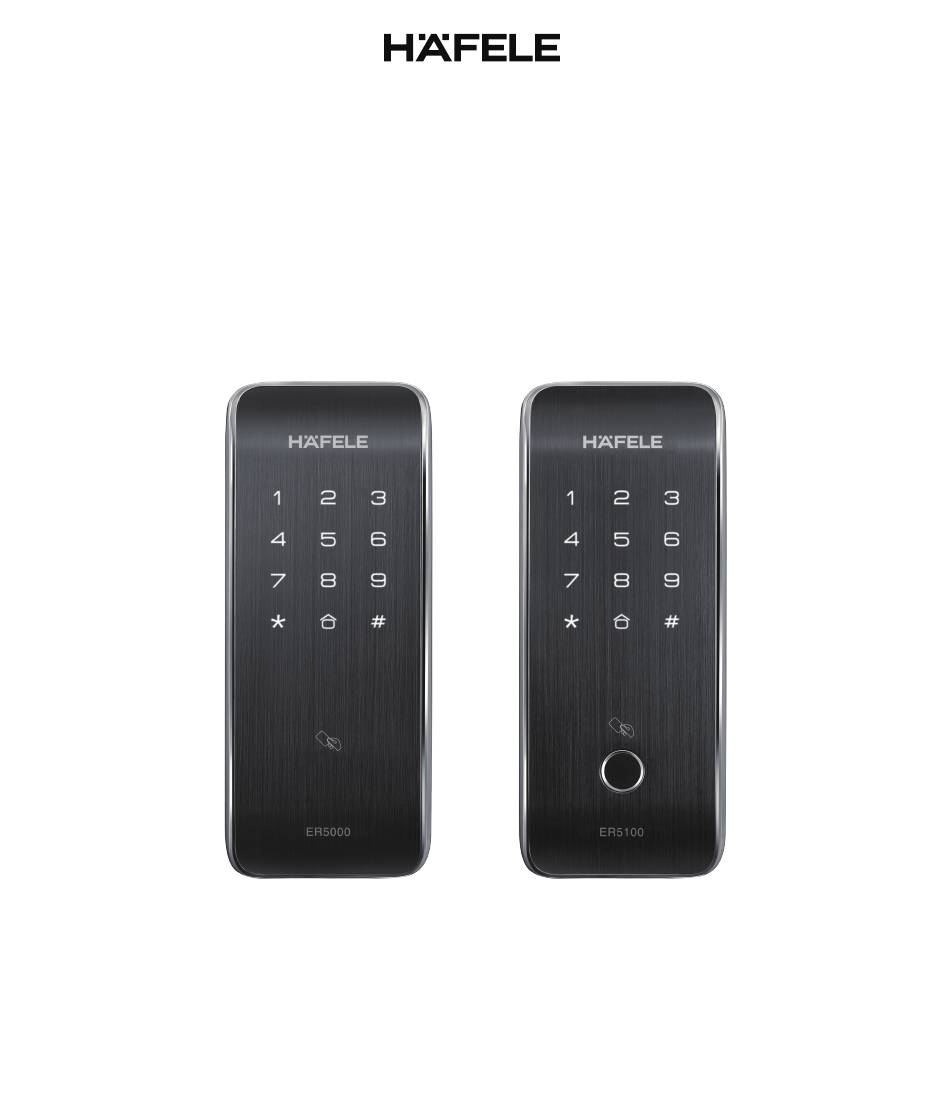

- Page 1 User Manual ER5000 ER5100 www.hafele.com * The contents of this user manual are subject to change without prior notice to the user in order to enhance performance of the products.
- Page 2 * Read and understand all instructions before you use your product. * If damage is caused by failure to follow instructions, the warranty does not apply. * Only use the alkaline batteries. * Do not expose the product and accessories to rain or water. * Do not expose the product to corrosive substances so as not to damage the protective cover.
- Page 3 Battery cover Touch screen Sensor Keypad latch bolt Card reader Fingerprint area sensor (Only availabe on ER5100) Manual open/ close knob Dead bolt Open/close button Reboot Micro USB emergency power supply 1. You can operate following the voice guide by multi-language(English/Spanish/Portuguese/French). 2.
- Page 4 Master Mode: The Master Mode could be entered by entering “**+Master PIN Code+#” to programming the lock. Master PIN code: The Master PIN Code is used for unlock,programming and setting feature.The default Master PIN code[12345 678] is required to be changed immediately after enter the menu for the first time. Auto locking: After unlocking successful by PIN Code/ Fingerprint/ Card/ APP, it will automatically locking in auto mode once the door is closed.
-
Page 5: Factory Defaults
Reset button: After reset operation, the lock will be restored to factory default settings, all user credentials will be deleted. Refer to reset guide. Privacy mode: After holding the CLOSE/OPEN button for 3 seconds, the lock will be set to Privacy mode, it restricts all user PIN code/ Fingerprint/ Card, except Master PIN code and APP. - Page 6 -Change Master PIN code 1.Before changing default Master PIN code, all other setting menu will be disabled.You have to change Master PIN code first, then do other lock settings. -Add Up User PIN Codes User PIN codes can be programmed through the Master PIN Code. 1.When registering User PIN Codes, the code must be entered within 10 seconds or time expires.
- Page 7 -Delete User PIN Code User PIN codes can be programmed through the Master PIN Code. 1.When deleting User PIN Codes, the User Number must be entered within 10 seconds or time expires. 2.No matter setting succeed or failed, the process won’ t completed and stay at current stage, you can press “*” to return to previously menu.
- Page 8 Manual Mode -Language Settings (including silent mode) Silent Mode feature can only be programmed in language settings through the Master PIN Code. English Spanish Portuguese French Chinese Silent Mode -Enable Away Mode Away Mode feature can only be programmed through the Master PIN Code. 1.
- Page 9 Press[1] Modify Master PIN code ER5100 ER5000 1.Add User PIN Code 1.Add User PIN Code 2.Add User Fingerprint Press[2] 3.Add User Card 3.Add User Card 1.Modify Master PIN code 1.Delete User PIN Code 1.Delete User PIN Code 2.Delete User Fingerprint Press[3] 2.User Setting...
- Page 10 Open Door 1. Open from outdoor PIN code Fingerprint Card 1.Touch pad screen by Place the enrolled finger Place the enrolled palm to lighten keypad properly on the fingerprint card properly on the 2.Enter the enrolled PIN sensor area until one beep card icon area until code with the end of [#].
-
Page 11: Reset To Factory Default Settings
Enable Privacy Mode When the door is closed, long press CLOSE/OPEN button for 3 seconds to enable privacy mode. In privacy mode, all user PIN code /fingerprint /card will be prohibited, except Master PIN code and APP key. And if the device is unlocked from indoor , the alarm will be triggered until PIN code /fingerprint /card is verified successfully.
