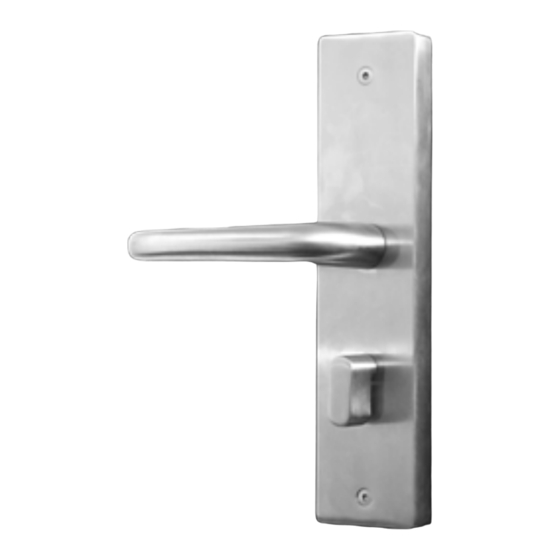

- Page 1 Installation instructions Dialock DT Lite Installation instructions ..........2...
-
Page 2: Installation Instructions
Installation instructions 1. Notes on these installation instructions 1.1 Contents and It is essential to pay attention to these instructions in order to install the product target group of the successfully and safely. Please pay attention to all of the specified installation steps, instructions and notes! instructions These installation instructions are intended for:... -
Page 3: Check Scope Of Delivery
2.2 Installation Door leaf conditions • Possible door leaf thicknesses: 38 - 80 mm, • Possible door materials: Wood and wooden materials, metal only after prior consultation with Häfele. Mortise • The mortise must be present, and must comply with the dimensioned drawing “Installation requirements“... -
Page 4: Installation Description
WARNING Risk of fatality due to failures or faults in electromagnetically sensitive devices! The electromagnetic radiation of the product can cause faults in sensi- tive parts (e.g. in medical equipment). The functionality thereof will be adversely affected. > Do not mount product close to electromagnetically sensitive devices. - Page 5 Scope of delivery...
- Page 6 Installation requirements 140 mm 70 mm 29 mm 31 mm 26 mm...
- Page 7 Installation...
- Page 8 Pay attention to correct polarity!
- Page 10 Häfele GmbH & Co KG · Postfach/B.O. Box 1237 · D-72192 Nagold · Phone +49 (0) 74 52 / 95-0 · info@haefele.de · www.hafele.com...
