4. Connect the handswitch to the control box using the jack marked with
Do not connect the handswitch plug to the motor jacks!
Caution: Unplug the power cord of the control unit while mounting the
handswitch!

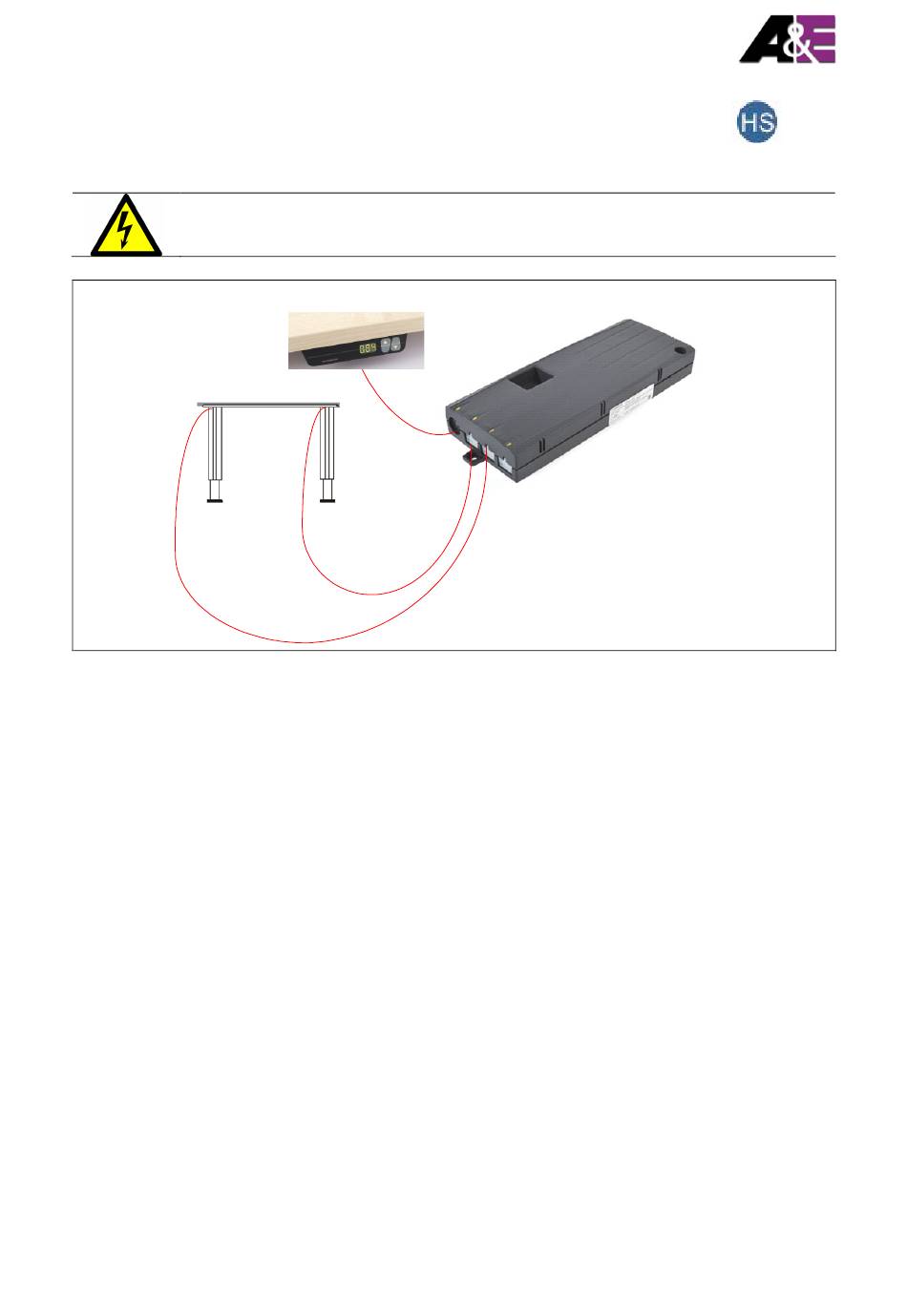

Figure 5: Connect the HSU cable-handswitch to the control box (e.g. COMPACT)
Page 7 / 11
only!
