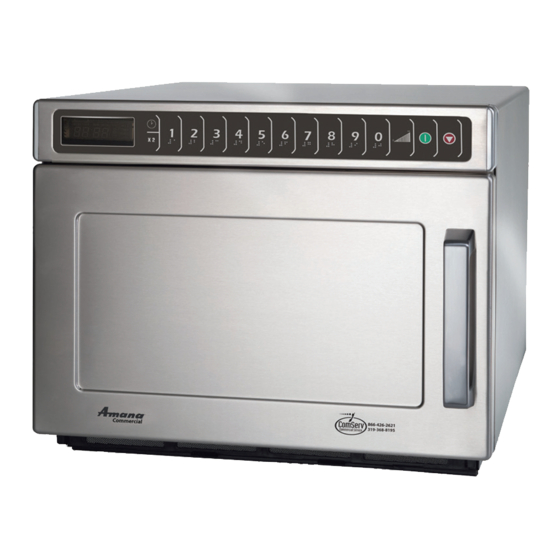

ACP Amana HDC18SD2 Quick Start & Reference Manual

CLEAN FILTER
CLEAN FILTER
This oven displays
at user defined intervals. When the
message displays ACP recommends
cleaning the air filter thoroughly.
Cleaning the air filter will not shut
off the message. The message will
stop displaying automatically after
24 hours. Depending on microwave
use and environmental conditions,
the filter may need to be cleaned
more frequently. Once the frequency
is determined, set the option for the
appropriate time frame.
Preprogrammed
Pads
To cook food using
preprogrammed cooking sequences.
1. Open oven door and place
food in oven. Close door.
2. Press desired pad.
3. Oven begins to cook.
4. At end of cooking cycle oven
beeps and shuts off.
X2 Programming
2
(some models)
To change the cooking factor:
1. Open oven door.
2. Press and hold pad 1 for
approximately 5 seconds.
3. Press pad to be reprogrammed.
4. Press the X2 pad.
5. Press a numbered pad to
change the cooking factor.
• Cooking factor can be set from
10% to 100%.
• Default is 80%.
• Pad 5 would change the
cooking factor to 50%.
6. Press START pad to save
changes.
The switching operation of this microwave oven can cause voltage fluctuations on the supply line. The operation of this oven under unfavorable voltage supply
conditions can have adverse effects. This device is intended for the connection to a power supply system with a maximum permissable system impedance
Zmax of 0.31 Ohms at the interface point of the user's supply. The user has to ensure that this device is connected only to a power supply system which fulfills
the requirement above. If necessary, the user can ask the public power supply company for the system impedance at the interface point.
Quick Start Reference Guide
Refer to Product Safety Manual for Safety Statements
Complete Owner's Manual available online
Time Entry
Manual Operation
To cook food using a specific entered time and power level.
1. Open oven door and place food in oven. Close door.
2. Press TIME ENTRY pad and enter cooking time.
3. Press POWER LEVEL pad to program level of microwave power if desired.
• For a lower microwave power, press pads 1 (for 10%),
through 9 (for 90%), or 0 for no microwave energy.
NOTE: Press POWER LEVEL pad once to return to 100% microwave
power.
4. Press START pad.
5. At end of cooking cycle oven beeps and shuts off.
Programming Items
1. Open oven door.
2. Press and hold pad 1 for approximately 5 seconds.
3. Press pad to be reprogrammed.
4. Enter cooking time by using the number pads.
5. Press POWER LEVEL pad to program level of microwave power if desired.
• For a lower microwave power, press pads 1 (for 10%),
through 9 (for 90%), or 0 for no microwave energy.
NOTE: Press POWER LEVEL pad once to return to 100% microwave
power.
6. Press TIME ENTRY pad to add up to four additional cooking stages.
• Total cooking time cannot exceed 60 minutes.
• Enter cook time and power level as in steps 4 and 5.
7. Press START pad to set new programming changes to the pad.
NOTE: To discard changes, press STOP/RESET pad or close oven door.
X2 Pad (some models)
1. Open oven door and place food in oven. Close door.
2. Press X2 pad.
3. Press desired preprogrammed pad or pad sequence.
4. Oven begins cooking. Displayed cooking time is the total of original
cooking time and added X2 time.
Oven Clearances
A—For North American (UL/CSA) models, allow at
least 7" (17.8 cm) of clearance around top of oven.
For International (50 Hz) models, allow at least 7"
(17.8 cm) of clearance around top of oven. Proper
air flow around oven cools electrical components.
With restricted air flow, oven may not operate
properly and life of electrical parts is reduced.
/
B—Allow at least 2 9 " (6.5 cm) between air
16
discharge on back of oven and back wall.
C—Allow at least 7" (17.8 cm) around sides of oven.
