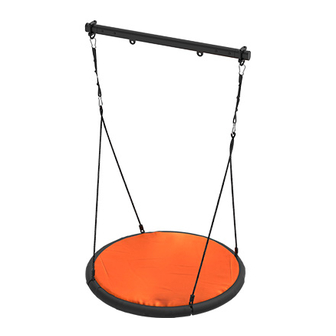

Vuly Nest Swing Large Assembly Manual

Nest Swing – Large
PRE-INSTALLATION
WARNING!
1
STEP
Remove a Locking Bolt from both Rail Brackets and slip
A.
them over the Swing Rail where you want to attach your
Nest Swing.
Ensure that they are 1.2 m apart.
Reinsert the Locking Bolts and tighten the bolts firmly
B.
– until you notice the rubber beginning to squeeze – to
secure the Rail Bracket.
You must attach your Nest Swing - Large only in the configurations shown below - to a
Medium or Large swing set configuration with capacity for two or three standard swings
side by side.
You must not attach onto a Small swing set (with capacity for only one standard swing).
ASSEMBLY MANUAL
2
STEP
Insert each Tube into the foam that's inside the four
separate sections around the rim of the Base Material.
Hold the foam as you do so, to ensure that it doesn't slide
out of the base material.
Ensure that male and female ends of adjacent Tubes are
next to each other and that you have not pushed the foam
out of the Base Material.
