ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber
mallet .

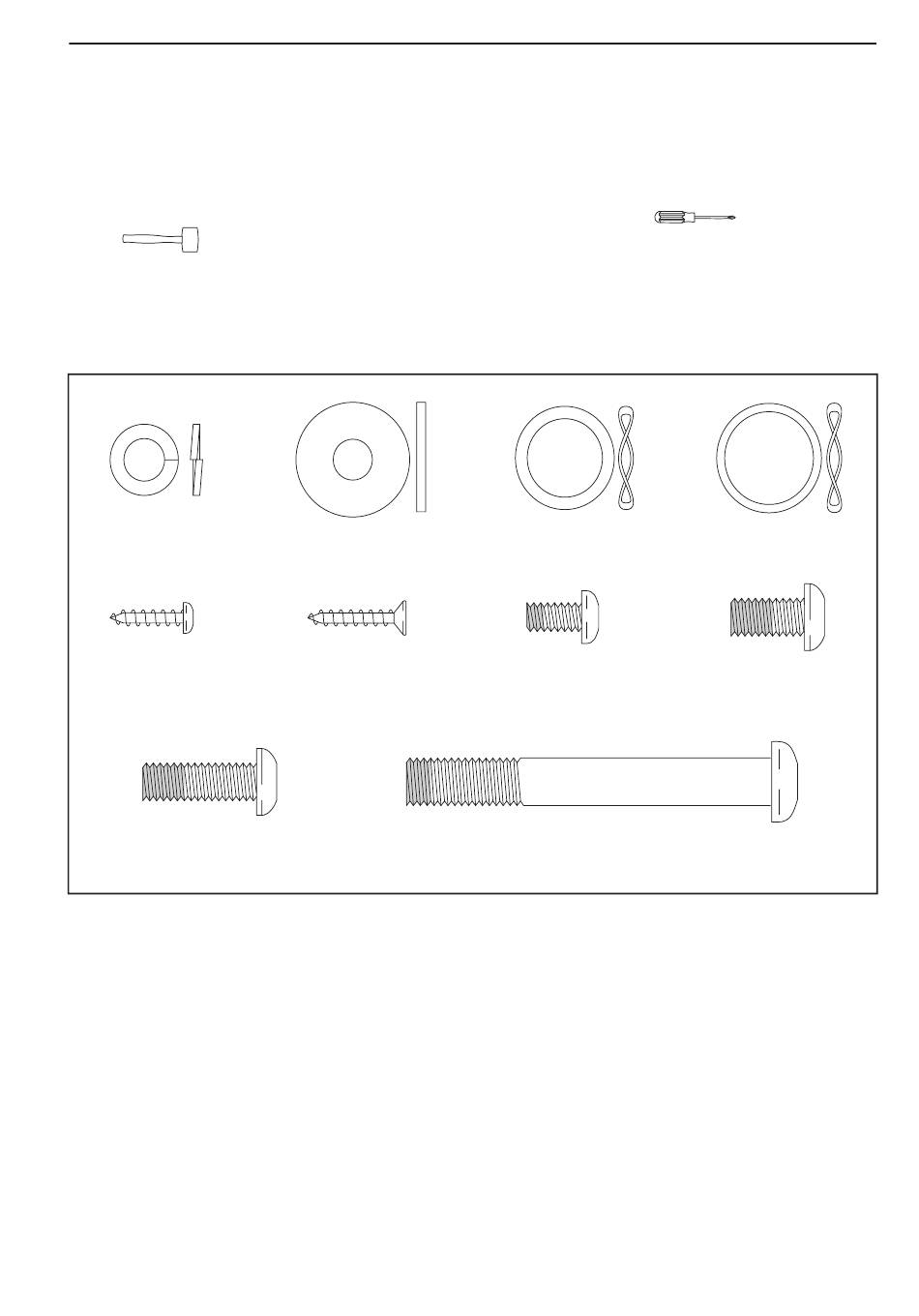

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled. To avoid damaging parts, do not use power tools.
M8 Split Washer
M8 x 25mm
Small Wave Large Wave
(103)–14
Washer (45)–6 Washer (118)–2 Washer (116)–2
M6 x 12mm M8 x 16mm Patch
M4 x 16mm M4 x 19mm
Patch Screw Screw (102)–18
Screw (93)–12 Flat Head
(111)–8
Screw (117)–1
M10 x 80mm Patch
M8 x 25mm Patch
Screw (113)–2 Screw (100)–4
