Pro-Form 405 CE Rear Drive User Manual page 8

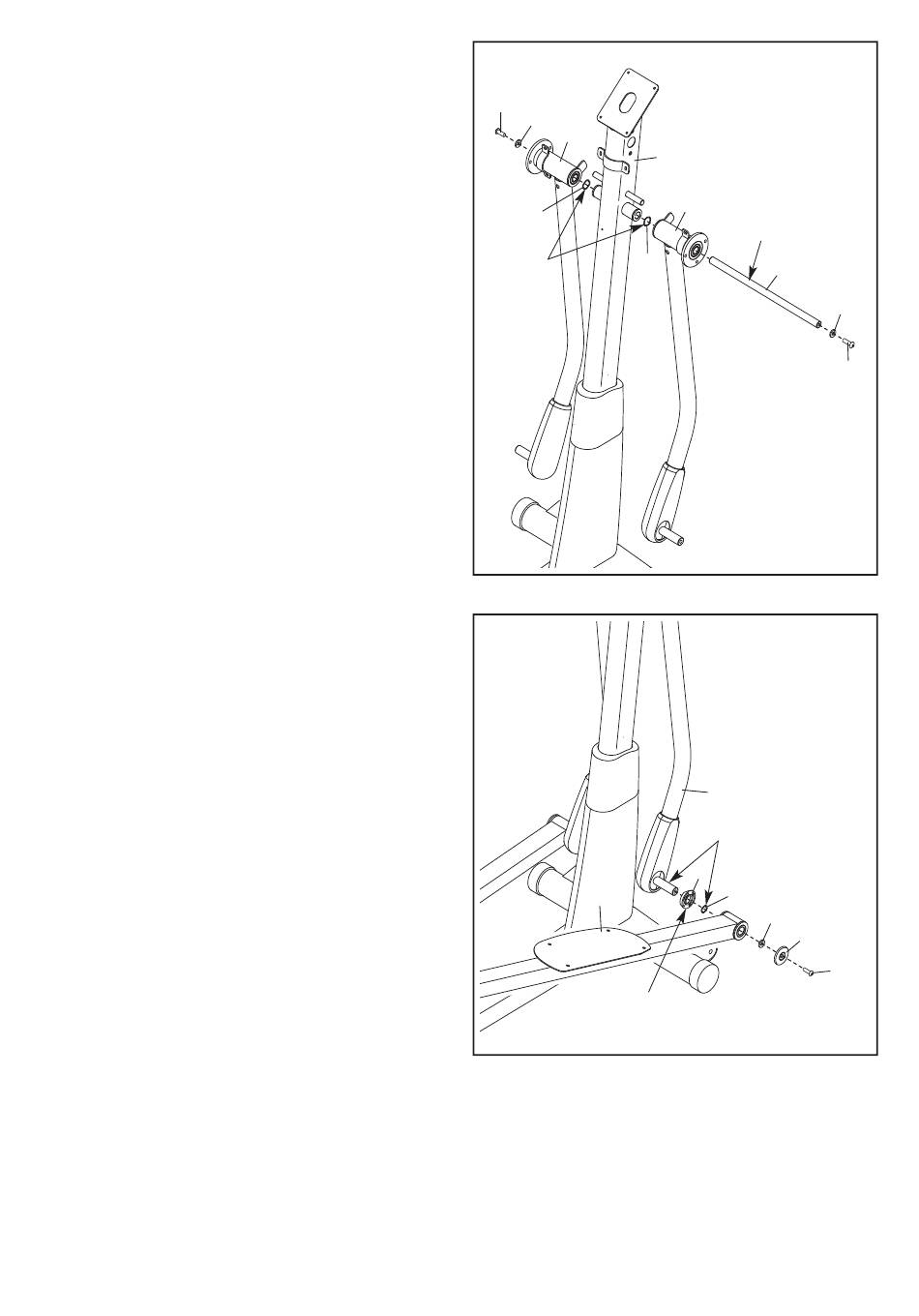

5. Apply a generous amount of the included
grease to the Upright Axle (48) and to two Small
Wave Washers (118).
Insert the Upright Axle (48) into the Upright (5)
and center it. Slide a Small Wave Washer (118)
onto each end of the Upright Axle.
Identify the Right and Left Upper Body Legs (6,
7), which are marked with "Right" and "Left"
stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the Upright Axle (48).
Tighten two M8 x 16mm Patch Screws (102)
with M8 x 25mm Washers (45) into the ends of
the Upright Axle (48) at the same time. Firmly
tighten the Patch Screws.
6. Apply grease to the axle on the Right Upper
Body Leg (6) and to a Large Wave Washer
(116).
Slide a Leg Spacer (55) and the Large Wave
Washer (116) onto the Right Upper Body Leg
(6). Make sure that the flat side of the Leg
Spacer is facing outward.
Identify the Right Pedal Arm (12), which is
marked with a "Right" sticker, and orient it as
shown. Slide the Right Pedal Arm onto the
Right Upper Body Leg (6).
Attach the Right Pedal Arm (12) with an M8 x
16mm Patch Screw (102), an Axle Cover (56),
and an M8 x 25mm Washer (45).
Repeat this step on the other side of the
elliptical.
All manuals and user guides at all-guides.com
8
5
102
45
7
118
118
Grease
6
12
Flat Side
5
6
Grease
48
6
Grease
55
116
45
56
102
45
102
