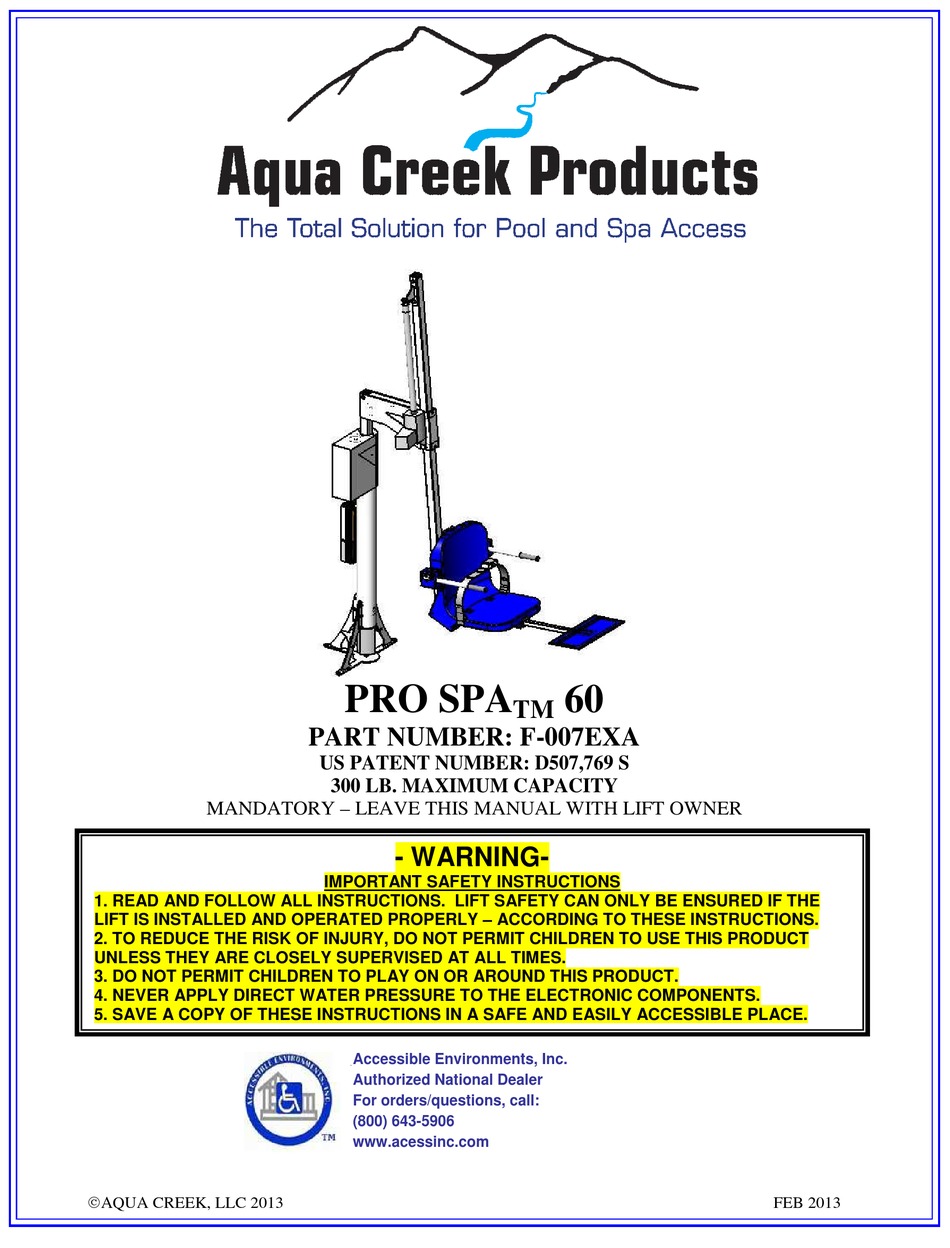

MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE
LIFT IS INSTALLED AND OPERATED PROPERLY – ACCORDING TO THESE INSTRUCTIONS.
2. TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3. DO NOT PERMIT CHILDREN TO PLAY ON OR AROUND THIS PRODUCT.
4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS.
5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE.
AQUA CREEK, LLC 2013
PRO SPA
PART NUMBER: F-007EXA
US PATENT NUMBER: D507,769 S
300 LB. MAXIMUM CAPACITY
- WARNING-
IMPORTANT SAFETY INSTRUCTIONS
AQUA CREEK PRODUCTS
Accessible Environments, Inc.
Authorized National Dealer
9889 GARRY MORE LANE
MISSOULA, MT 59808
For orders/questions, call:
1-888-687-3552
(800) 643-5906
FAX: 406-549-2602
www.acessinc.com
60
TM
FEB 2013
Advertisement
Table of Contents
Related Manuals for Aqua Creek PRO SPA 60
Summary of Contents for Aqua Creek PRO SPA 60
- Page 1 5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE. AQUA CREEK PRODUCTS Accessible Environments, Inc. Authorized National Dealer 9889 GARRY MORE LANE MISSOULA, MT 59808 For orders/questions, call: 1-888-687-3552 (800) 643-5906 FAX: 406-549-2602 www.acessinc.com AQUA CREEK, LLC 2013 FEB 2013...
-
Page 2: Parts List
2.) Clip the battery to the charger and allow the battery to charge. When the battery is correctly mounted to the charger, the CHARGE light will illuminate. When the battery is fully charged, the CHARGE light will GO OFF. 3.) Go to the next section “PRO SPA 60 ASSEMBLY”. - Page 3 (1) 5/16” nylock nut as shown in FIGURE 1. Tighten the nut until snug. PRO SPA 60 WIRING: Y-CONNECTOR The Pro Spa 60 uses two electric actuators to lift the seat and these actuators are wired together using a special y-connector.
- Page 4 ANCHOR INSTALLATION INSTRUCTIONS Before installing the anchors, it is necessary to determine where you want to place the lift on your deck. You will want to locate the lift as close to the outside wall of your pool/spa as possible to ensure that the seat arm clears your spa/pool wall. As shown in figure 1 below, the lift must be a minimum 3 ½...
- Page 5 INSTALLING THE LIFT 1.) Once the anchors have been installed, you can now install the lift. Position the lift over the anchors as shown in figure 3. 2.) Using the supplied hardware, secure the lift to the deck as shown in figure 3. 3.) Attach the supplied safety belt to the chair by opening each end of the belt and looping the ends through the slots on either side of the chair as shown in figure 3.
- Page 6 ADJUSTING SEAT ANGLE: The angle of the seat arm is adjustable to provide additional clearance from the spa wall. Adjust the angle of the seat arm assembly by loosening the 3/8” jam nut and adjusting the 3/8” bolt at the base of the lifting plates (top of lifting arm).
- Page 7 Now take the handheld controller and press the “up” arrow at the top of the controller. The lift should start to move up smoothly. Continue holding the “up” arrow button until you have cleared the pool/spa wall. Once the user has cleared the pool/spa wall vertically, press either of the lower buttons on the handheld controller to rotate over the pool/spa wall.
-
Page 8: Lift Operation
NOT SEATED SEATED LIFT OPERATION: Before operating the PRO SPA 60 lift for the first time, the user or operator should become familiar with the Handset Control and its functions. The figure to the left gives a quick explanation of the four buttons and their function. For example, to move the lift UP, press the top left button with the ▲... -
Page 9: Care Of Your Lift
CARE OF YOUR LIFT Routine cleaning is an absolute necessity to ensure the integrity of the lift. Note that the Aqua Creek Pool Lift should not be stored in a pump room or in a storage room where pool chemicals are kept. Storing the lift near pool chemicals may cause rusting and other damage to occur. -
Page 10: Belt Tightening
BELT TIGHTENING: The drive belt should be checked periodically to ensure it is tight, to ensure that the lift rotates properly. To check the drive belt remove the motor shroud (see parts section) and check that the drive belt is snug and does not slip when the lift is rotated. If the belt slips or does not seem tight, tighten the belt using a pry-bar and a combination wrench as shown. - Page 11 AQUA CREEK PRODUCTS 24V SPA/PRO SPA LIFT TROUBLESHOOTING GUIDE Before troubleshooting make sure the battery is fully charged. If the lift doesn’t move when the handset button is pressed: When you can’t get the lift to move check the following things: Make sure the battery is fully charged: A.
- Page 12 If the battery is fully charged and the lift is not moving then: Check all cords: A. Check that the cords are properly plugged in. Start by unplugging the remote and the actuator cord from the control box. Once these cords are removed check the ends for corrosion or damage.
- Page 13 If the lift stops moving over the water and is stuck: 4. Then try pushing the emergency button: A. If the lift gets stuck out over the water use a pen or pencil tip and stick it into the emergency button on the front of the control box to retract the lift.
- Page 14 EXPLODED VIEW PRO SPA 60...
- Page 15 PRO-SPA 60 PARTS LIST ITEM NO. QTY PART NUMBER DESCRIPTION 1 SPA/PSPAWM-SA-0904SBA SPA/PRO SPA BASE WELDMENT 1 40WM-A-1050PSH PRO SPA CYLINDER WELDMENT 1 SPA/PSPA-SA-1004SPS SPA/PRO SPA PISTON ASSEMBLY 1 PRO-SPA-60 UPPER ARM PRO-SPA-60 UPPER ARM ASSEMBLY 1 PRO-SPA-60 CHAIR ARM PRO-SPA-60 CHAIR ARM ASSEMBLY 1 A-0204SCR-B SPA/PRO SPA CONNECTING ROD...
-
Page 16: Seat Assembly Parts List
SEAT ASSEMBLY PARTS LIST ITEM NO. QTY. PART NUMBER DESCRIPTION 1 P-901 CHAIR, BLUE ROTOMOLDED (18" WIDE) 2 P-2100FLA-A ARMREST TUBE 1 P-1208HSB HANDSET BRACKET, HDPE 2 RUBBER HAND GRIPS RUBBER HAND GRIPS, BLACK 2 SCREW, #12 X3/4 FHSMS #12 X3/4" FLAT-HD SHEET-METAL SCR SS 4 FLAT WASHER, 1/4 SS 1/4"... - Page 17 SPA 60 LIFT. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within thirty (30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase will be notified of Aqua Creek’s decision regarding the claim.
