Install the Voice
RCU app from the
1
Google Play Store.
Trackpad sockets
OFF
LEDs
Power switch
Make sure the power switch is in the POWER ON position.

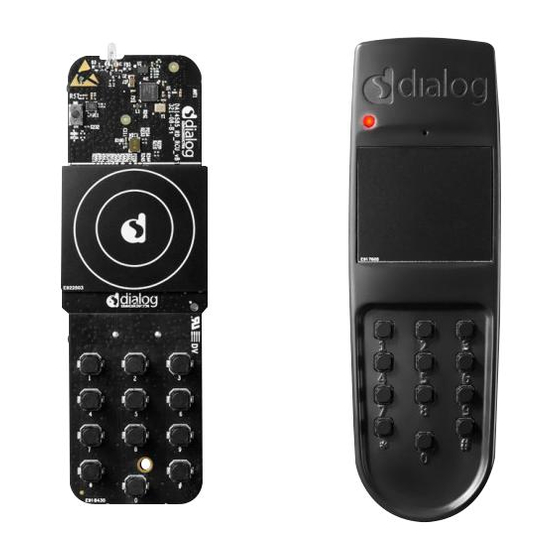

DA14585 Voice RCU
Quick Start Guide
Install 2 AAA batteries
(not included) in the
2
battery enclosure.
'#' button
ON
PTT
3
Push To Talk
The LEDs indicate the state of the RCU.
RCU state
RCU connected
RCU disconnected
RCU advertising
Run the app on your
Battery low
mobile and use the Scan
Motion active
screen to select and
connect your RCU.
Motion Mouse On
Motion Mouse Off
Press "#" on the RCU to toggle between the MOUSE
and KEYPAD mappings and test the keyboard.
Indication
Green LED blinks once
Green LED blinks 3 times
Red LED is on for 0.5 second every second
Red LED blinks briefly every 2 seconds
Green LED blinks once every second
4
Invoke the app menu
and select "Sound"
to test the audio
5
6
functionality.
Revision 1.0
Advertisement
Table of Contents
Related Manuals for Dialog Semiconductor SmartBond DA14585
Summary of Contents for Dialog Semiconductor SmartBond DA14585
- Page 1 DA14585 Voice RCU Quick Start Guide The LEDs indicate the state of the RCU. RCU state Indication Green LED blinks once RCU connected Green LED blinks 3 times RCU disconnected Red LED is on for 0.5 second every second RCU advertising Run the app on your Battery low Red LED blinks briefly every 2 seconds...
- Page 2 DA14585 Voice RCU Quick Start Guide Select the required The bitrate is You may use the disk bitrate. When updated while and play buttons to save "Automatic" is When "Live Capture" audio is captured. and play back the audio. chosen, the bitrate is chosen, you may This icon appears when adapts dynamically.
