FOR SERVICE TECHNICIAN'S USE ONLY

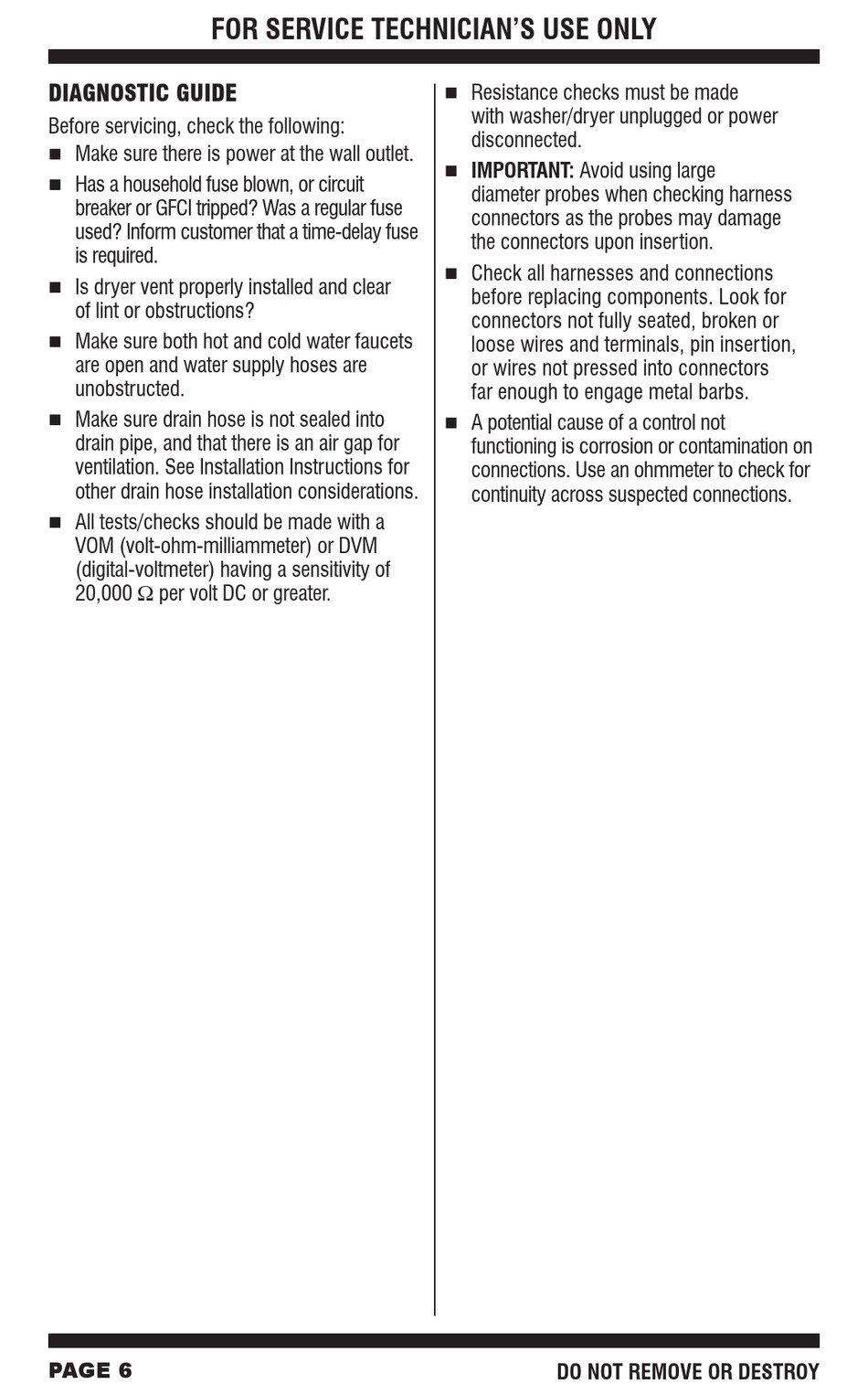

DIAGNOSTIC GUIDE

Before servicing, check the following:
Make sure there is power at the wall outlet.
Has a household fuse blown, or circuit
breaker or GFCI tripped? Was a regular fuse
used? Inform customer that a time-delay fuse
is required.
Is dryer vent properly installed and clear
of lint or obstructions?
Make sure both hot and cold water faucets
are open and water supply hoses are
unobstructed.
Make sure drain hose is not sealed into
drain pipe, and that there is an air gap for
ventilation. See Installation Instructions for
other drain hose installation considerations.
All tests/checks should be made with a
VOM (volt-ohm-milliammeter) or DVM
(digital-voltmeter) having a sensitivity of
20,000 Ω per volt DC or greater.
PAGE 6
Resistance checks must be made
with washer/dryer unplugged or power
disconnected.
IMPORTANT: Avoid using large
diameter probes when checking harness
connectors as the probes may damage
the connectors upon insertion.
Check all harnesses and connections
before replacing components. Look for
connectors not fully seated, broken or
loose wires and terminals, pin insertion,
or wires not pressed into connectors
far enough to engage metal barbs.
A potential cause of a control not
functioning is corrosion or contamination on
connections. Use an ohmmeter to check for
continuity across suspected connections.
DO NOT REMOVE OR DESTROY
