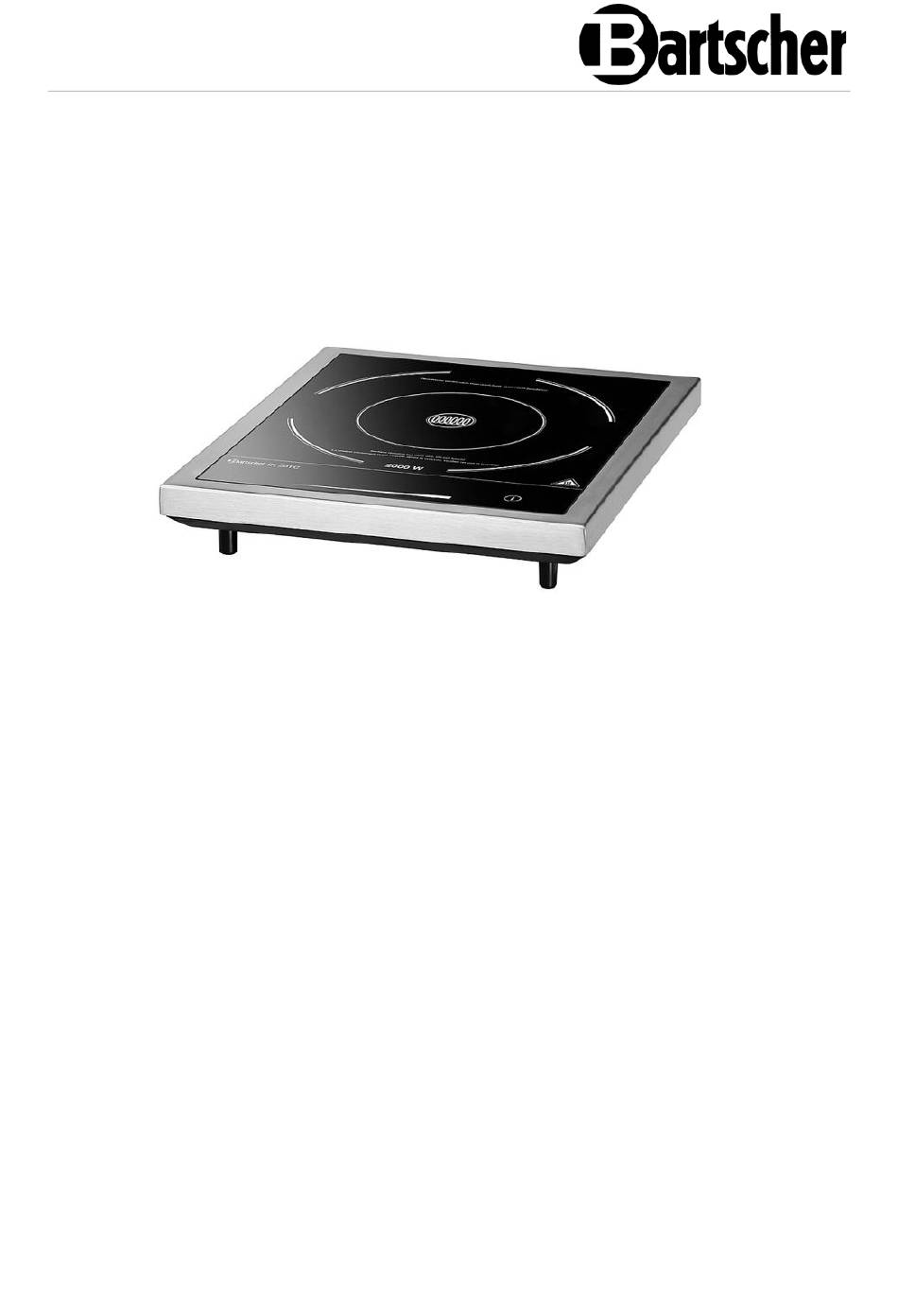

- Page 1 IK 20TC 105848...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 2.0 Date of preparation: 2024-06-10...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Safety of Induction Plate Operation • During operation, the heating area is getting very hot. Information: Induction cooker does not generate heat in the process of cooking. Nevertheless, the temperature of cookware heats up the heating area and the surface remains hot after use. Do not touch any hot surfaces of the appliance.
- Page 8 Safety Electromagnetic Fields • Magnetized items, e.g. credit cards, data storage devices or calculators, may not be placed in an immediate vicinity of the switched on appliance. Magnetic field might damage them. • Do not open the bottom cover! • Cookware should always be placed in the middle of the cooking area, so that pot bottom covered the electromagnetic field to the maximum extent.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. The appliance is not designed for continuous operation in industrial applications. -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Induction cooker IK 20TC 105848 Art. No.: Material: stainless steel Heating plate material: glass Number of hobs: Glass hob dimensions (W x D), in mm: 285 x 345 Hob diameter, in mm: Number of power output levels: Max. -
Page 13: List Of Components Of The Appliance
Technical Data • Cookware detection • Overheating protection • Digital display • ON/OFF switch • Indicator light: ON/OFF • Lock button (child safety lock) List of Components of the Appliance Fig. 1 1. Housing 2. Heating plate 3. Touch control panel with digital display 4. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 To obtain better results, use only pans/pots with a diameter of 12–26 cm. Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm...
- Page 17 Installation and operation Not Suitable Cookware • Containers with bulged bottoms • Aluminium, brass, copper cookware unless they are clearly indicated as suitable for induction • Pots/pans with a diameter below 12 cm • Cookware with feet • Ceramic cookware •...
- Page 18 Installation and operation Functions of Operating Elements and Displays Fig. 2 1. Operation Mode Display – here the display shows information about the operation mode (power, power + time, temperature, temperature + time) 2. Digital display of power output value, time or temperature –...
- Page 19 Installation and operation 8. Control bar – by touching and sliding to the right or to the left you can adjust (increase or decrease) the set power output, temperature or time 9. Function selection button – by pressing this button you can select the operation modes (power, power + time, temperature, temperature + time) Appliance start-up CAUTION!
- Page 20 Installation and operation Settings HINT! To steam or cook food (max. temperature of 170°C) select one of the output levels. To fry or deep-fry food (max. temperature of 240°C) select one of the temperature settings (60°C – 240°C). With every subsequent press of the function selection button you can select another operation mode, in the sequence listed below: Temperature +...
- Page 21 Installation and operation 2. If the device is in the power mode, by pressing the control bar and sliding to the left or to the right, you can change the settings any time within the range from 500 W to 2000 W. There are 8 possible power settings: 500 W, 700 W, 900 W, 1100 W, 1300 W, 1500 W, 1700 W, 2000 W The digital display shows the selected power value.
- Page 22 Installation and operation Operating mode: Temperature 1. Press the function selection button to switch to the temperature mode. The display ‘Temp’ is on and the digital display shows the factory set temperature 200°C. 2. With your finger press the control bar and slide to the left or to the right, to set the temperature.
- Page 23 Installation and operation HINT! The induction cooker will switch off automatically if within 2 hours no further value set or the time is set to over 120 minutes. Lock button 1. Press the lock button for 3 seconds to lock the control panel. The acoustic signal is heard, the indicator light above the lock button is lit and is on for as long as the control panel is locked.
-
Page 24: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 25: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
