ECS LIVA Z User Manual

Chapter 1
Introducing the PC
Introduction

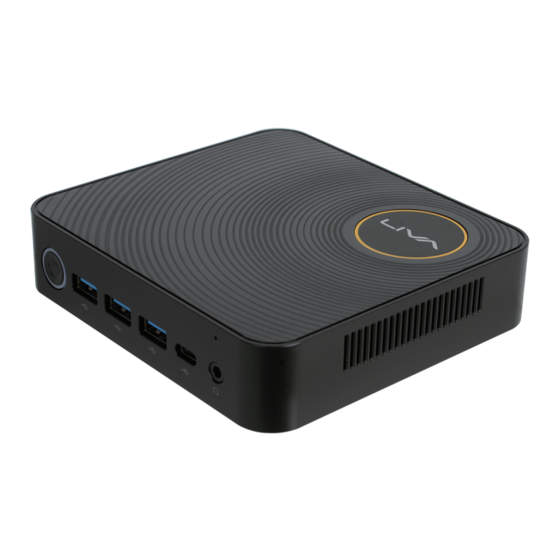

Thank you for choosing LIVA Z Mini PC featuring APLD-MINI of great
performance and with stylish and flexible design.
®
This mini PC is based on Intel Apollo lake Mobile platform. This
latest Core-M processor is a multi-core system-on-a-chip (SoC) that
®
integrates the next generation Intel processor core, graphics,
memory, and I/O interfaces into one solution. Two M.2 slots are for
extending usage. It implements three Type-A USB 3.0 ports and one
Type-C USB 3.0 port and one USB 2.0 header supports two USB 2.0
ports at the front panel.
It supports DDR3L up to 8 GB Dual-channel SO-DIMM memory. It
also can add additional storage from M.2 SSD and USB Flash Drive.
The system is equipped with a set of I/O ports at the rear panel,
including one DC_IN port (19V), one HDMI port, one mini Display
port, two Giga LAN connectors.
