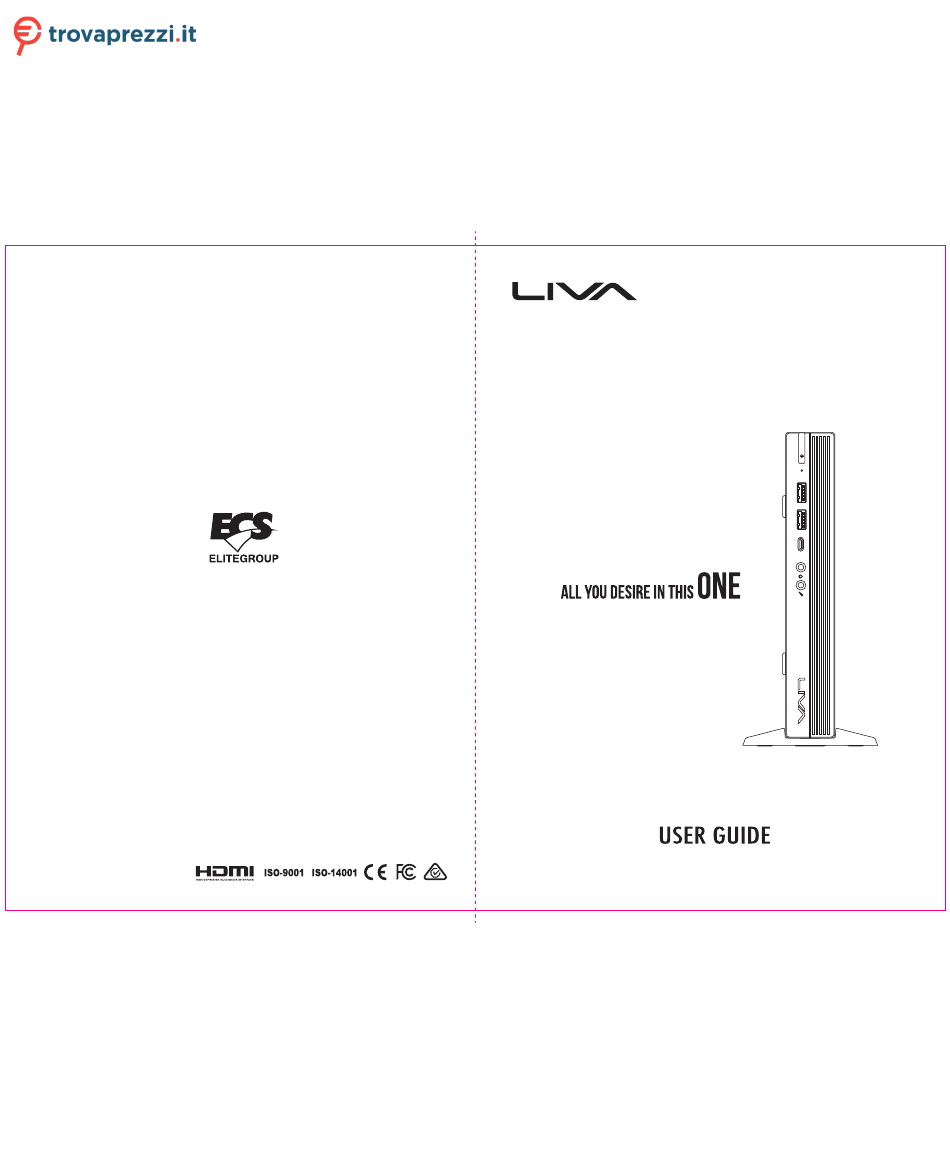

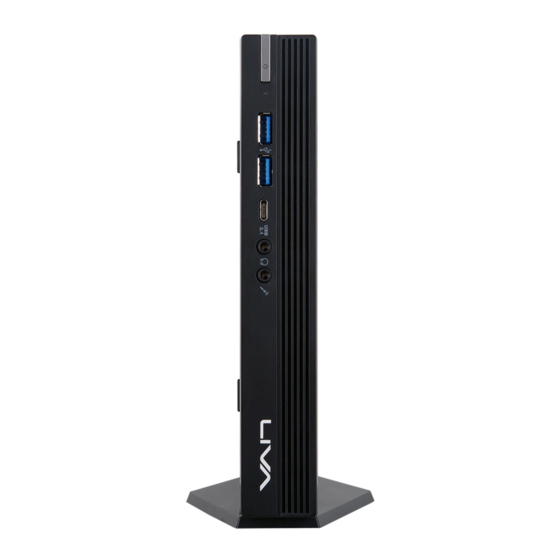

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per ECS LIVA One H310C 95-433-MP6000 o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation ® Version:1.0...
- Page 2 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. LIVA One H310C USER MANUAL...
- Page 3 Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. LIVA One H310C USER MANUAL...
- Page 4 The system does not function properly even if you follow the operating instructions. • The system was dropped or the cabinet is damaged. • The system performance changes The warranty does not apply to products that have been disassembled by users LIVA One H310C USER MANUAL...
- Page 5 4. Do not block the air vents to this product or impede the airflow in any way. Manufactured and Imported by Elitegroup Computer Systems Co., Ltd No.239, Sec.2, Tiding Blvd., Taipei, Taiwan 11493 +886-2-2162-1177 LIVA One H310C USER MANUAL...
-
Page 6: Table Of Contents
Tweak Menu...............29 Security Menu..............35 Boot Menu................36 Exit Menu................37 Updating the BIOS.............38 39 39 Chapter 4 Using the Software About the Software DVD-ROM/CD-ROM........39 Auto-installing under Windows 10........39 Running Setup..............40 Manual Installation.................42 ECS Utility Software (Intelligent EZ Utility)..........42 LIVA One H310C USER MANUAL... - Page 7 Chapter 5 43 43 43 43 Trouble Shooting Start up problems during assembly..........43 Start up problems after prolong use..........44 Maintenance and care tips............44 Basic Troubleshooting Flowchart..........45 LIVA One H310C USER MANUAL...
-
Page 8: Introducing The Pc
(working with a 90Watt power adaptor), and space saving. The chipset is Intel H310, supporting up to 32 GB of system memory with DDR4 memory SO- ® DIMM, 2.5” SATA III HDD, 2 independent displays. LIVA One H310C USER MANUAL... -
Page 9: Specification
• 1 x DC-IN Adapter • Adapter DA-90F19, 19V, 4.74A, 90W, APD OS Support • Hardware Compatible with Windows 10 64bit / Linux Kensington lock • Supported Dimensions (mm) • 205mm * 176mm * 33mm LIVA One H310C USER MANUAL... -
Page 10: Front And Rear I/O
USB 3.1-compatible devices. 4. USB 3.1 Gen1 Type-C The USB 3.1 connector is used for USB 3.1 devices. Connector (5V, 0.9A) 5. Headphone Jack Connecting Headphone. 6. Mic In Jack Connecting Microphone. LIVA One H310C USER MANUAL... - Page 11 Connecting VGA Monitor. 13. DP Port You can connect display device to the DP port. 14. DP Port You can connect display device to the DP port. 15. DC Jack It is used for power adapter. LIVA One H310C USER MANUAL...
-
Page 12: Packing Contents
Packing Contents Driver DVD Stand Power NOTE: Please contact us immediately if any of the items is damaged or missing. LIVA One H310C USER MANUAL... - Page 13 Memo LIVA One H310C USER MANUAL...
-
Page 14: Installing The Pc
Installing the PC System Quick Installation 1. Connecting HDMI device. 2. Connecting VGA Monitor. (D-SUB Connector) 3. The USB connector is for attaching USB devices, such as mouse, keyboard, printer, scanner and other USB-compatible device. LIVA One H310C USER MANUAL... - Page 15 4. Connecting the Network. (LAN Connector) 5. Connecting the Microphone. (Microphone Jack) 6. Connecting Speakers or Headphones. (Headphone Jack) 7. Connecting Power. (DC jack) LIVA One H310C USER MANUAL...
-
Page 16: Using Bios
When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears: Press DEL to enter SETUP LIVA One H310C USER MANUAL... -
Page 17: Resetting The Default Cmos Values
Other options lead to dialog boxes that prompt you for information. Some options (marked with an icon ) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu. LIVA One H310C USER MANUAL... -
Page 18: Bios Navigation Keys
Double click: enter; Right click: exit. Default Select the default icon and press <Enter> or double click the left key of the mouse to display the screen. Then you can load optimized defaults or not. LIVA One H310C USER MANUAL... - Page 19 Select the advanced icon and press <Enter> or double click the left key of the mouse to display the screen. Exit Select the exit icon and press <Enter> or double click the left key of the mouse to display the screen. LIVA One H310C USER MANUAL...
-
Page 20: Main Menu
The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility. BIOS Version (18.11.20) This item shows the BIOS version. LIVA One H310C USER MANUAL... -
Page 21: Advanced Menu
F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit Onboard LAN Controller (Enabled) Use this item to enable or disable Onboard LAN controller. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL... - Page 22 CPU Fan Speed • Core Voltage • DIMM Voltage • +12V • +5VSB • +VCC Press <Esc> to return to the Advanced Menu page. TCC Activation Temperature (DTS) (88) This item shows the factory TCC activation temperature. LIVA One H310C USER MANUAL...
- Page 23 You must use an ATX power supply in order to use this feature. EUP Function (Enabled) This item allows user to enable or disable EUP support. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
- Page 24 F4: Save & Exit ESC/Right Click: Exit ACPI Sleep State [S3(Suspend to RAM)] This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default). Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
- Page 25 Use this item to enable or disable the maximum CPUID value limit, you can enables this item to prevent the system from “rebooting” when trying to install Windows NT 4.0. Intel (VMX) Virtualization Technology (Enabled) When disabled, a VMM cannot utilize the additional hardware capabilities provided by Vandorpool Technology. LIVA One H310C USER MANUAL...
- Page 26 Use this item to enable the CPU energy-saving function when the system is not running. Intel(R) Speed Shift Technology (Disabled) Use this item to enable or disable the Intel(R) Speed Shift Technology. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
- Page 27 This motherboard supports one SATA channel and one M.2 slot, each channel allows one SATA device to be installed. Use this item to configure each device on the SATA channel. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
- Page 28 Use this item to enable or disable all USB devices. Legacy USB Support (Enabled) Use this item to enable or disable support for legacy USB devices. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
- Page 29 F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit Super IO Chip (IT8613) This item shows the information of the super IO chip. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
- Page 30 This item allows you to enable or disable serial port. Device Settings (IO=3F8h; IRQ=4) This item shows the information of the device settings. Change Settings (Auto) Use this item to change device settings. Press <Esc> to return to the Super IO Configuration page. LIVA One H310C USER MANUAL...
- Page 31 Use this item to show the TPM2.0 UEFI Spec Version. Physical Presence Spec Version (1.3) Use this item to show the Physical Presence Spec Version. TPM 20 InterfaceType (TIS) Use this item to show the TPM 20 InterfaceType. LIVA One H310C USER MANUAL...
- Page 32 TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 devices, Auto will support both with default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. Press <Esc> to return to the Advanced Menu page. LIVA One H310C USER MANUAL...
-
Page 33: Chipset Menu
This item shows the information of the IGD (Internal Graphics Device) memory. DVMT/FIXED Memory (256M) When set to DVMT Mode, the graphics chip will dynamically allocate system memory as graphics memory, according to system and graphics requirements. Press <Esc> to return to the Chipset Menu page. LIVA One H310C USER MANUAL... - Page 34 This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case. Chassis Opened (No) This item indicates whether the case has been opened. Press <Esc> to return to the Chipset Menu page. LIVA One H310C USER MANUAL...
- Page 35 ESC/Right Click: Exit ME Control (Enabled) Use this item to enable or disable the ME Firmware. ME FW Version (11.8.55.3510) This item shows the ME FW version. Press <Esc> to return to the Chipset Menu page. LIVA One H310C USER MANUAL...
-
Page 36: Tweak Menu
+/- : Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit EIST (Enabled) This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Technology). LIVA One H310C USER MANUAL... - Page 37 Use this item to enable or disable the Limit 3 Override. If this option is disabled, BIOS will leave the default values for Power Limit 3 and power limit 3 time window. Press <Esc> to return to the CPU OverClocking Configuration page. LIVA One H310C USER MANUAL...
- Page 38 CPU Ratio (29) This item allows you to control CPU ratio. 1/2-Core Ratio Limit Override (29/29) Use these items to set the Core Ratio Limit Value. Press <Esc> to return to the Tweak Menu page. LIVA One H310C USER MANUAL...
- Page 39 /Click: Select Item tRDRD_dr Enter/Dbl Click : Select tRDRD_dd +/- : Change Opt. tRDRD_sg F1: General Help tRDRD_dg F2: Previous Values tWRWR_dr F3: Optimized Defaults tWRWR_dd F4: Save & Exit tWRWR_sg ESC/Right Click: Exit tWRWR_dg LIVA One H310C USER MANUAL...
- Page 40 Exit On Failure (MRC) (Enabled) Use this item to enable or disable the exit on failure (MRC). Mc Lock (Enabled) This item allows you to enable or disable capacity to lock MC registers or not. LIVA One H310C USER MANUAL...
- Page 41 This item shows the total memory. EIST (Enabled) This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Technology). Turbo Boost (Enabled) This item allows you to enable or disable turbo boost. LIVA One H310C USER MANUAL...
-
Page 42: Security Menu
Secure Boot state (Not Active) This item allows you to enable or disable the secure boot state. Secure Boot (Disabled) This item is used to control the secure boot flow, it shows only when system runs in User Mode. LIVA One H310C USER MANUAL... -
Page 43: Boot Menu
This item enables or disables to update system BIOS. Boot mode select (UEFI) Use this item to select boot mode. Boot Option #1 /2 /3 /4 /5 /6 /7 /8 These items show the boot priorities. LIVA One H310C USER MANUAL... -
Page 44: Exit Menu
This item enables you to save the changes that you have made as user defaults. Restore User Defaults This item enables you to restore user defaults to all the setup options. Boot Override Use this item to select the boot device. LIVA One H310C USER MANUAL... -
Page 45: Updating The Bios
BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically. This concludes Chapter 3. Refer to the next chapter for information on the software supplied with the motherboard. LIVA One H310C USER MANUAL... -
Page 46: Using The Software
Browse CD: Open Windows Explorer and show the contents of the support disk. Click “Setup” Click the “ Utilities” button to select and button to select and software install ECS Intelligent installation program. Utility. LIVA One H310C USER MANUAL... -
Page 47: Running Setup
The motherboard identification is located in the upper left-hand corner. Click Next. The following screen appears: Check the box next to the items you want to install. The default options are recommended. LIVA One H310C USER MANUAL... - Page 48 Windows 8.x/10 will appear below UAC (User Account Control) message after the system restart. You must select “Yes” to install the next driver. Continue this process to complete the drivers installation. LIVA One H310C USER MANUAL...
-
Page 49: Manual Installation
README.DOC) for information on installing the driver or software for your operating system. ECS Utility Software (Intelligent EZ Utility) ECS Intelligent EZ Utility provides friendly interfaces under Windows O.S, which makes your computing more easily and conveniently. These software(s) are subject to change at anytime without prior notice. Please refer to the support disk for available software. -
Page 50: Trouble Shooting
3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected. a. continuous 3 short beeps : memory not detected b. 1 long beep and 8 short beeps : VGA not detected LIVA One H310C USER MANUAL... -
Page 51: Start Up Problems After Prolong Use
6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices. LIVA One H310C USER MANUAL... - Page 53 Memo LIVA One H310C USER MANUAL...
